MB190UC-BL / MB190UC-BK / MB190UC-OR / MB190UC-GR / MB190UC-NG / MB190UC-YE
2 Rev. 03/16/05
Step 11: Assemble the brackets (Part #5) to the comfort grip
push handles (Part #6) then mount push handles and
brackets to both sides of the cart using the eight
stove bolts (Part #1b) provided. Finger tighten
at this time.
Step 12: Insert the remaining 8 stove bolts (Part #1a).
Step 13: Using 13mm socket completely tighten all fasteners!!
Step 14:
Insert spray can holder divider (Part #15) into provided
channel on the bottom shelf (Part #18).
ASSEMBLY INSTRUCTIONS

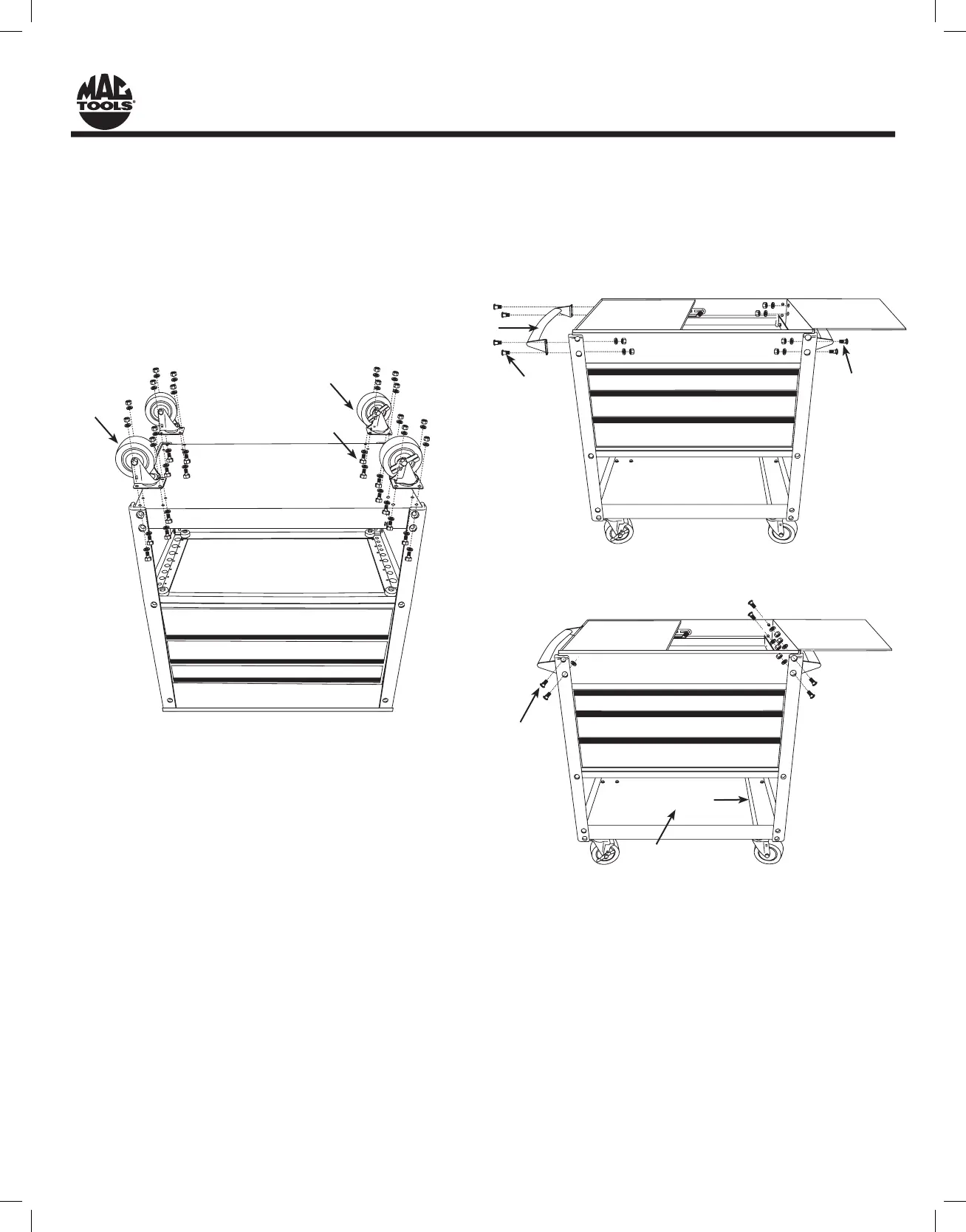

Step 8: Mounting casters: Put the four casters in place. The
two locking casters (Part #10) should be on one side
of the cart and the two non locking casters (Part #9)
should be on the other (Left or right side NOT front or
back). Using the 16 bolts (Part #8), washers and
fasteners (located in separate Caster bag) completely
tighten the casters to the bottom tray using a 13mm
socket and 14mm combination wrench for the bolt
head. (Note: Bolt head and one washer should be
on the inside of the bottom shelf, nyloc nut and one
washer will be on the caster side.)
Step 9: Carefully lift cart onto its casters
Step 10: Open sliding top using the key provided
(Step 11)
9
10
8
1a
18
15
5
1b
1b
MB190UC, -BK, -BL, -GR, -NG, -OR, -YE
3 Drawer Deluxe Utility Cart
