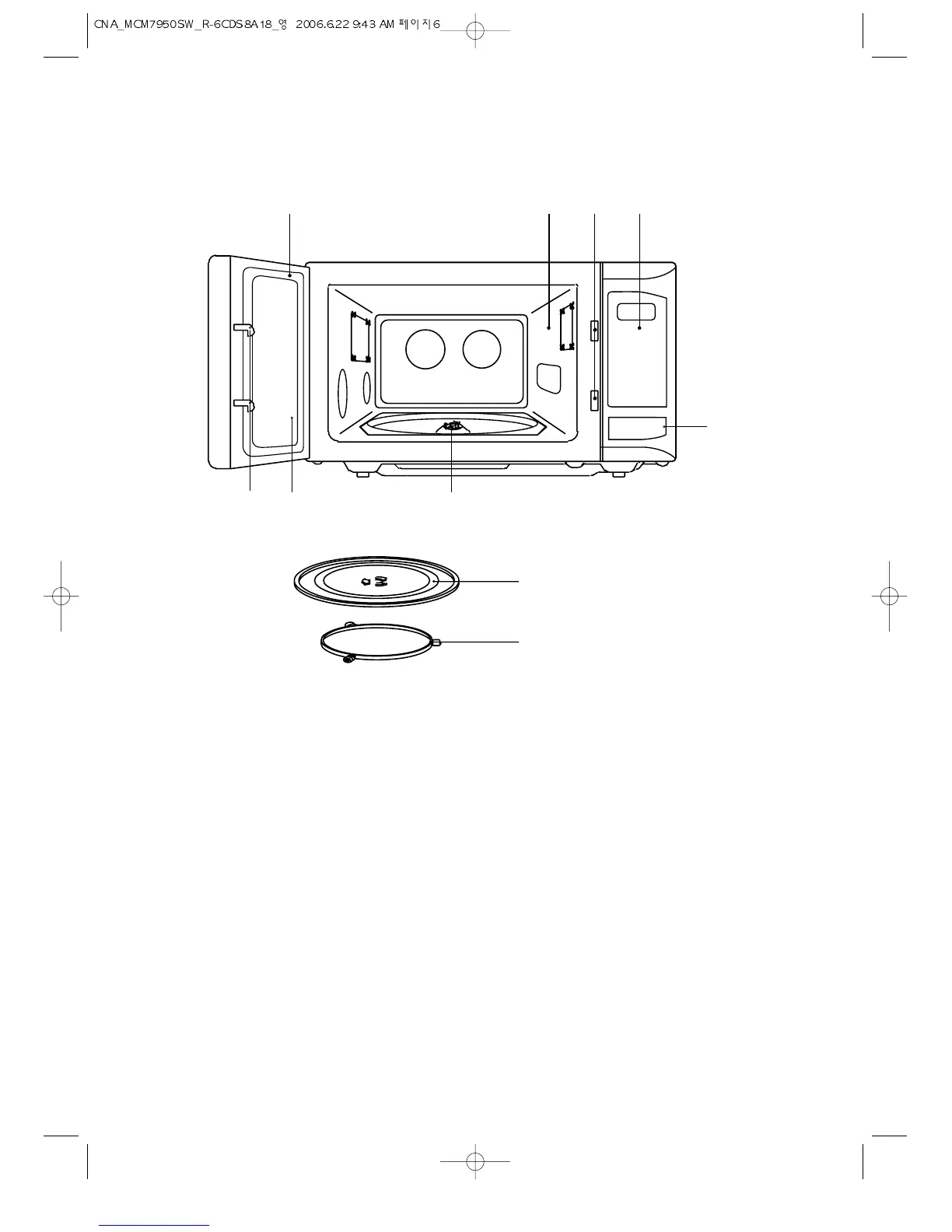

FEATURES DIAGRAM
11
Door seal - Door seal maintains the
microwave energy within the oven cavity
and prevents microwave leakage.
22
Oven cavity
33
Safety interlock system
44
Control panel
55
Door release button - By pushing this
button the latch system cut off all circuits
and stops the oven before the door is
opened.
66
Coupler - This fits over the shaft in the
centre of the ovens cavity floor. This is to
remain in the oven for all cooking.
77
Roller guide - This must always be used
for cooking together with the glass cooking
tray.
88
Glass cooking tray - Made of special heat
resistant glass. Food in a proper receptacle
is placed on this tray for cooking.
99
Door viewing screen - Allows viewing of
food. The screen is designed so that light
can pass through, but not the microwave.
00
Door latch - When the door is closed, it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron
will immediately stop operating.
