5. Turn test piece over and make Bend 3, Bend 4 and Bend 5 each to
90°
6. To complete the shape, the remaining piece is to be rolled around a
25mm diameter round bar of steel.
Select the 280 mm clamp -bar and place it, the test piece and the
round bar on the machine as shown under “ROLLED EDGE”
earlier in this manual.
Hold the round bar in position with the right hand and apply
pre-clamping by pressing and holding the START button with
the left hand.
Now use your right hand to pull the handle as if doing an
ordinary bend (the START button may be released). Wrap the
workpiece as far as possible (about 90°). Reposition the
workpiece (as shown under “Forming a Rolled Edge”) and wrap
again. Continue until the roll is closed.

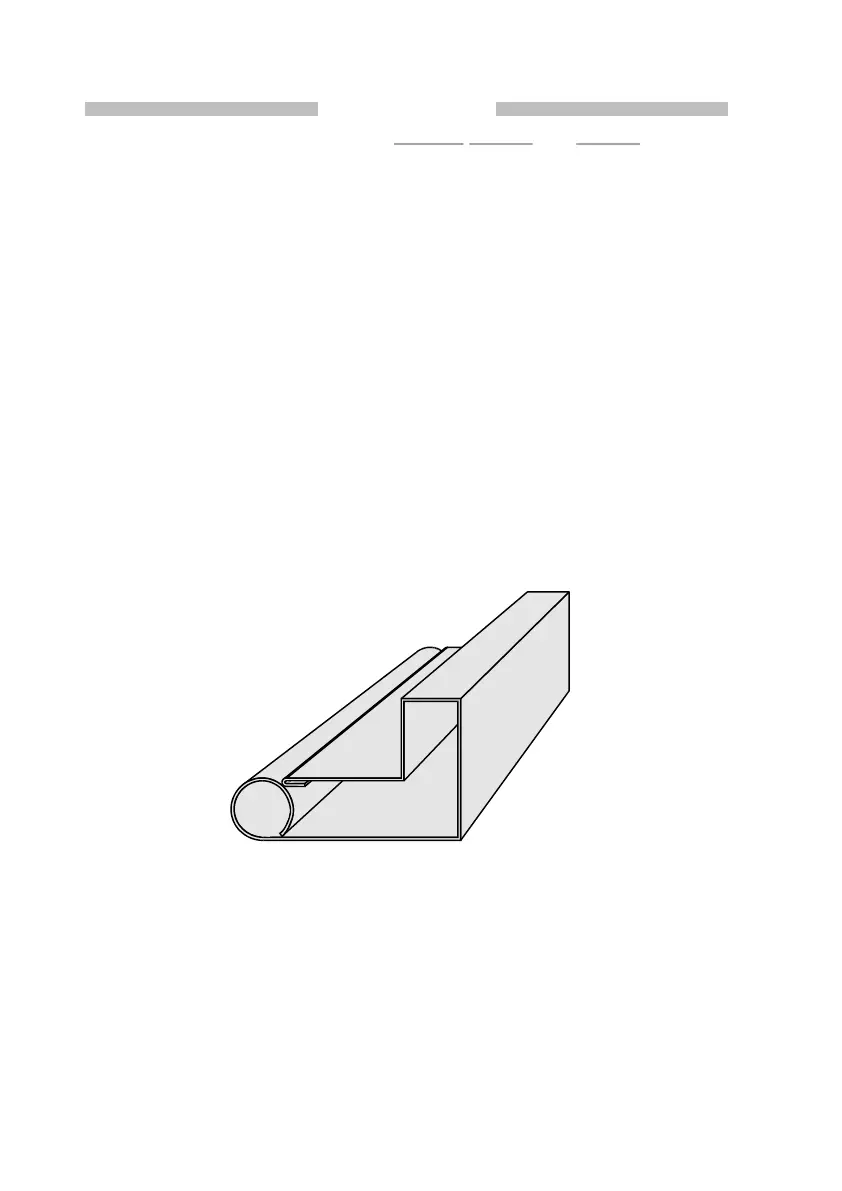

The test shape is now complete.
... TEST PIECE
