MAGNABEND 650E - Magnabend Specifications Overview; Nominal Capacity and Weight; Clamping Force and Electricals; Hinge Design and Bending Dimensions

To Next Page

To Previous Page

NOMINAL CAPACITY Machine Weight

Model 650E: 625 mm x 1.6 mm (2ft x 16g) 72 kg

Model 1000E: 1000 mm x 1.6 mm (3ft x 16g) 110 kg

Model 1250E: 1250 mm x 1.6 mm (4ft x 16g) 150 kg

CLAMPING FORCE

Total force with standard full -length clamp-bar (and zero non-magnetic gap

under the clampbar):

Model 650E: 3 Tonne

Model 1000E: 4.5 Tonne

Model 1250E: 6 Tonne

ELECTRICAL

1 Phase, 220/240 V AC

Current:

Model 650E: 4 Amp

Model 1000E: 6 Amp

Model 1250E: 8 Amp

Duty Cycle: 30%

Protection: Thermal cut-out, 70°C

Control: Start button ...pre-clamping force

Bending beam microswitch...full clamping

Interlock...the start button and the bending beam must be oper-

ated in correct overlapping sequence to initiate full -clamping force.

HINGES

Special centerless design to provide a completely open -ended machine.

Rotation angle: 180°

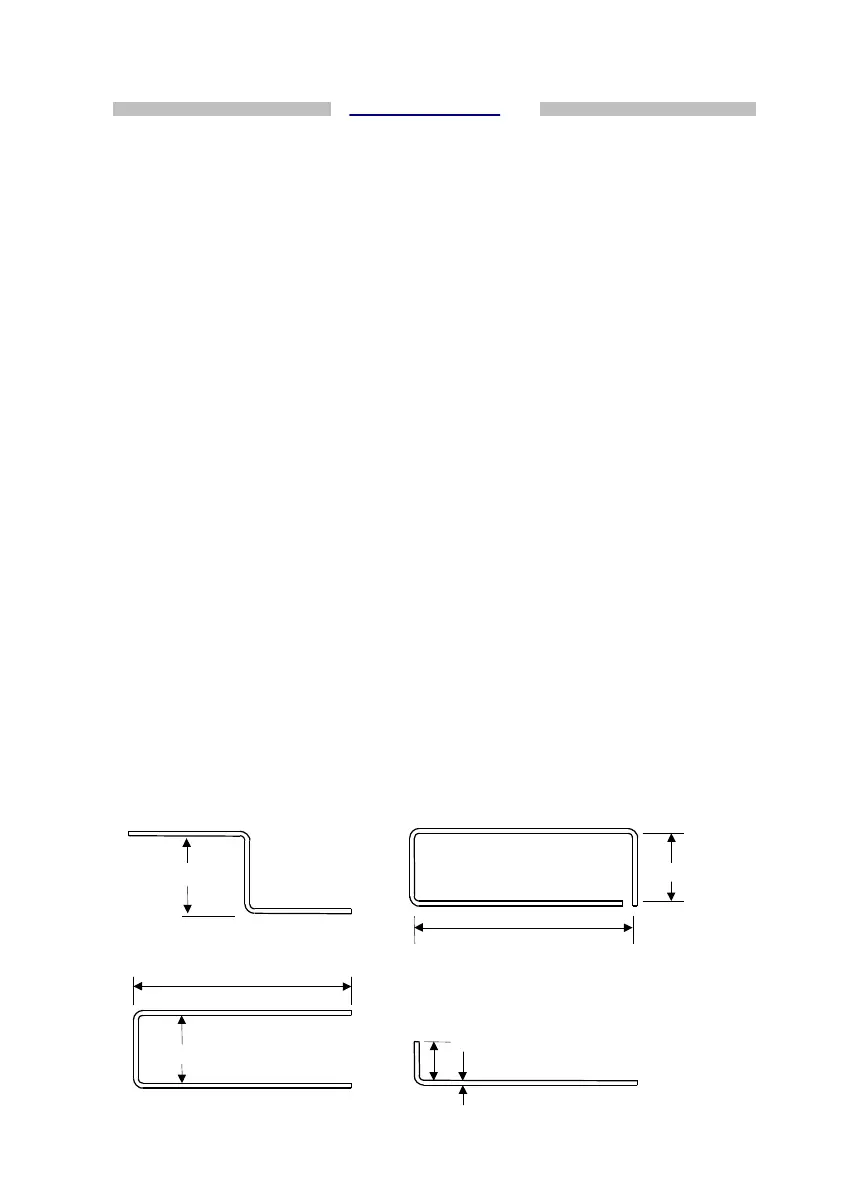

BENDING DIMENSIONS

SPECIFICATIONS ...

Refer to Chart

16mm (min)

98mm (min) Standard Clampbar

49mm (min) Narrow Clampbar

16mm (min)

Unlimited
