MAGNAMED Ventilator Analyzer - VentMeter P/N: 1901509 – Rev 05

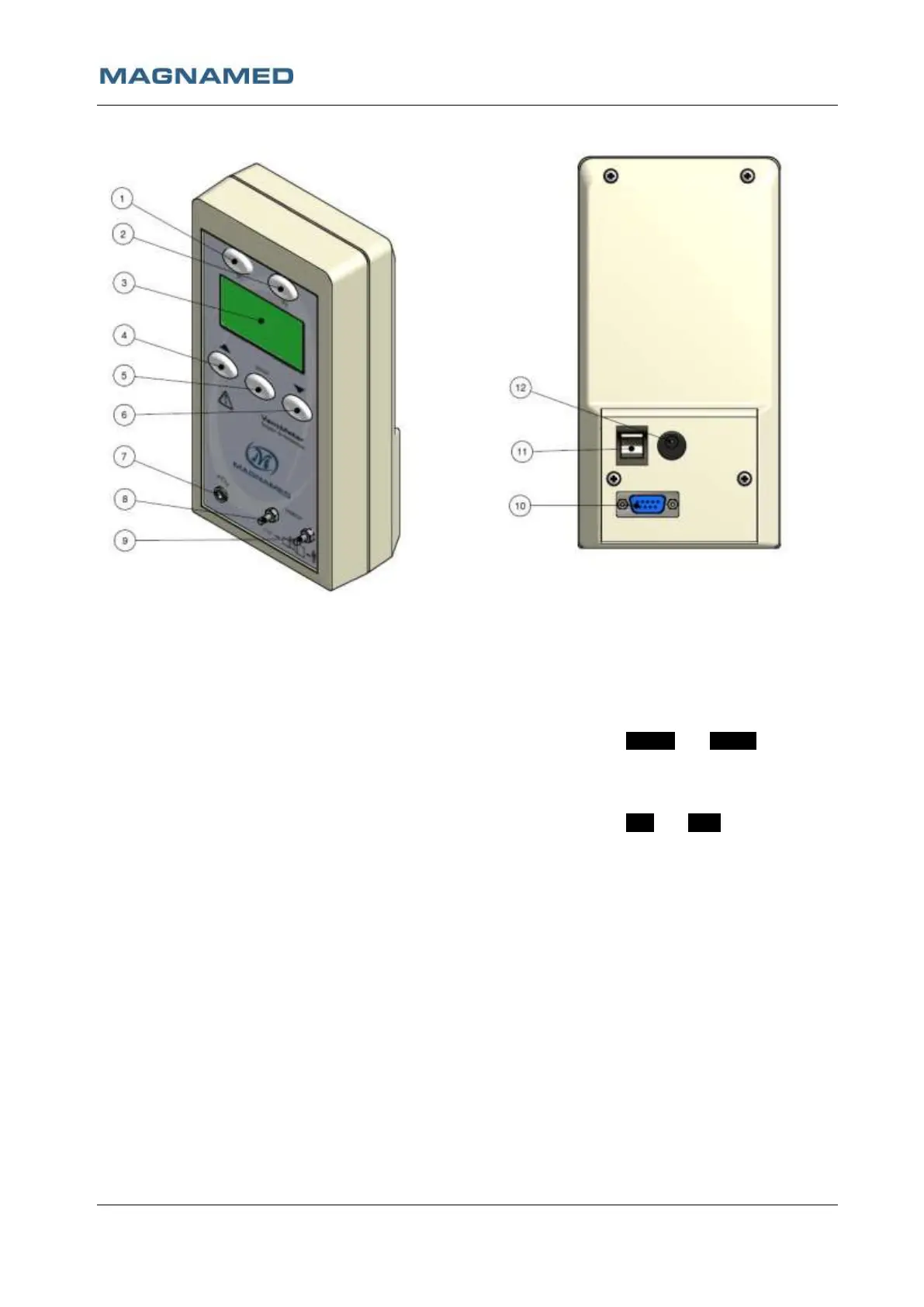

4.2 Identification
1 F1 Key
This key assumes the functions indicated by a highlighted text in the screen: Config. and Return
2 F2 Key
This key assumes the functions indicated by a highlighted text in the screen: Cal. and Next
3 LCD Display
Show graphs and monitored parameters.
4 UP Key or Increment Key
This key increments or UP ARROW to allow navigation within the screen.
5 Confirm Key
This key selects the function or parameter to be monitored.
6 Decrement Key or Down Key
This key decrements or DOWN ARROW to allow navigation within the screen.
7 Galvanic Cell Connector to measure O
2
Concentration
