MAGNAMED Ventilator Analyzer - VentMeter P/N: 1901509 – Rev 05
o Max Volume – Maximum value of volume in the graph (adjusted from 50 to 2000 mL with
steps of 50 mL)
o Time – One screen sweep time (adjusted from 1 to 15 seconds with steps of 1 second).
When adjusted in 1, it is possible to see a complete respiration cycle with 60 min
-1
(respiration rate) rate. Adjusting in 12, it is possible to see a complete respiration cycle with 5
min
-1
respiration rates.
Monitor Screen:
In the monitor screen it will be possible to select up to 6 parameters with two screens of 3 parameters
simultaneously.

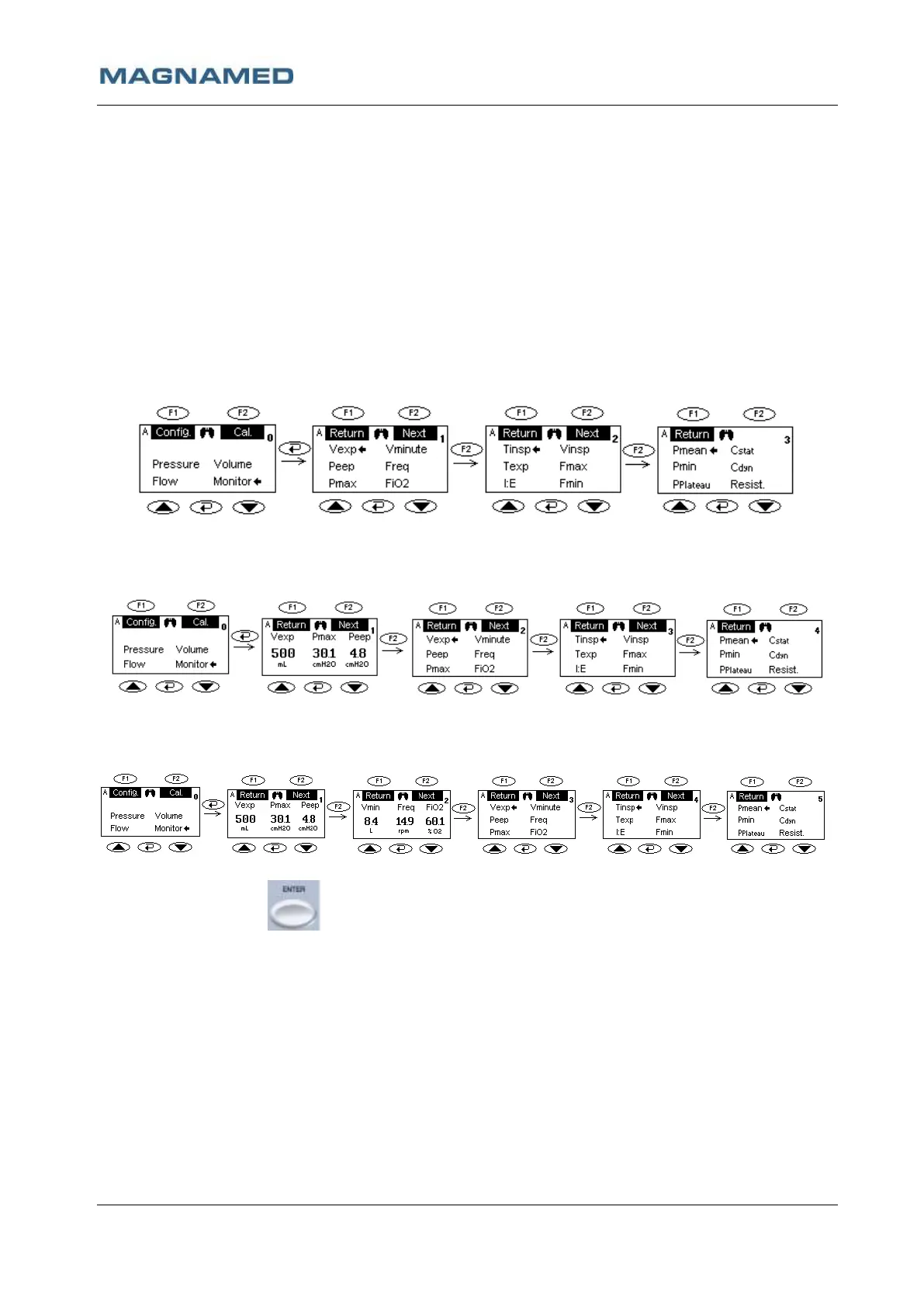

Screen sequence without any parameter selected:
Screen sequence with up to 3 parameters selected:
Screen sequence with up to 6 parameters selected:
By pressing the ENTER key, in the Main Screen, when the arrow is pointing to Monitor the display
will show the Monitor Screen.
The F1 and F2 key allows navigation between monitor screens, notice that as the F2 key is pressed the
number at the superior right corner is incremented, indicating greater distance from the Main Screen.
.
• Monitor Screen (1): Monitored Numerical Value I
o Superior Screen – Monitored Parameter Name
o Central Screen – Param 1, Param 2, Param 3
o Inferior Screen – Unity of measurement
• Monitor Screen (2): Monitored Numerical Values II
o Superior Screen – Monitored Parameter Name
o Central Screen – Param 4, Param 5, Param 6
o Inferior Screen – Unity of Measurement
• Monitor Screen (3): Monitored Parameters Selection I
o Vexp – Expired Volume (Tidal Volume)
