MAGNAMED Ventilator Analyzer - VentMeter P/N: 1901509 – Rev 05
g. Monitor the following parameters with VentMeter’s Monitor Screen
• Vexp – Expiratory Volume
• Freq – Frequency - Rate
• I:E – I:E Ratio
• Pmax – Maximum Pressure
• Pplat – Plateau Pressure
• PEEP – Positive Expiratory End Pressure
Evaluating adult ventilator in PCV (Pressure Controlled Ventilation) mode.

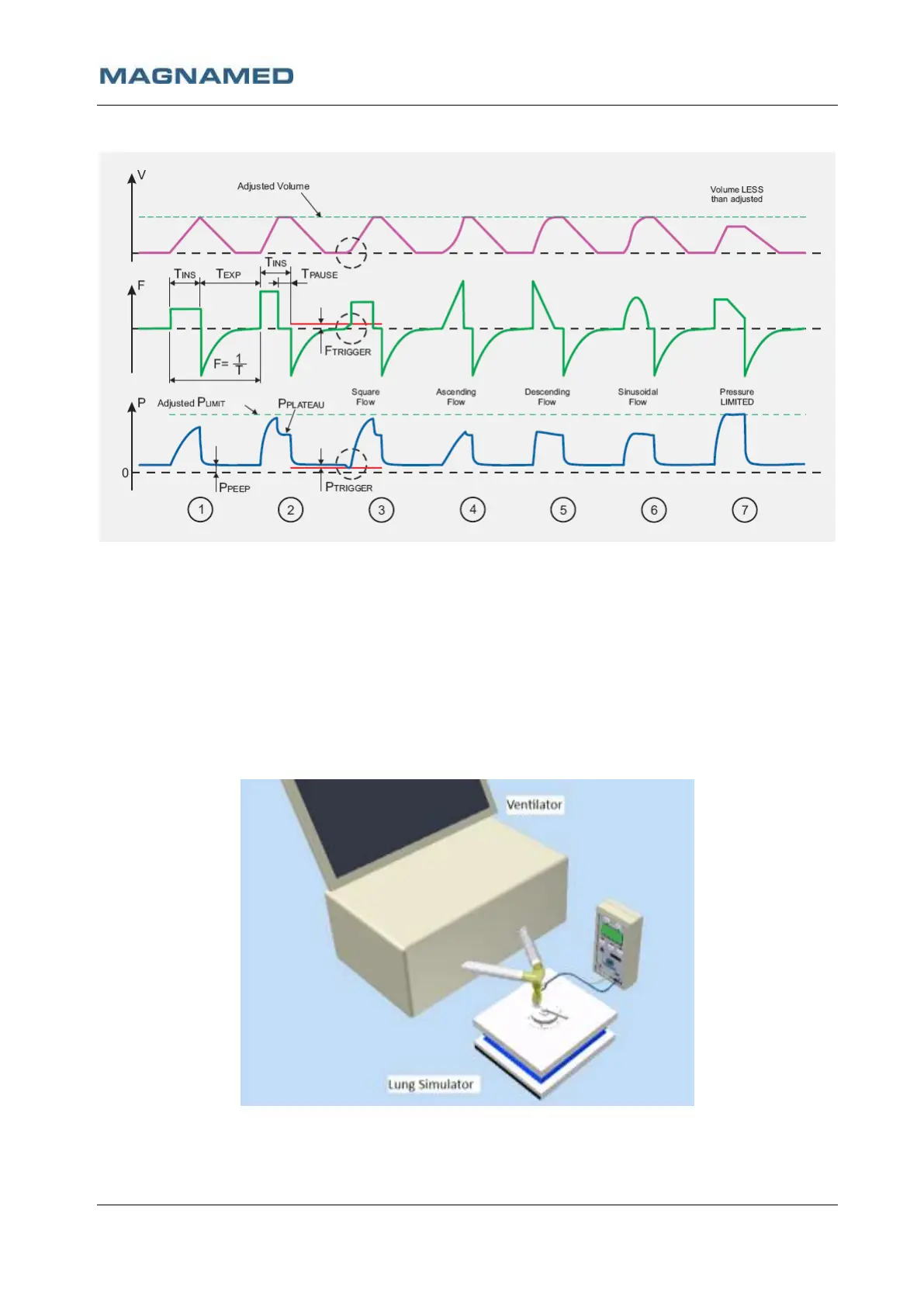

a. Connect the system as shown in the figure bellow.
b. Calibrate the Ventilator Analyzer - VentMeter
c. Calibrate or carry out the initialization procedures of the ventilator according to the manufacturers
recommendation
d. Adjust the lung simulator:
