MAGNAMED Ventilator Analyzer - VentMeter P/N: 1901509 – Rev 05
• Compliance = 20 mL/cmH
2
O
• Resistance = 20 cmH
2
O/L/s
e. Adjust the lung ventilator with the following parameters:
• Pressure = 25 cmH
2
O
• Frequency (Respiration Rate) = 12 min
-1
• Inspiratory Time = 1,7 s
• PEEP = 5 cmH
2
O

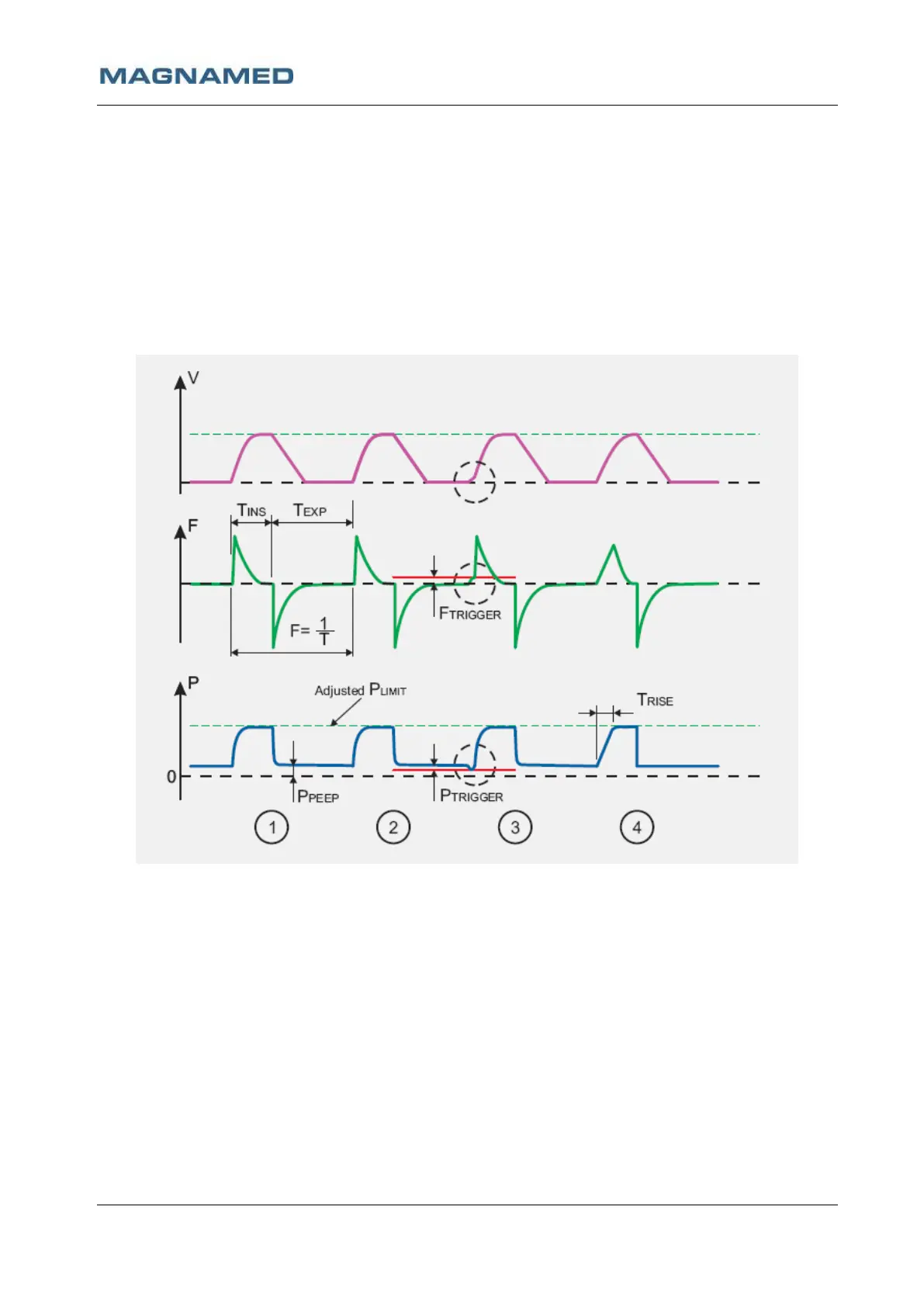

f. See the curves Pressure x Time, Flow x Time, Volume x Time (sample in the figure bellow)
g. Monitor the following parameters with VentMeter’s Monitor Screen
• Vexp – Expiratory Volume
• Freq – Frequency - Rate
• I:E – I:E Ratio
• Pmax – Maximum Pressure
• Pplat – Plateau Pressure
• PEEP – Positive Expiratory End Pressure
