English
10 Basic Controls
Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
VCR IN LINE 1 (VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an external source (Audio system, TV/Monitor,
another VCR).
ANT.IN (ANTENNA INPUT)
Connect the VHF/UHF/CATV antenna to this terminal.
DVD/VCR OUT (VIDEO/AUDIO (Left/Right))
Connect to a TV with video and audio inputs.
AUDIO OUT (Left/Right) (DVD OUT)
Connect to a TV, amplifier, receiver, or stereo system.
AC Power Cord
Plug into the power source.
S-VIDEO OUT (DVD OUT)
Connect to a S-Video Input on TV.
COMPONENT/PROGRESSIVE SCAN VIDEO OUT (Y Pb Pr) (DVD
OUT)
Connect to a TV with Y Pb Pr inputs.
RF. OUT(DVD/VCR OUT)
Connect to a TV with RF coaxial inputs.
DIGITAL AUDIO OUT (COAXIAL) (DVD
OUT)
Connect to digital (coaxial) audio equipment.

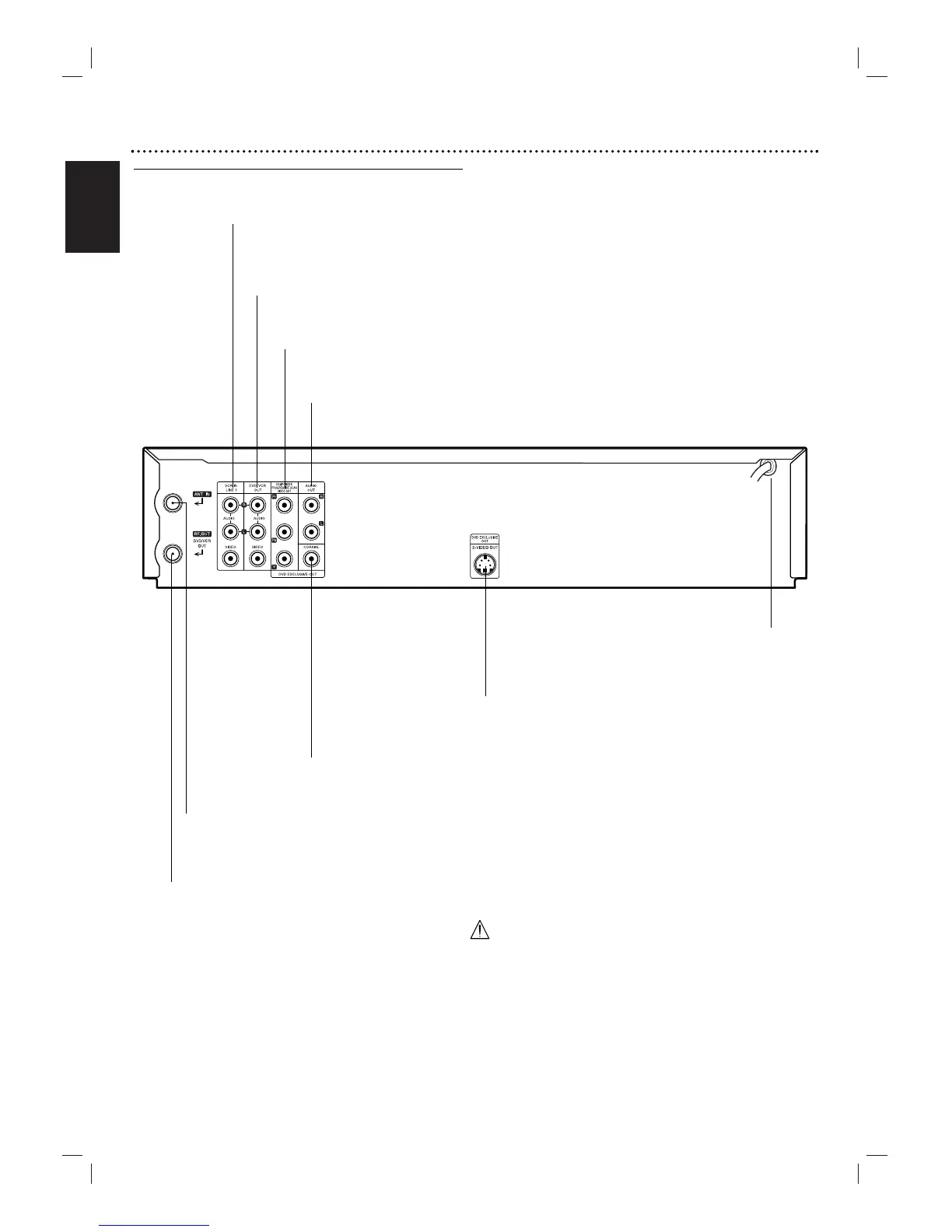

Rear Panel
