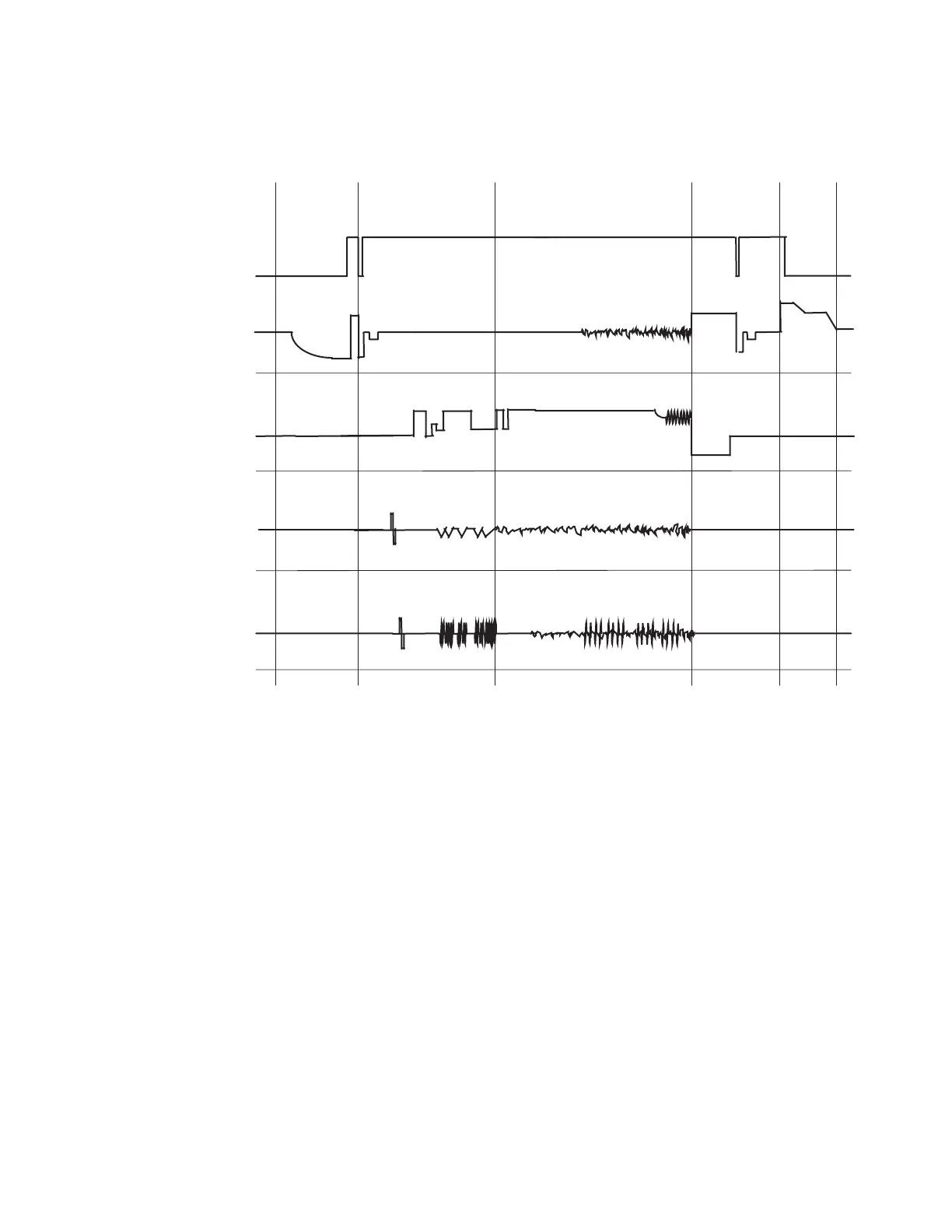

1-15-6 D7N4HTI
< DVD Section >
Tray IN
(TL221)
Sled Drive
(TP303)
Disc Drive
(TP301)
Focus Drive
(TP304)
Tracking Drive
(TP302)
0V
3.3V
0V
1.65V
0V
0V
0V
1.65V
1.65V
1.65V
Tray Close ~ Play / Play ~ Tray Open
Tray
Close
Disc
Rotation
Play
Disc
Stop
Tray
Open
