Magos MSA1356A - Recommended Tilt Angles

©2023, Magos Systems Ltd. All rights reserved.

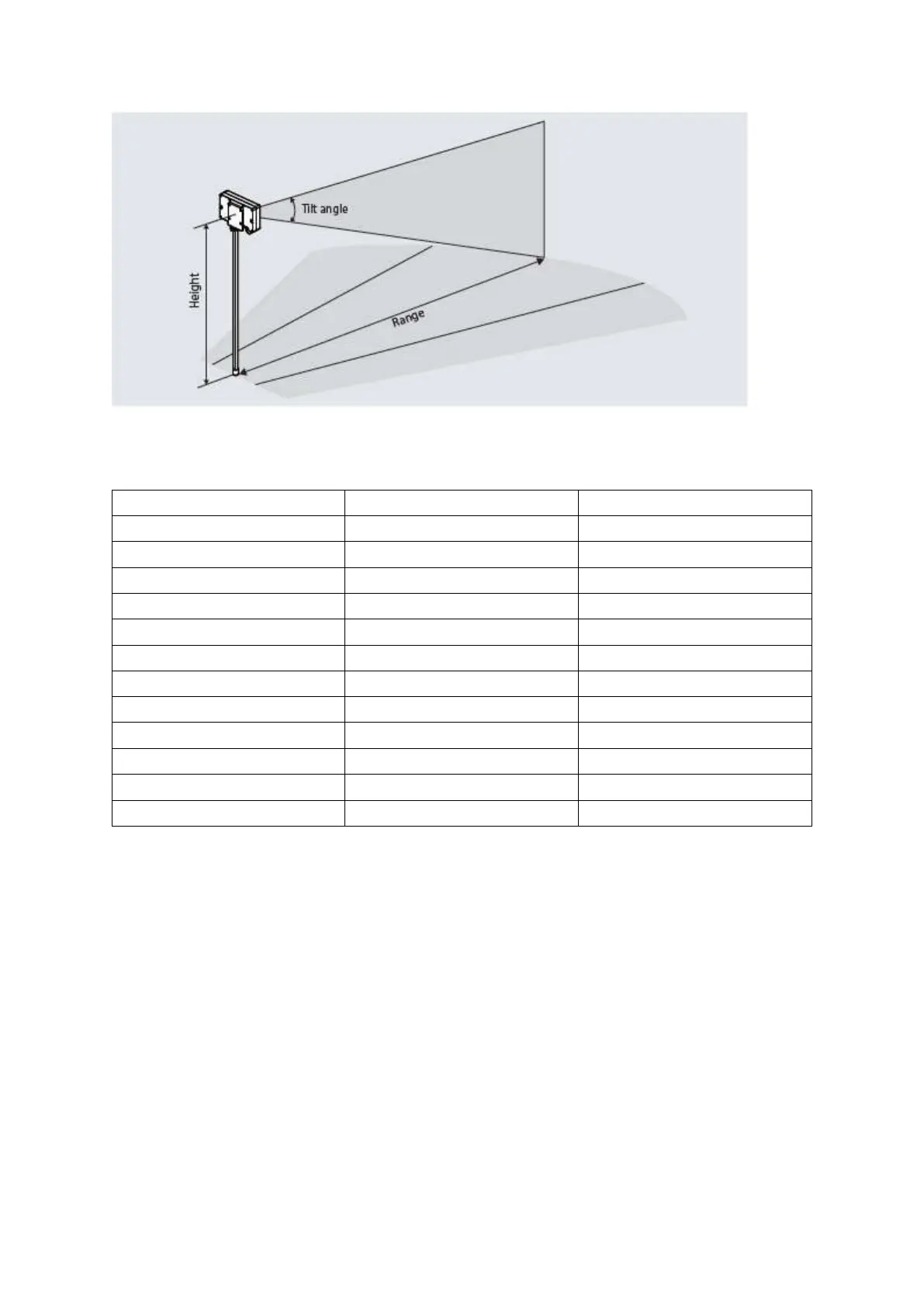

Figure 7: Tilt Angle
Height (m)
Range (m)
Tilt angle (degrees)
5
100
-3
5
200
-2
5
400
0
10
100
-6
10
200
-3
10
400
0
15
100
-8
15
200
-4
15
400
-2
20
100
-11
20
200
-6
20
400
-3
Table 3: Tilt Angle
