C-102
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08

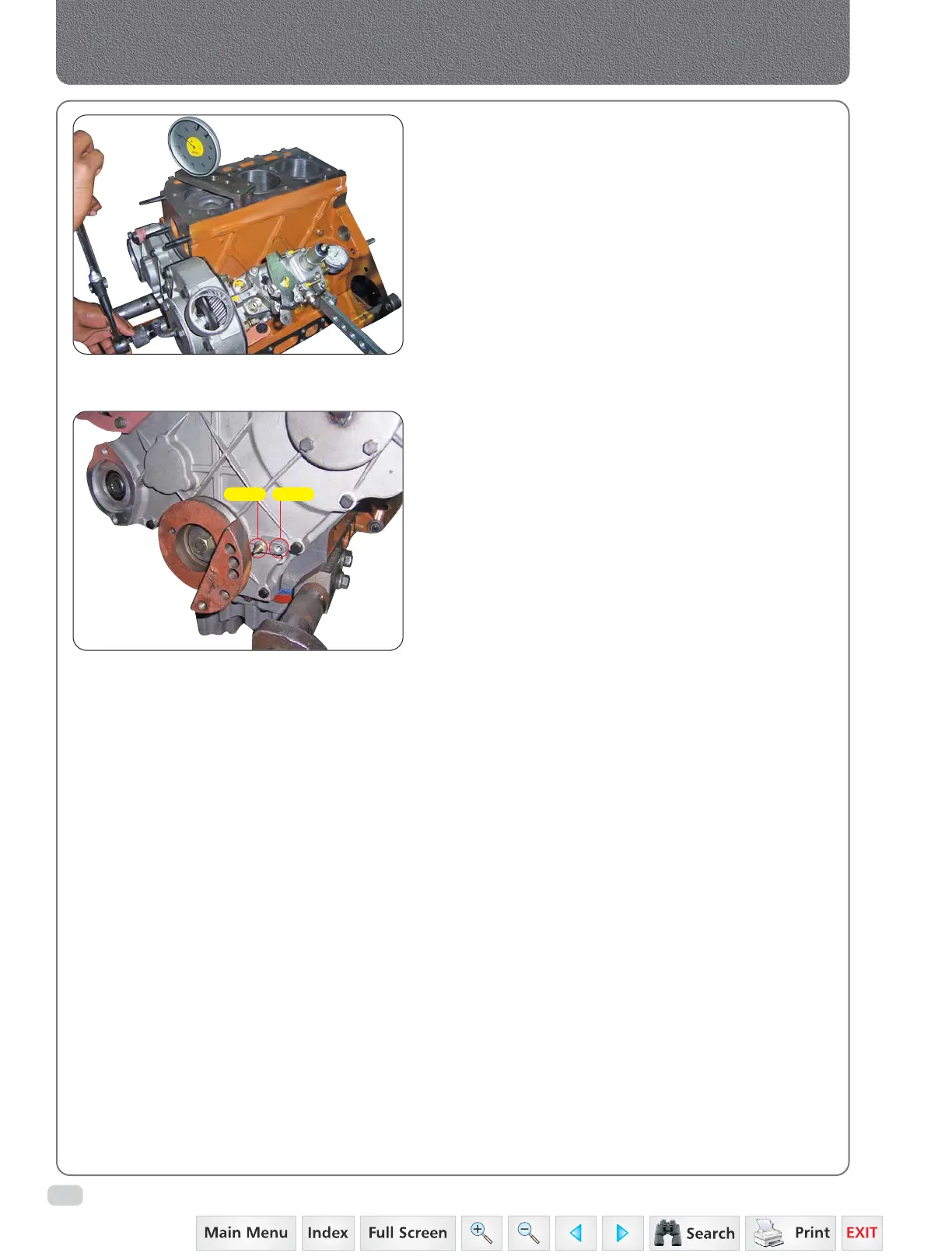

SOP for Rotary FIP timing checking on tractor
1) Remove high pressure pipe at Fuel injection
pump end.
2) Remove special plug provided at backside of FIP
& insert dial (ASN0600G013) with adapter as
shown in Fig.1.
3) Rotate crankshaft pulley in clockwise direction
(as seen from flywheel side) till the pointer
matches with crankshaft pulley groove. Ensure first
cylinder piston at compression TDC.
4) Set dial gauge to read zero at above match
position.
5) Rotate pump gradually to upward / downward
direction till dial gauge showing specified reading.
Injection Timing (mm@tdc)
For 4035 / 3535 0.95 ± 0.02 mm
For 4535 / 5035 1.00 ± 0.02 mm
Fig. 5
Fig. 6
For 3 Cyl. For 4 Cyl.
Fuel System
