Mahindra 35 Series User Manual

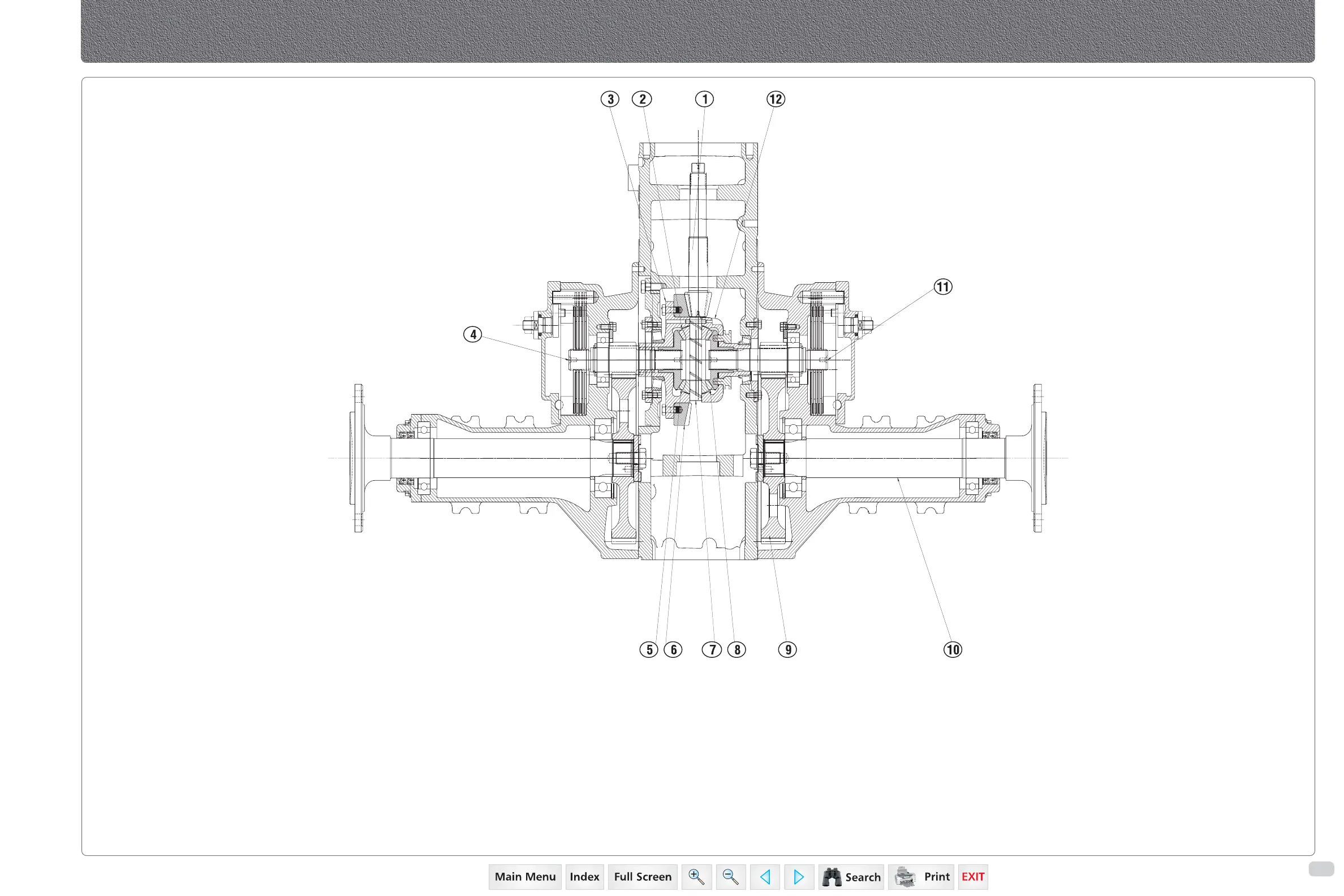

Differential Layout - 35 Series
E-44
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
1. Spline Shaft
2. Pinion Differential Case
3. Differential Case
4. Bull Pinion Brake Shaft LH
5. Bevel Gear Differential LH
6. Gear Crown Wheel
7. Differential Pinion Shaft
8. Bevel Gear Differential RH
9. Bull Gear
10. Bull Pinion Brake Shaft RH
11. Rear Axle
12. Differential Housing Assembly

Mahindra 35 Series Specifications

General

Cylinders	3
Transmission	8 Forward + 2 Reverse
Fuel Type	Diesel
Brake Type	Oil Immersed
Brakes	Oil Immersed
Steering	Power Steering
Drive Type	2WD
Engine Type	Diesel
Steering Type	Power
Fuel Tank Capacity	45 liters
