A. WET CLUTCH PTO
1. DISMANTLING
a. Remove PTO cover assembly as explained in Rear
PTO Cover section.
b. Remove rear PTO shaft assembly, top and bottom
simultaneously).
c. Remove external circlip of PTO input shaft and
pull out the wet clutch assembly.
2. CLEANING AND INSPECTION
a. Clean all gears and spline for damage and burrs.
b. Check bearing for pitting and crack if any.
c. Replace all seals.
d. Check wet clutch liners for wear.
e. Clean all parts with suitable solvent.
3. ASSEMBLY – PTO COVER
a. Assemble output shaft bearing and oil seal in
cover assembly output shaft.
b. Hold the Output gear in position with input gear.
c. Push output shaft in out put gear with spacer
in position and insert in bearing and oil seal.

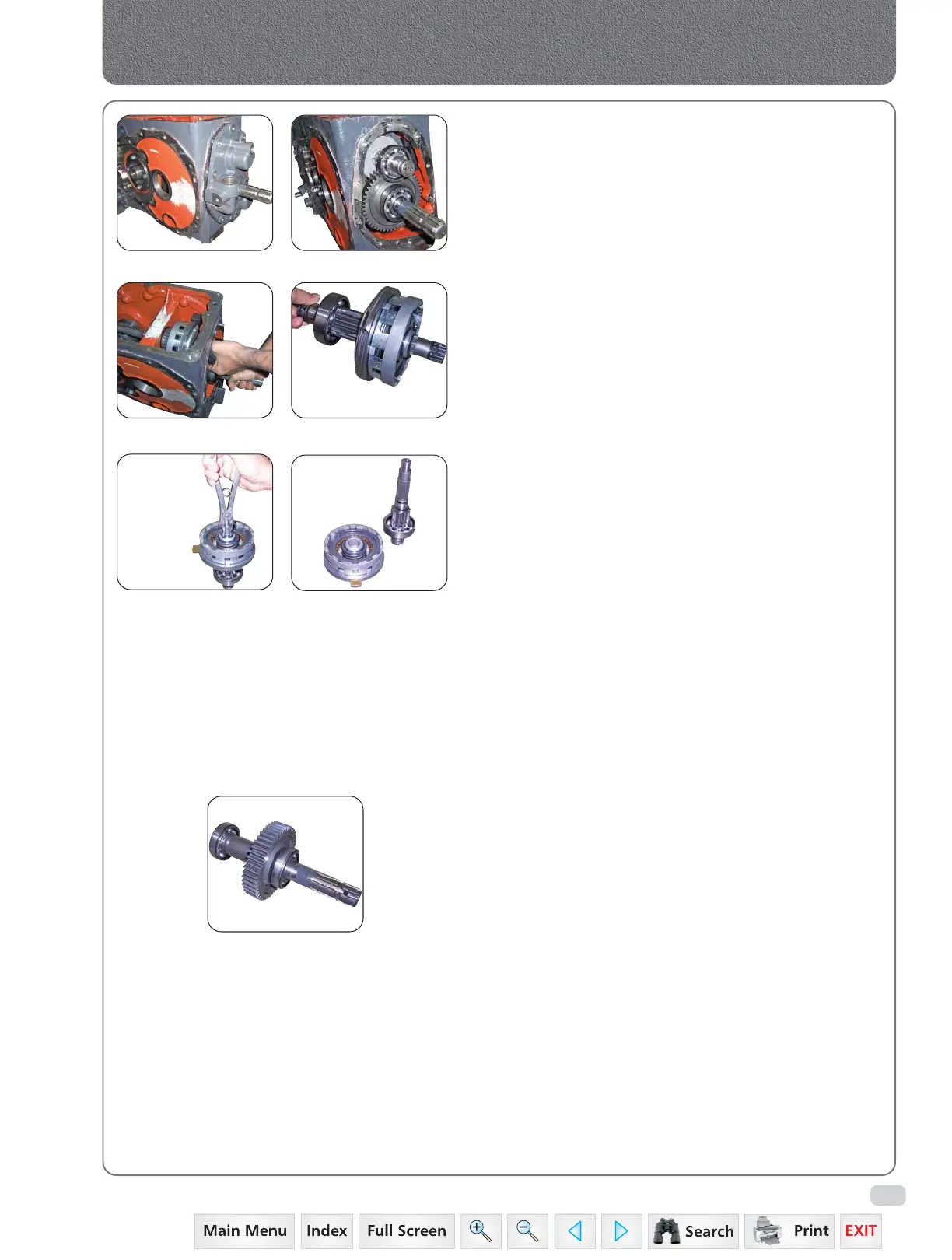

Wet Clutch PTO
Removal of Rear PTO Housing Assembly
Removal of PTO Input and Output Shaft
Removal of Input Shaft from Wet Clutch
Output Shaft
To Next Page
