Mahindra 35 Series User Manual

E-64
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08

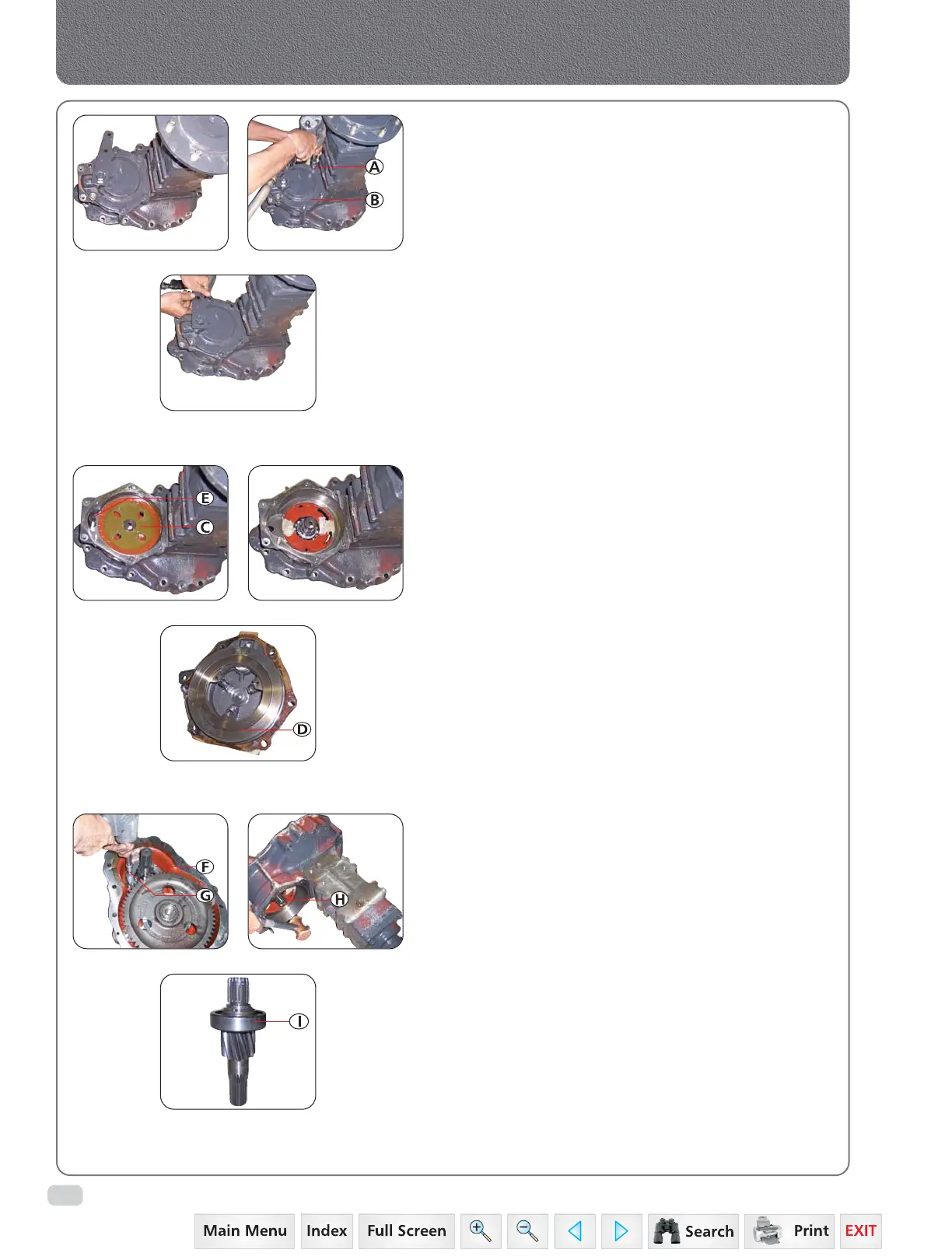

2. Removal
a. Separate Rear Axle Carrier Housing from
Transmission Case and place on suitable work
bench for further dismantling.
b. Loosen bolt (A) and take out cover plate (B).
c. Remove friction disc (C), actuating disc assembly
(D) and intermediate pin (E).
d. Remove retainer (F) from other side by loosening
the bolts (G).
e. Take out bull shaft (H) with bearing (I) by slight
tapping.
Brakes
Removal of Cover Plate Brake
Removal of Brake Plates
Removal of Bull Pinion Brake Shaft

Mahindra 35 Series Specifications

General

Cylinders	3
Transmission	8 Forward + 2 Reverse
Fuel Type	Diesel
Brake Type	Oil Immersed
Brakes	Oil Immersed
Steering	Power Steering
Drive Type	2WD
Engine Type	Diesel
Steering Type	Power
Fuel Tank Capacity	45 liters
