G-27
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Electrical System
1. Flange Nut
2. Pulley
3. Asymmetric Fan
4. Bearing Collar
5. Through Bolt
6. Screw (Bearing Retainer Fixing)
7. Spring Washer
8. "DE" Insert
9. "DE" Bracket Assembly
10. "DE" Ball Bearing
11. Bearing Retainer
12. Spacing Collar
13. Rotor Assembly
14. "SRE" Ball Bearing
15. Stator Winding Assembly
16. Rectifier Assembly
17. Aluminium Spacer
35. Suction Connector Screw
36. Sealing Washer
37. Suction Connector Assy.
38. Dust Cap
39. Dust Cap
40. Sealing Washer
41. Check Valve Assy.
42. Housing M/C
43. Screw
44. Centre Plate M/C
45. 'O' Ring
46. 'O' Ring
47. Dust Cap
48. Delivery Connector Assy.
49. Sealing Washer
50. Screw
51. Oil Inlet Plug

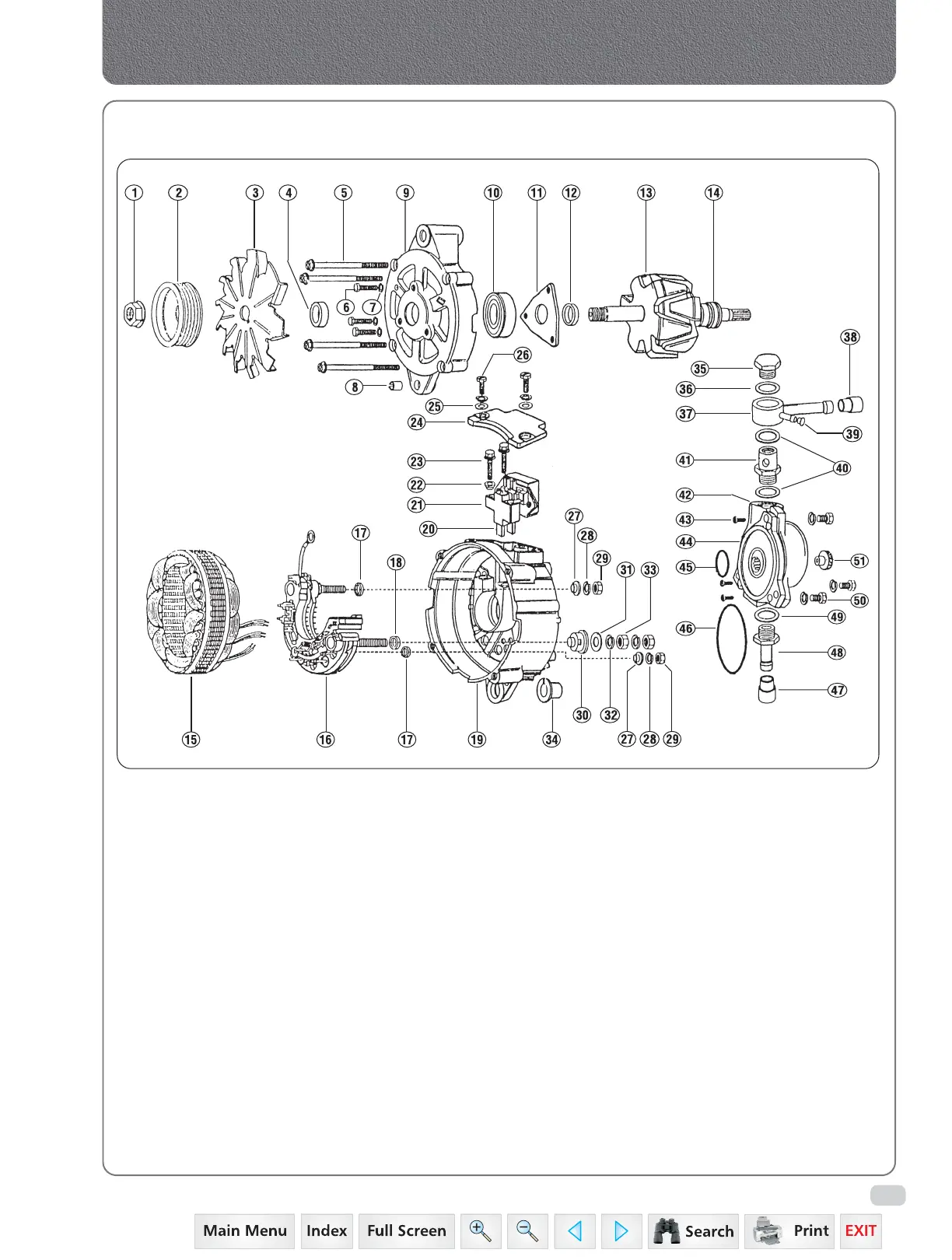

8. EXPLODED VIEW - ALTERNATOR
18. Insulating Washer
19. SRE Bracket Assembly
20. Brush Set
21. Regulator & Brush Box Assy.
22. Insulating Bush
23. Captive Screw Assembly
24. Cover Moulding
25. Plain Washer
26. Screw
27. Bush
28. Spring Washer
29. Nut
30. Insulating Cup Washer
31. Plain Washer
32. Spring Washer
33. Nut
34. Sliding Bush
