Mahindra 35 Series User Manual

I-32
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Hydraulics

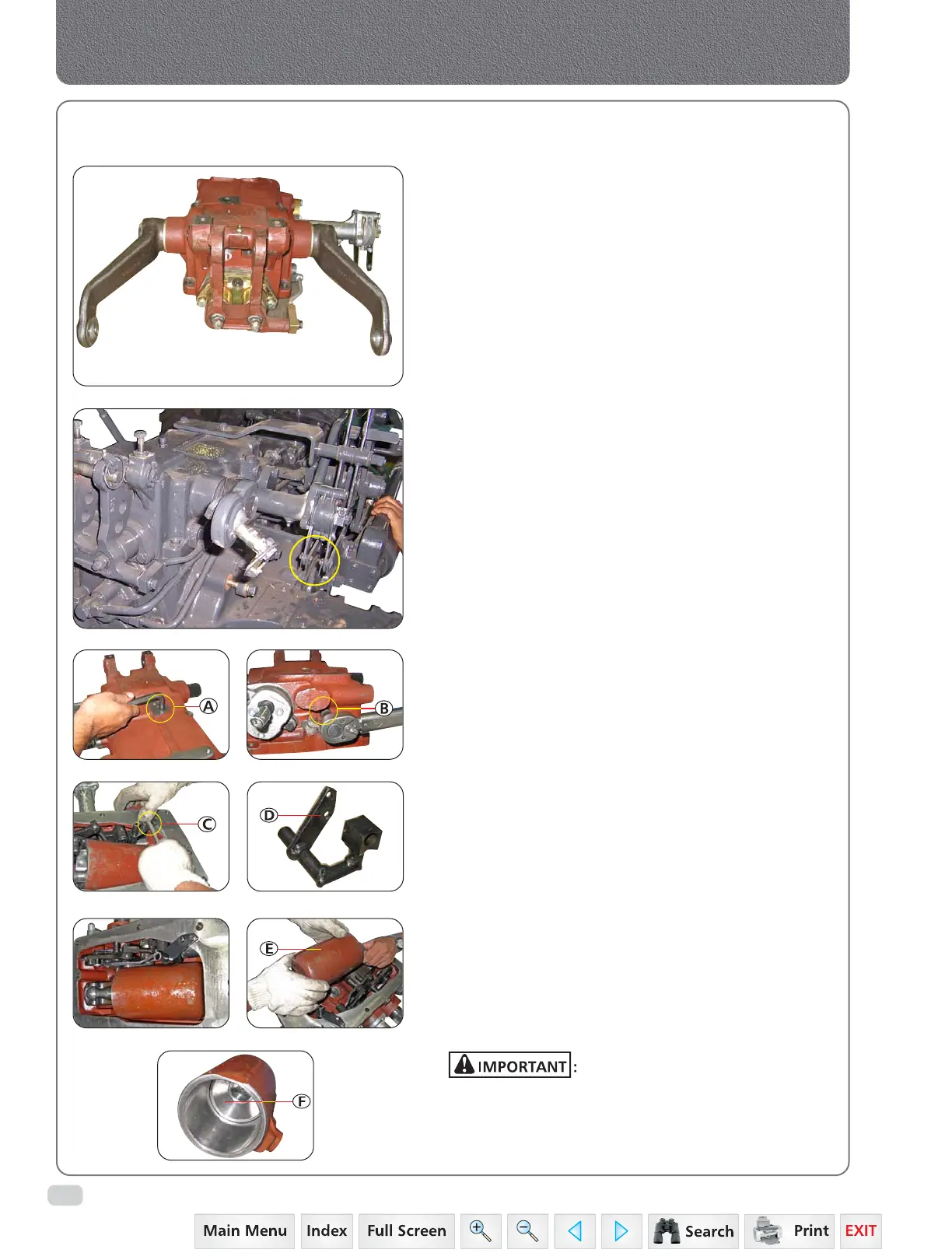

16. REMOVE, INSPECT AND INSTALL HYDRAULIC
PISTON AND CYLINDER
1. Remove Hydraulic Lift Unit as per the guided
procedure as given in point no.11.
2. Remove position and draft control linkages
levers by loosening lock clips and washers.
3. Remove two allen screws (A) & (B) to loosen
the cylinder.
4. Remove bolt (C) of bracket lubrication
(D) and take it out.
5. Remove cylinder assembly (E).
6. Insert a long wood dowel or brass drift through
cylinder opening to remove piston (F).
7. Inspect all part for wear or damage. Check
piston and cylinder for cracks or scoring.
Replace as necessary.
Always use new seals. Old or
damaged seals will leak.
