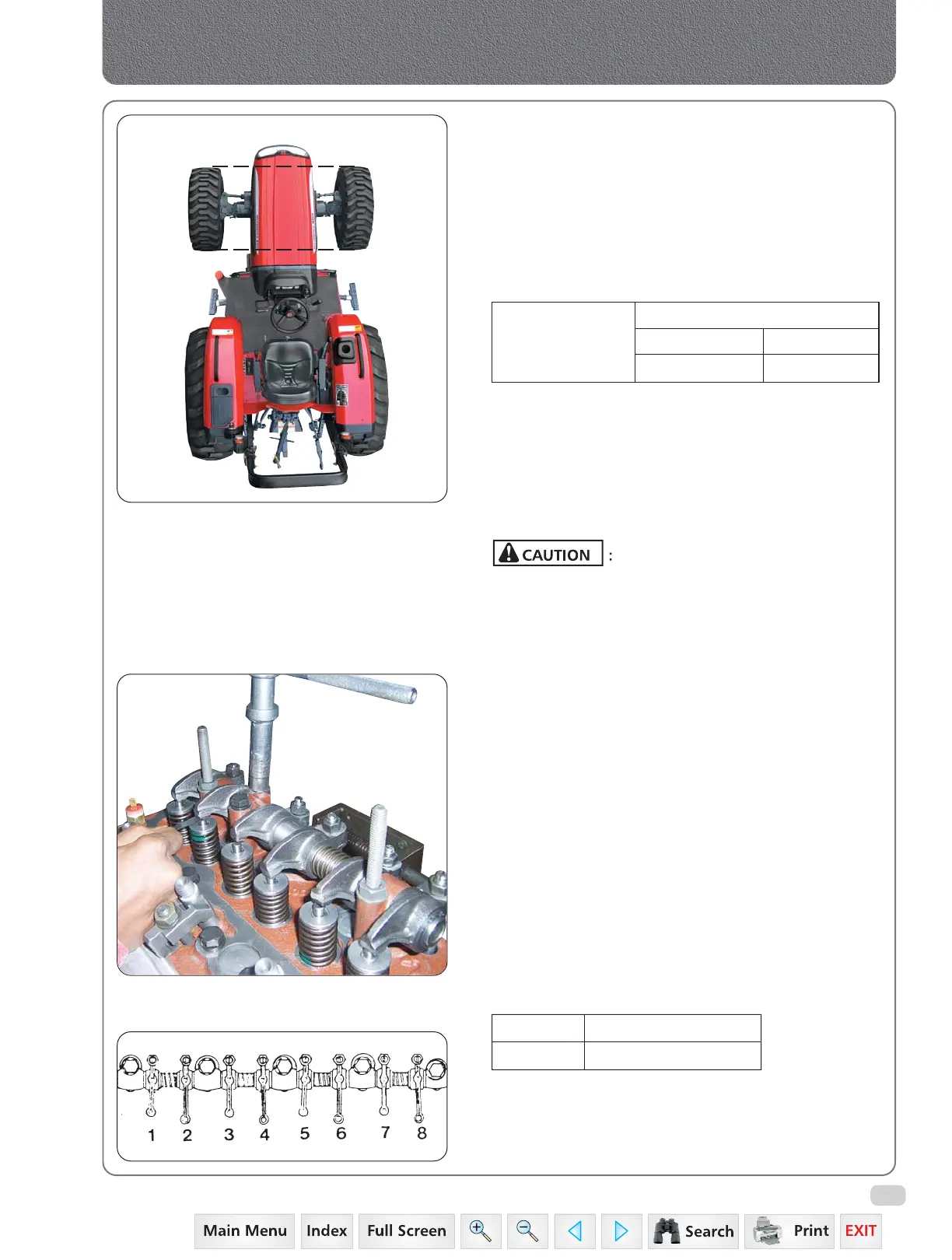

A-15
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08
Distance should be same at the front and rear.
Front Axle - Front Wheel “Toe-in” Check
In the event of the tie rod setting, then it is necessary
to adjust the TOE-IN. Before measuring and adjusting
the TOE-IN, ensure the front wheels are in the
straight ahead position and the front axle is not
tilted.
After adjusting the front wheel tread and with all
connections secured, the front wheel Toe-in shall be
as follows,
Toe-in Value
35 Series Inch mm
4WD 0 – 0.23 0 – 6
Measure the distance between the outer edges of the
wheel rims at the same height as the hub caps.
Mark the point measured and turn the wheels half
revolution so that the marked points are at the rear.
Measure again the distance between these two points
and this distance must be the same as measured before
without variance. To adjust the TOE-IN shorten or extend
the tie rod clockwise or anti-clockwise.
When the TOE-IN adjustments have been made the
tractor should be jacked-up and the axle tilted to its
maximum tilt position. In this position the wheels should
be turned to the full left-hand lock and at this angle
the welded stop on the steering knuckle pivot pin sleeve
should be hard against the stop on the steering knuckle.
Adjusting Valve Clearance
Adjusting Engine valve clearance at every 800 hours.
To check valve clearance use the simplified procedure
as out lined in the following.
All Values can be adjusted by cranking the engine only
twice.
No 1 Piston at T.D.C. (Compression)
Adjust Valves (Engine Warm)
1245
No 4 Piston at T.D.C Compression
Adjust Valves (Engine warm)
3678
Inlet 0.010 inch (0.25mm)
Exhaust 0.012 inch (0.3mm)
