Removal of Rear Axle

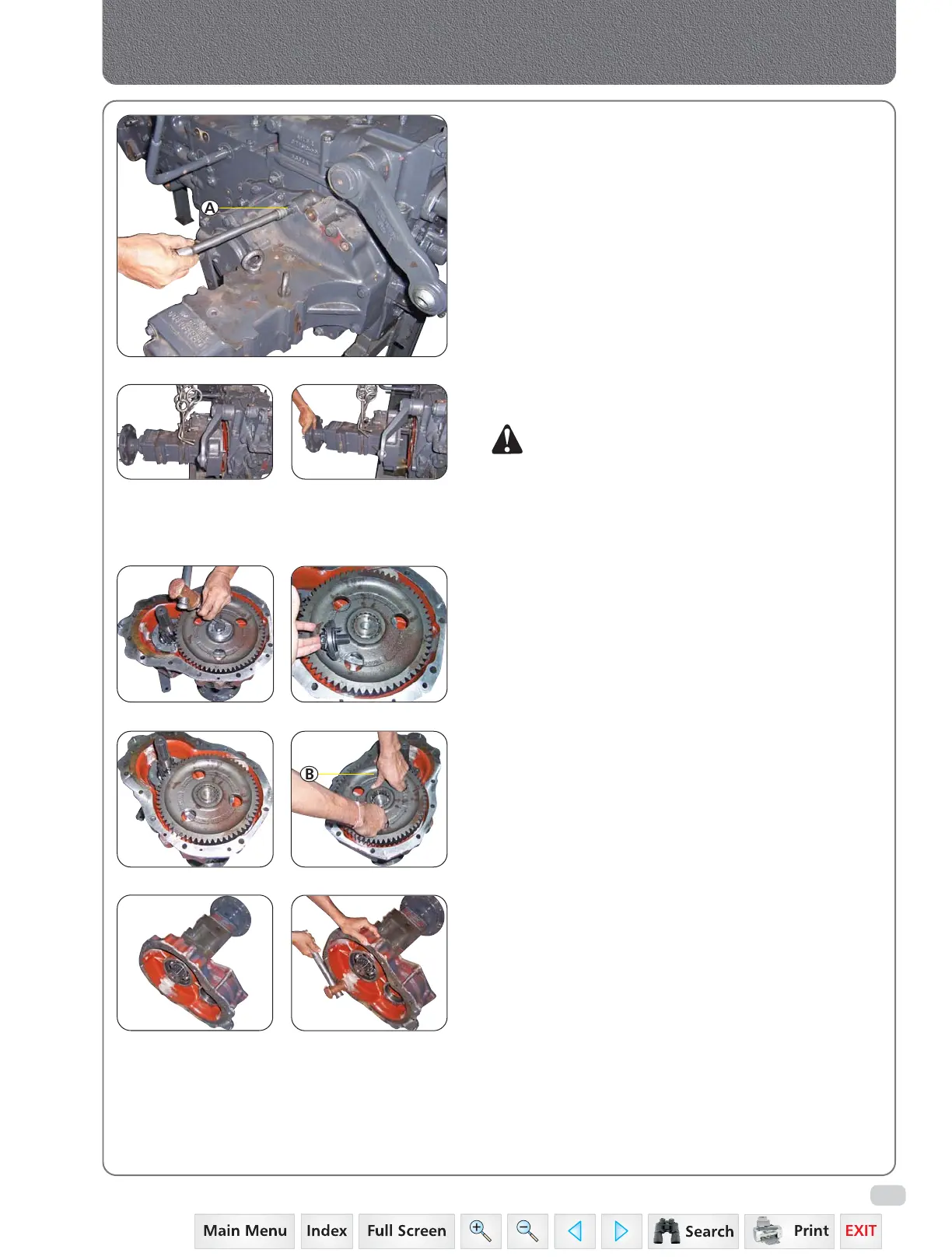

7. Sling the rear axle securely with a suitable hoist,
tension the sling.
8. Remove securing bolts (A) of Rear Axle Housing.
9. Ease the axle away from transmission-case.
NOTE: Removal / Assembling of LH / RH axle are
same.
3. Dismantling
1. Remove the bolt, shims and lock plate and
washers (as shown in fig.).
2. Remove bull gear (B).
3. Tap the rear axle splined end with copper hammer
and pull out the rear axle from other end.
Rear Axle
