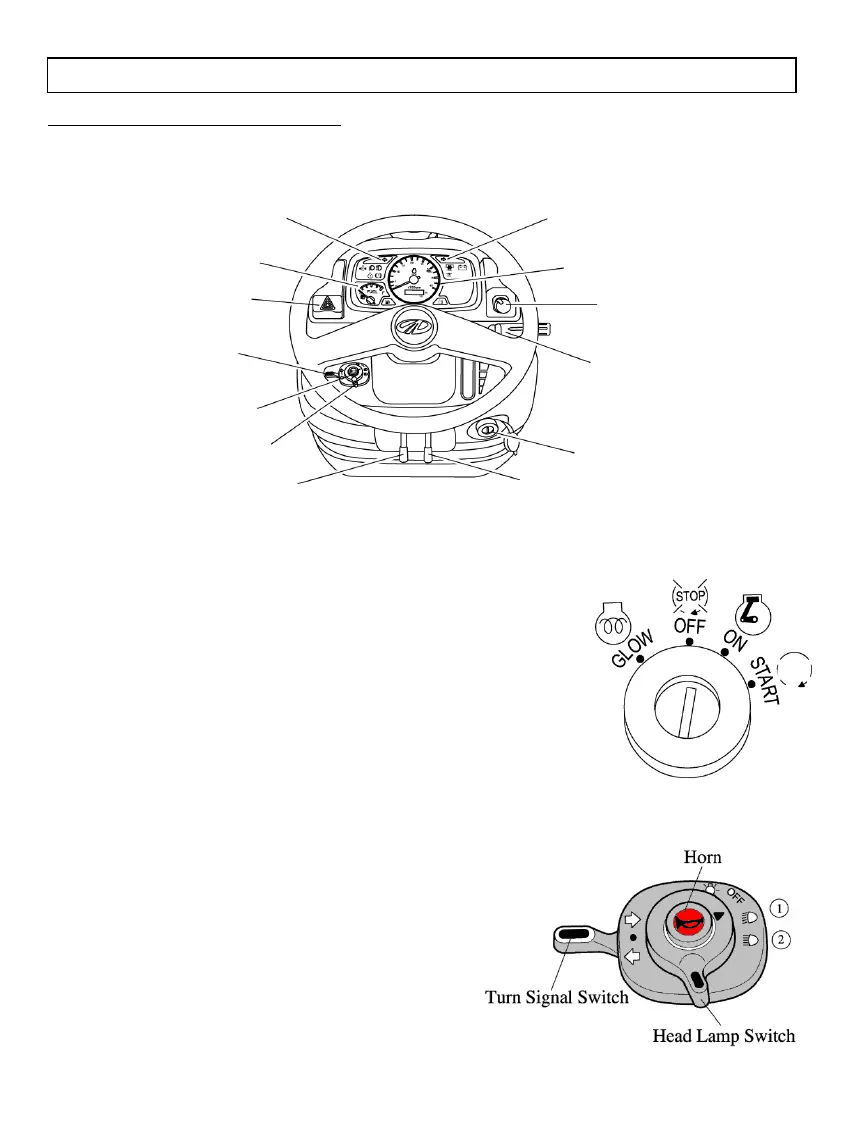

DESCRIPTION OF TRACTOR CONTROLS
► INSTRUMENTS AND SWITCHES
► MAIN SWITCH (KEY SWITCH)
[OFF] - The key can be inserted or removed
[ON] - The electric circuit is on.
[GLOW] - Glow plugs preheat the combustion chamber
[START] - The starter motor is engaged.
When the key is released it will return to the ON position
► HEAD LAMP, TURN SIGNAL SWITCH AND HORN
■ HEAD LAMP SWITCH
High and low beams are operated on the main switch
Position ①. Low beam
Position ②. High beam
■ TURN SIGNAL SWITCH
Pull the turn signal lever down to signal a left turn.
Push the turn signal lever up to signal a right turn.
■ HORN
Push the Red button.
29
Right Turn Signal Lamp
Tachometer
PTO On/Off Button
Hand Throttle Lever
Left Turn Signal Lamp
Fuel Gauge
Hazard Warning
Turn Signal S/W
Horn S/W
Head Lamp S/W
Key S/W
Cruise Control Lever
Parking Brake Lever
