Mahindra ML 120 3535 - 28 Tilt Cylinder

95

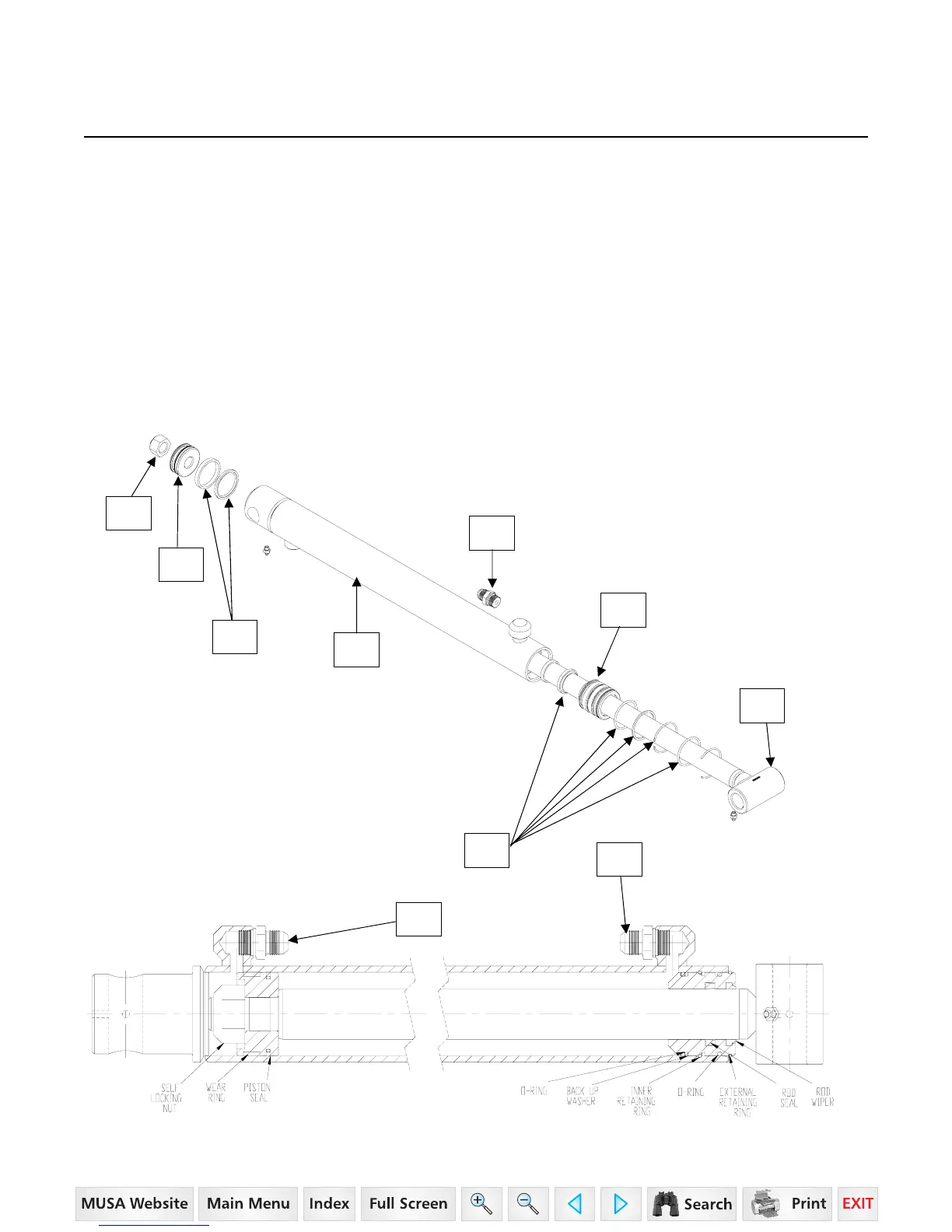

28. TILT CYLINDER
2.0” x 1.25” Rod x 27.38” Ret. x 48.07” Ext.
Reference Description Part No. Qty.
0..............................Tilt Cylinder (complete) ............................................................3150-2106 ................................1
1..............................Tube Assembly.........................................................................0100-2127 ................................1
2..............................Nut............................................................................................0530-2020................................1
3..............................Piston .......................................................................................0405-2041 ................................1
4..............................Seal Kit.....................................................................................0590-2082................................1
5..............................Head.........................................................................................0330-2045................................1
6..............................Rod Assembly..........................................................................0200-2117 ................................1
................................Grease Fitting Straight .............................................................0530-1038 ................................2
7..............................Hydraulic Adapter.....................................................................0586-1108-408 .........................2
7
7
1
2
3
5
6
7
4
4
35 Series 4WD, Model - 3535 & 4035 Loader June’08
