13 Electrical Distribution
13 ELECTRICAL DISTRIBUTION

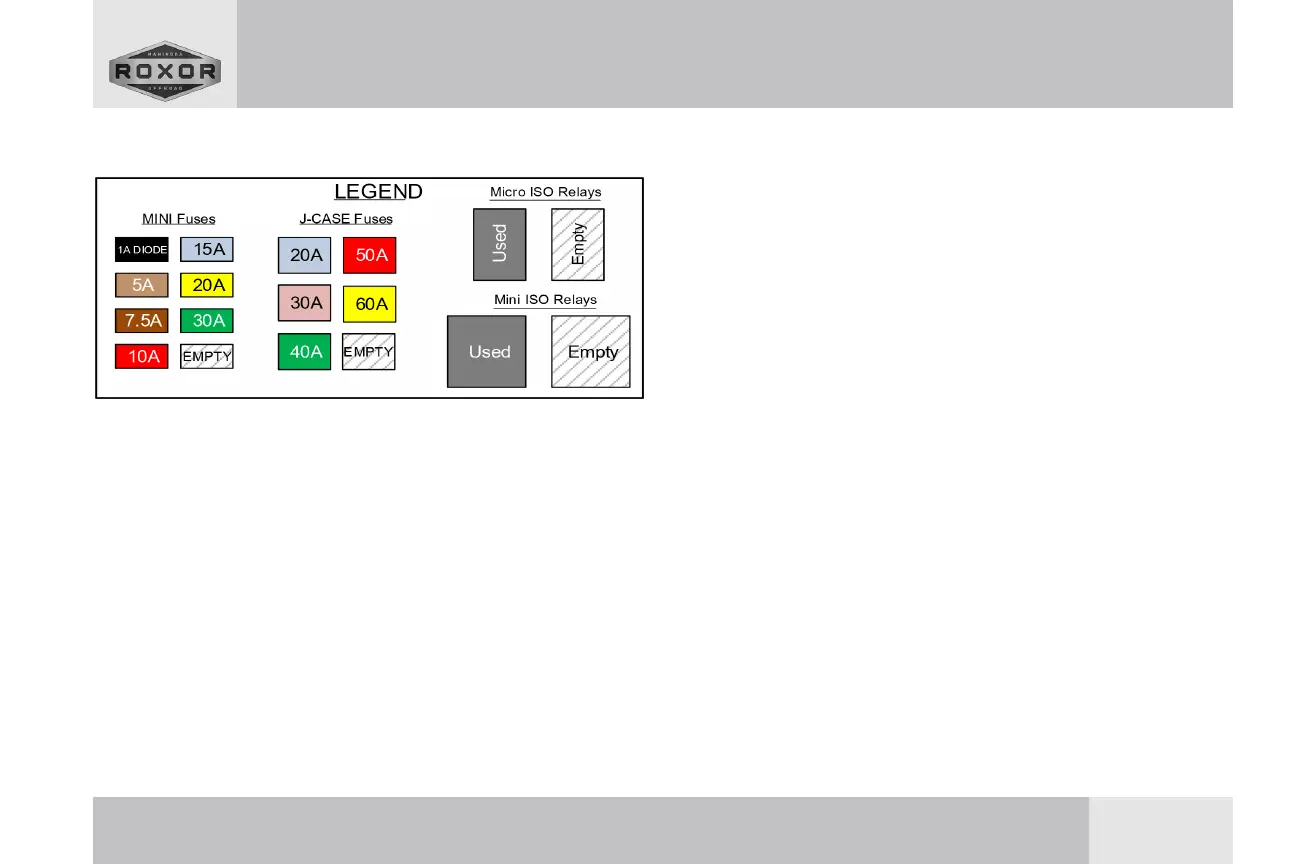

The Distribution Center Legend shown above outlines the types and
sizes of fuses and relays used on the Mahindra ROXOR Offroad Side
x Side.
Main Power Distribution Center – This component is located in the
engine bay on the passenger side. The Main Power Distribution
Center cover contains a similar graphic to the one shown here for
convenience. (see Figure 2)
IP Power Distribution Center – This component is located behind
the dash panel on the passenger side. The IP Power Distribution
Center cover contains a similar graphic to the one shown here for
convenience. This component can be released from its mounting
bracket and lowered down for ease of viewing and access. Use the
tang supplied on the 12 Volt Power Outlet connector or a flat screw
driver to help release the distribution center from the mounting
bracket. (see Figure 3)
