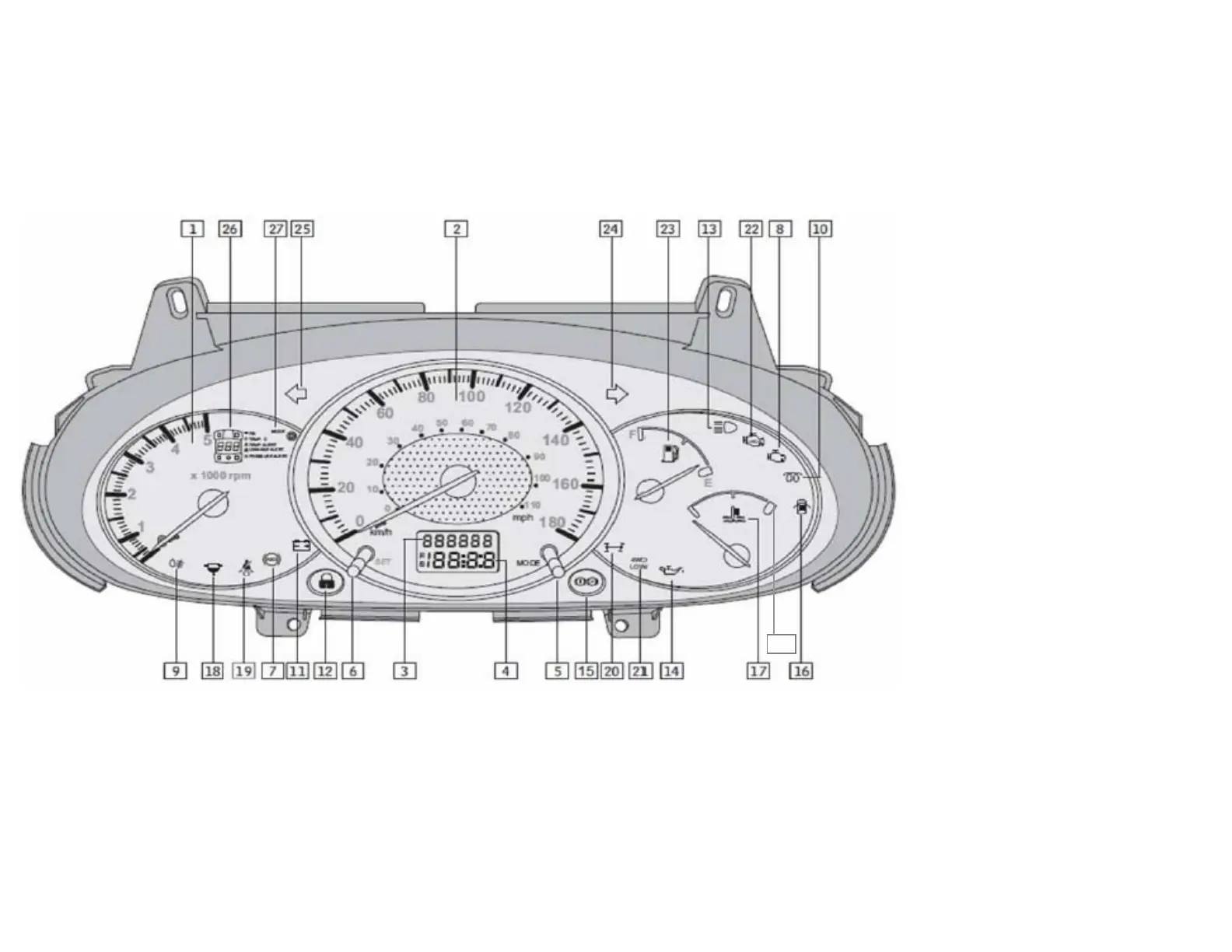

1. TACHOMETER
2. SPEEDOMETER
3. ODOMETER
4. TRIP A/TRIP B/CLOCK
5. MODE KNOB
6. SET KNOB
7. ABS FAULT LAMP
8. TRANSMISSION CHECK LAMP
9. REAR FOG
10. GLOW PLUG
11. BATTERY CHARGING
12. SECURITY SYSTEM
13. HIGH BEAM
14. LOW OIL PRESSURE
15. LOW BRAKE FLUID/
HAND BRAKE/ABS
16. DOOR AJAR
17. TEMPERATURE GAUGE
18. WATER IN FUEL
19. DRIVER SEAT BELT
20. 4WD HIGH
21. 4WD LOW
22. ENGINE CHECK LAMP
23. FUEL GAUGE
24. DIRECTION INDICATOR
25. DIRECTION INDICATOR
26. TPMS DISPLAY
27. TPMS KNOB
28. HIGH TEMPERATURE LAMP
INSTRUMENT CLUSTER – SCORPIO Vlx - AUTOMATIC
28
MAN-00039
Rev1/Sep2008 20
