BODY AIRBAG
SCORPIO
25
CHECK THE RHS PRETENSIONER POSITIVE
LINE FOR ISOLATION FROM POWER
SRSF1
Deactivate the Airbag system. (Follow the procedure given in the Deactivation sheet.)
Turn the ignition key to ON position.

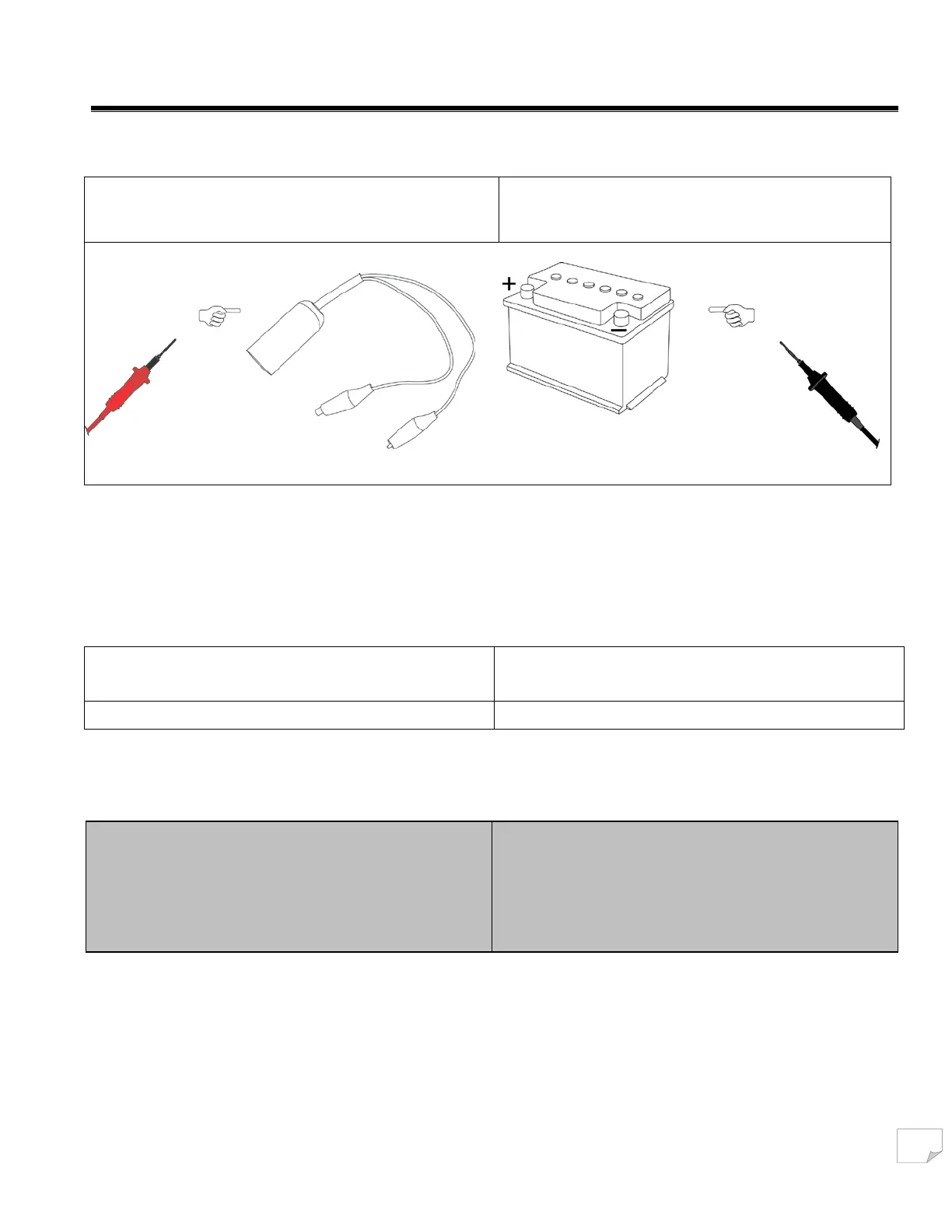

Measure the voltage between:
(+) Red Probe of Multimeter
Vehicle Battery
(-) Black Probe of Multimeter
Airbag Simulator, Fitted in RHS Pretensioner
Is the voltage more than 3.7V?
YES
GO to SRSF2
NO
GO to SRSF3
