BODY AIRBAG
SCORPIO
56

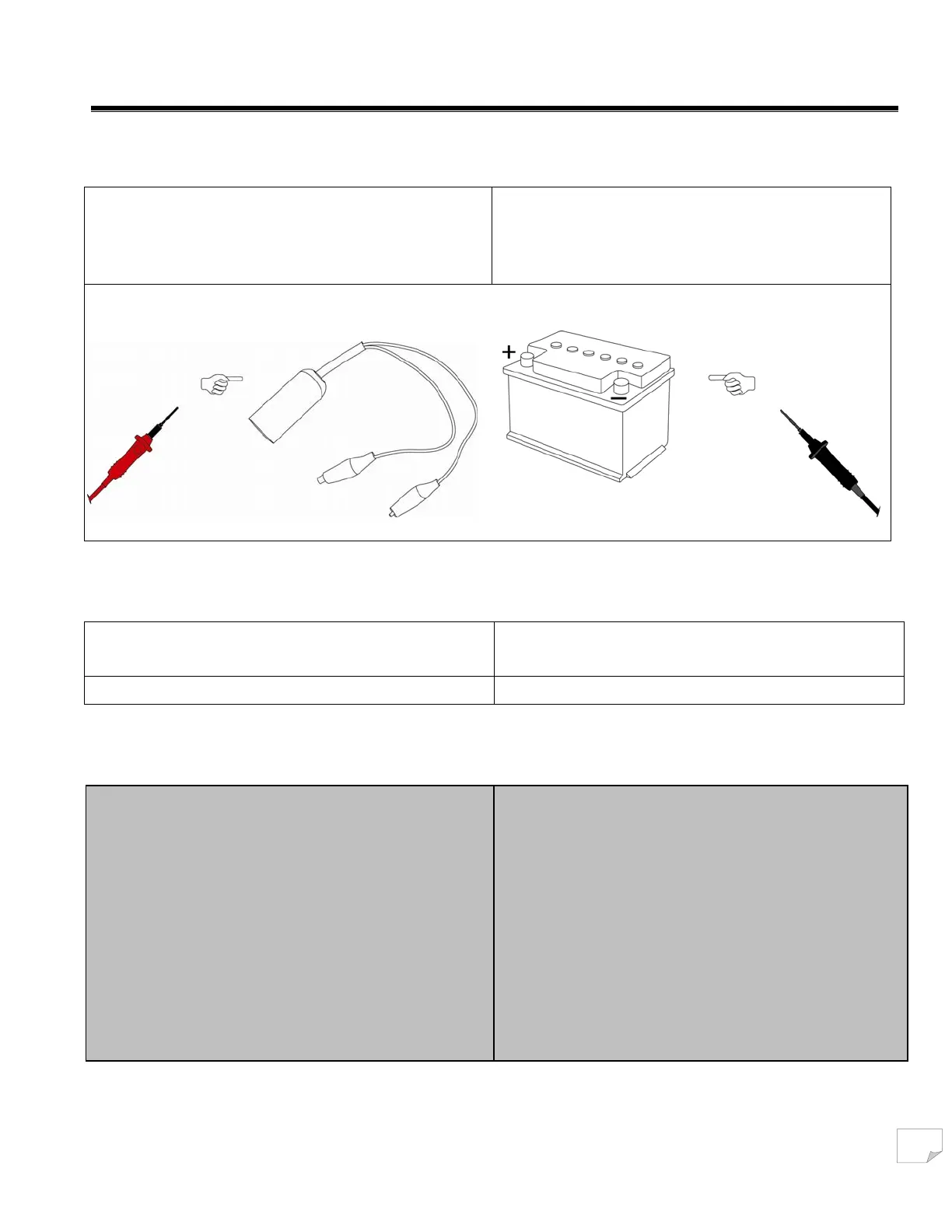

Measure the voltage between:
(+) Red Probe of Multimeter
Airbag Simulator, Fitted with LHS Pretensioner
(-) Black Probe of Multimeter
Vehicle Battery
Black Colour extension Negative Terminal
Is the voltage more than 1.1 V?
YES
An intermittent fault may be present in the wiring
harness. Visually check for chaffed wires or other
physical damage to the harness. If no fault is found
in the circuit, suspect the following component(s):
a) LHS Pretensioner connector.
b) Airbag module connector.
c) Floor Interconnector
d) LHS Pretensioner assembly.
e) Airbag module.
No
GO to SRSG4
CHECK THE LHS PRETENSIONER
NEGATIVE LINE FOR ISOLATION FROM
GROUND
SRSG2
