Mahindra THAR CRDe 2015 - Instrument Cluster and Lamps

© Copyright Mahindra & Mahindra Ltd. 042015
4-1

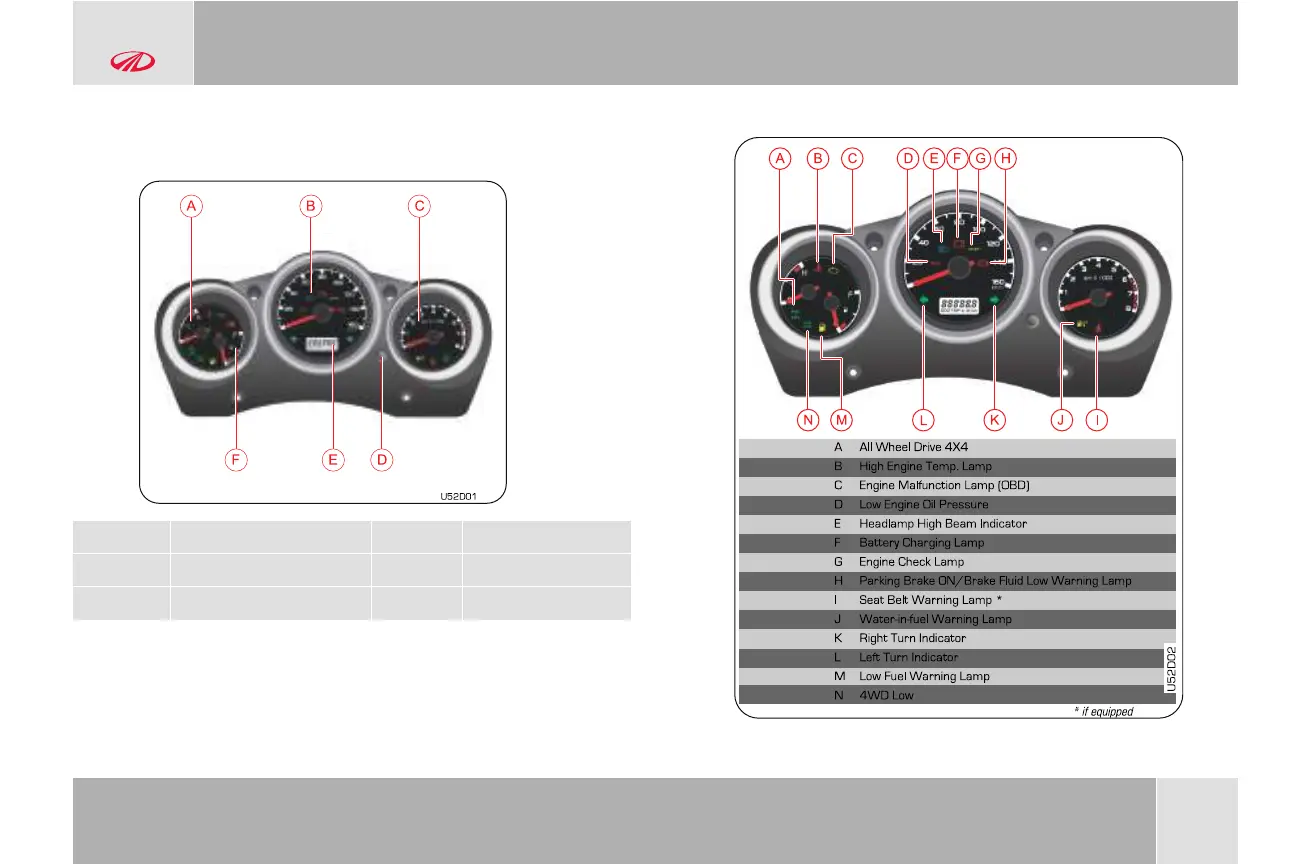

4 INSTRUMENT CLUSTER AND WARNING LAMPS OVERVIEW
4.1 Instrument Cluster
U52D01
A B C
DEF
A
Temperature Gauge
D
Mode/Reset Button
B
Speedometer
E
Odometer/Tripmeter
C Tachometer F
Fuel Gauge
4.2 Warning Lamps
A All Wheel Drive 4X4
B High Engine Temp. Lamp
C Engine Malfunction Lamp (OBD)
D Low Engine Oil Pressure
E Headlamp High Beam Indicator
F Battery Charging Lamp
G Engine Check Lamp
H Parking Brake ON/ Brake Fluid Low Warning Lamp
I Seat Belt Warning Lamp *
J Water-in-fuel Warning Lamp
K Right Turn Indicator
L Left Turn Indicator
M Low Fuel Warning Lamp
N 4WD Low
U52D02
MN J IK
L
A B E GF HDC
* if equipped
INSTRUMENT CLUSTER AND WARNING LAMPS OVERVIEW
