Mahindra THAR m2DiCR User Manual

© Copyright Mahindra and Mahindra Ltd. 062016
12-15

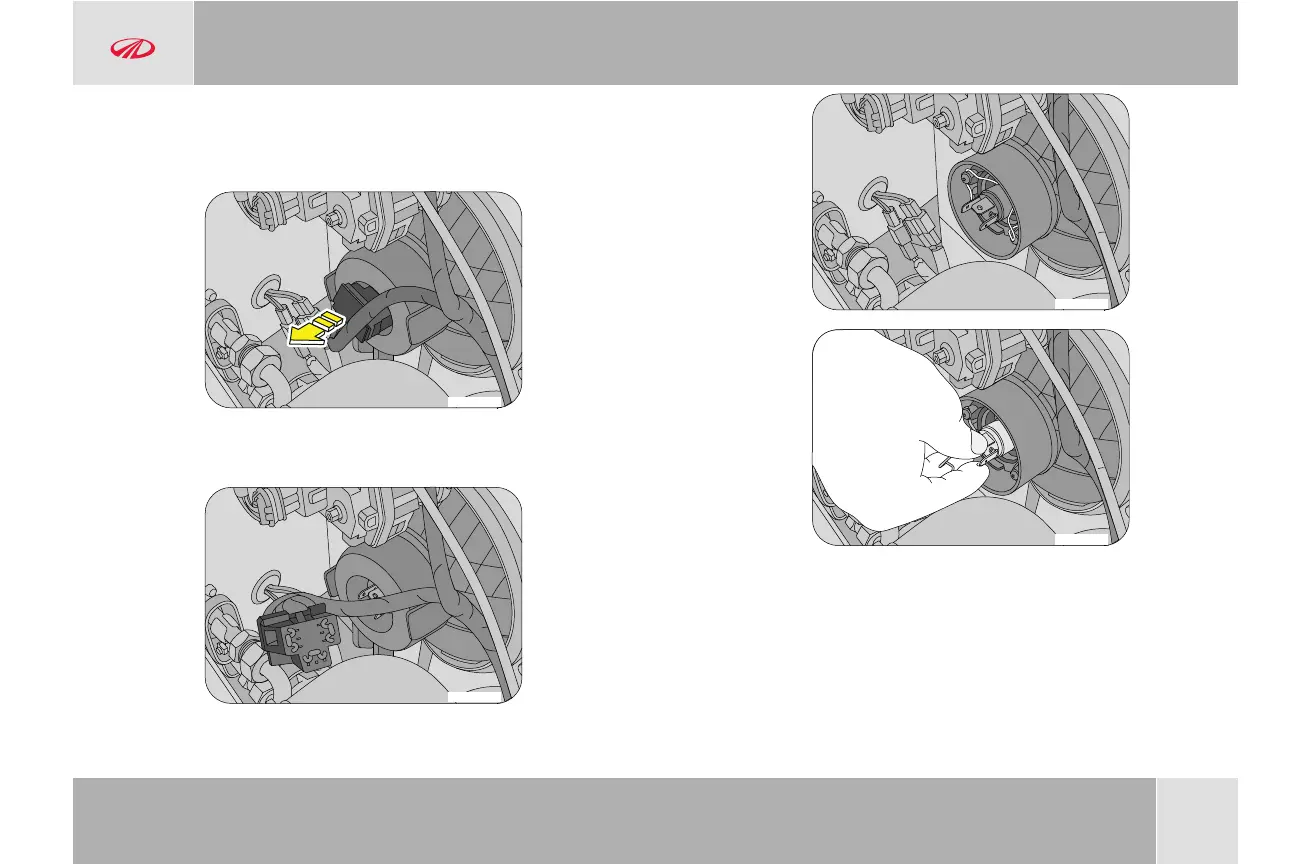

• Remove rear dust cover from the head lamp
• Remove the bulb assembly with connector from the head lamp
by unlocking the wire clamp
U52N13
• Detach the bulb assembly from the wiring connector near to the
head lamp
U52N14
U52N16
U52N15
• Insert the connector into the new bulb (of the same wattage),
and follow the reverse procedure to assemble the bulb assembly
in the headlight assembly
• Clamp the bulb assembly by wire clamp properly
MAINTENANCE
