Mahindra THAR m2DiCR - 2.3 Fuses and Relays

© Copyright Mahindra and Mahindra Ltd. 062016
2-3
2.3 Fuses and Relays

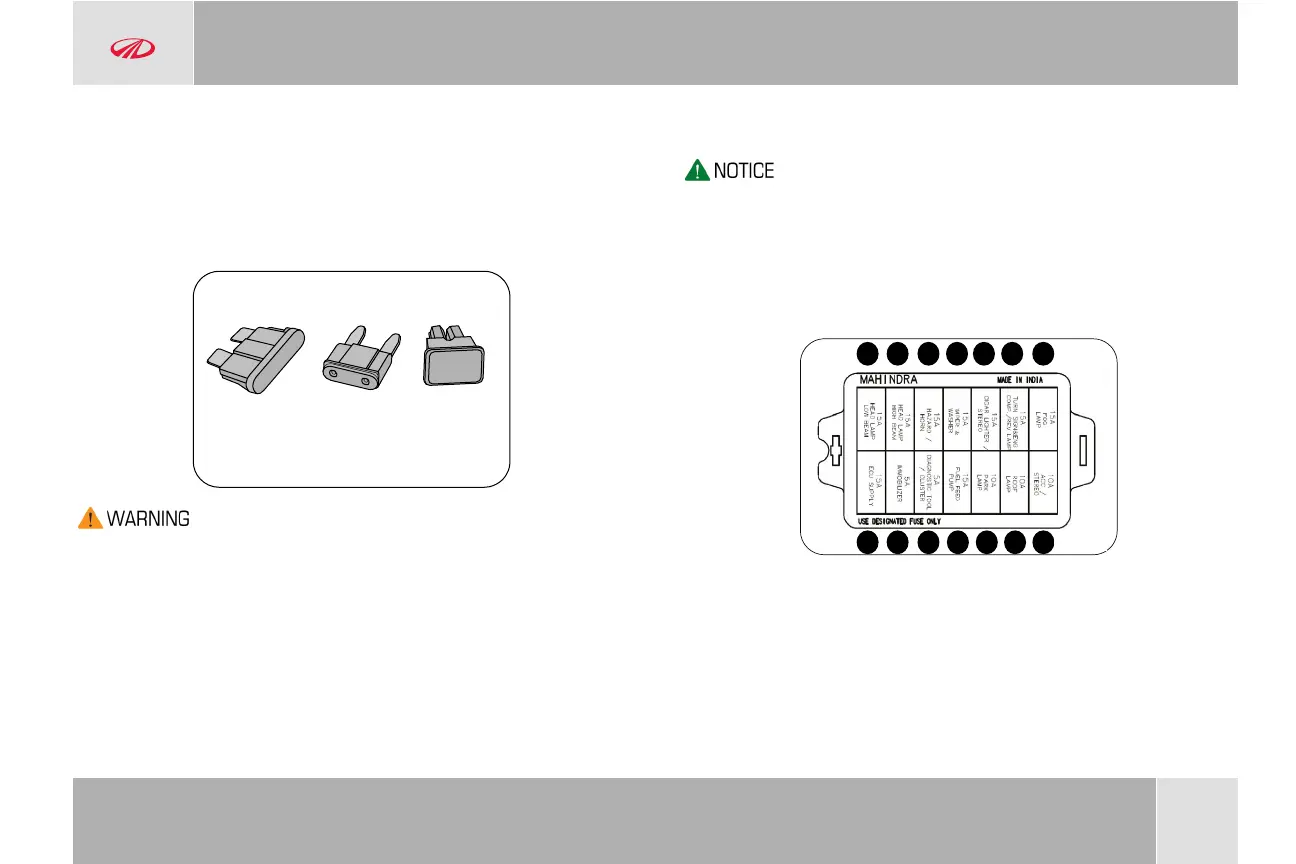

Types of Fuses
• Blade Fuse
• Mini Fuse
• Slow blow Maxi fuse
30A
10
10
BLADE FUSE MINI FUSE SLOW BLOW
MAXI FUSE
Switch OFF the ignition and all electrical equipment before
touching or attempting change a fuse. Use a fuse puller to
remove a fuse. Fit replacement fuse with the same rating as
the one you have removed. Do not modify the electrical system
of your vehicle, contact Mahindra authorized dealer if required.
Blown fuse can be identified by a break in the filament.
2.3.1 Passenger Compartment Fuse Box
Located behind the glove box.
7 6 5 4 3 2 1
14 13 12 11 10 9 8
P12B22
GENERAL
