4.2 Instrument Cluster Overview
E
F
C
H
km
ENGINE
!
0
20
40
60 80
100
120
140
km/h
START
A
STOP
A B C D E
GF
M L
J
K
H
I
P12D02
A Left Turn Indicators H
Battery Charging Warning Lamp
B
Right Turn Indicators
I
High Coolant Temperature Warning Lamp
C
Parking Brake ON/Brake Fluid Low Warning Lamp
J
Check Engine Lamp*
D
Water in Fuel Filter Warning Lamp*
K
Front Fog Lamp Indicator*
E
Head lamp High Beam Indicator
L
Stop Start Lamp*
F
Low Fuel Warning Lamp
M
Low Engine Oil Pressure Warning Lamp
G
OBD Check Lamp*
*If equipped / select models or variants only

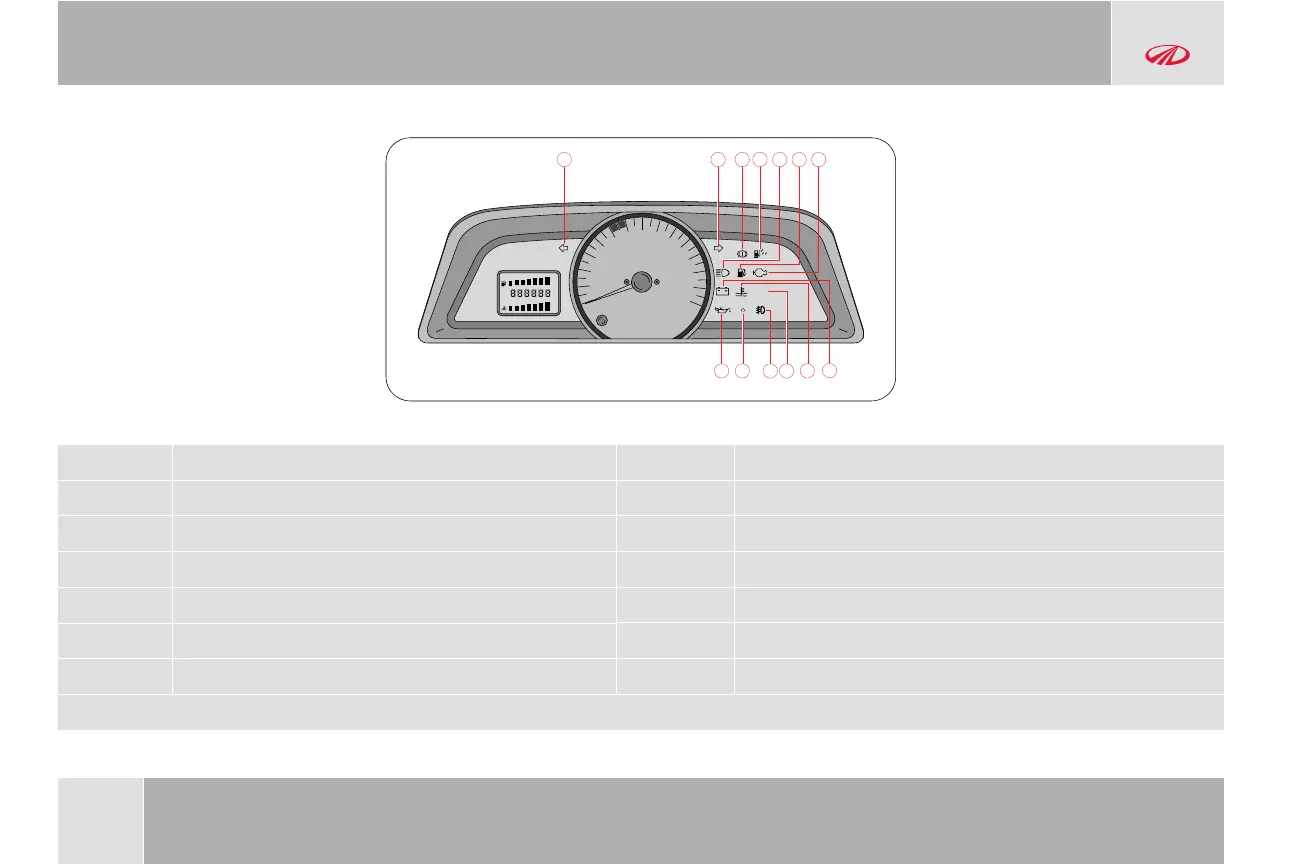

INSTRUMENT CLUSTER AND WARNING LAMPS OVERVIEW
