COOLER MODE: CONNECTING TO THE
TRANSMISSION SYSTEM
1. Add desired amount of transmission fluid to the new fluid tank through the ATX-3 PLUS BOOST fill port.
Monitor fluid level in the ATX-3 PLUS BOOST with the LED readouts or with fluid sight indicators. Do not
pour more than 25 liters of new transmission fluid to the new fluid tank.
2. Locate and disconnect the transmission cooler lines at the most convenient location:
A. At cooler line connecting to radiator usually most accessible if vehicle is not on lift.
B. At clamped rubber hose connection to transmission cooler usually most accessible if vehicle is on
a lift. Cooler is most often in front of the radiator.
C. At cooler line connecting to the transmission usually requires vehicle to be on a lift.

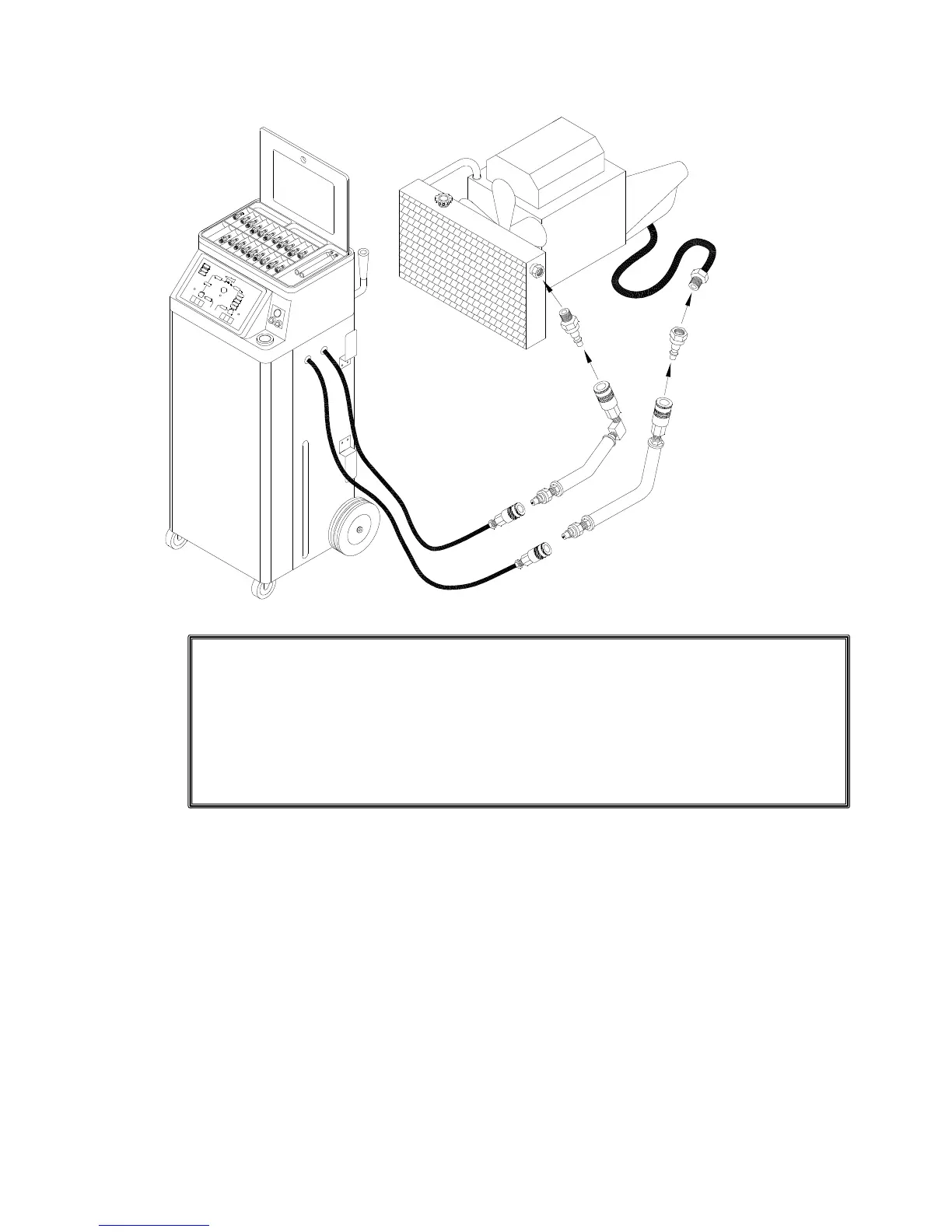

90° Adapter Hose
12 inch
Straight Adapter Hose
Transmission
Fitting
Radiator
12 inch
Adapters
Cooler Lines
560-80414-00
IMPORTANT
Check transmission fluid level according to manufacturer’s
instructions before connecting the ATX-3 PLUS BOOST.
Adjust fluid level if required
