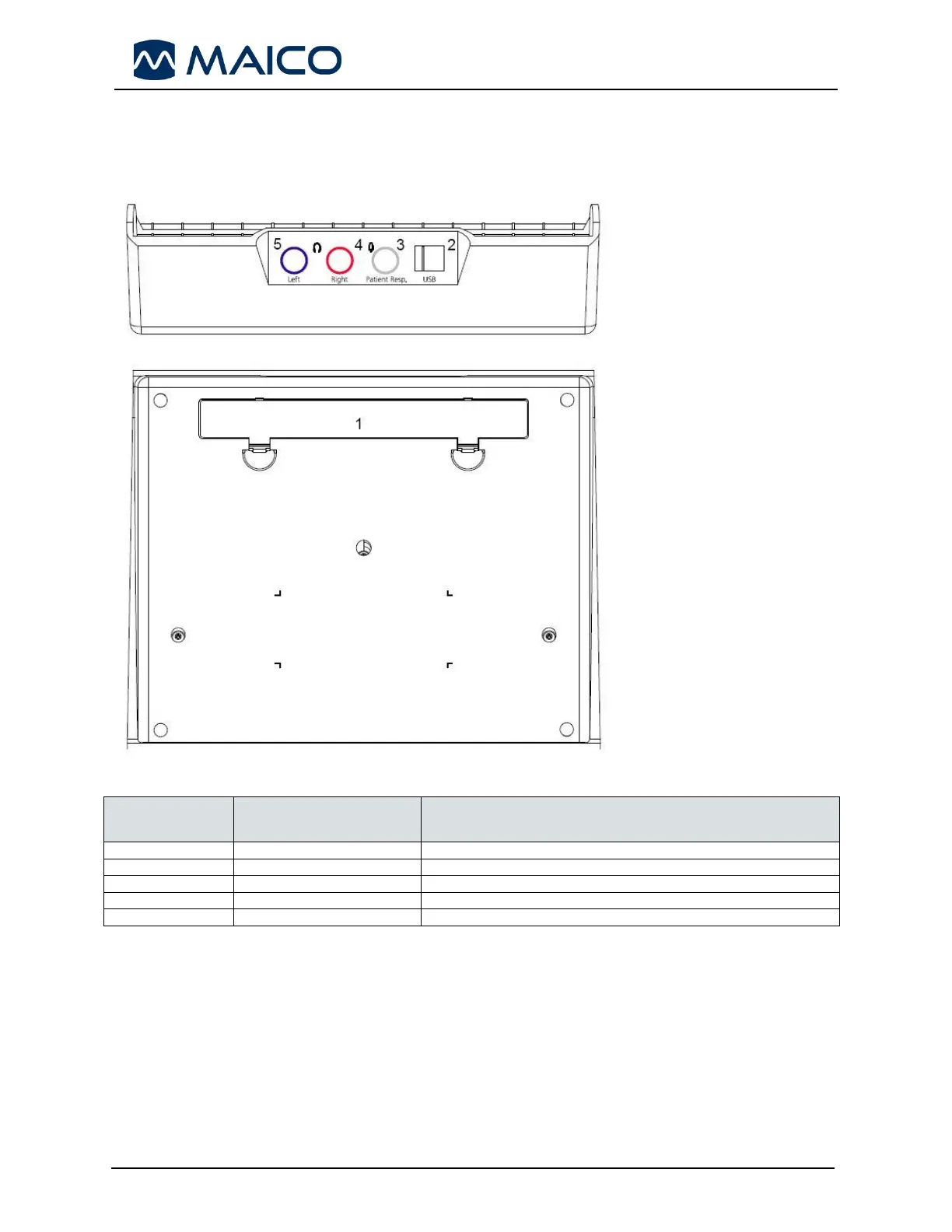

Figure 1 Rear and bottom of the MA 25
2.6. Connecting the accessories
All the connection jacks can be found on the rear side of the MA 25. All the cables and accessories have to be connected
before the instrument is switched on.
Position:
Symbol:
Function:
1
Battery
Compartment for three AA batteries
2
Power / USB
Socket for external power supply
3
Patient Resp.
Socket for patient response switch
4
Right
Socket for right headphone jack
5
Left
Socket for left headphone jack
