12 6 720 607 160

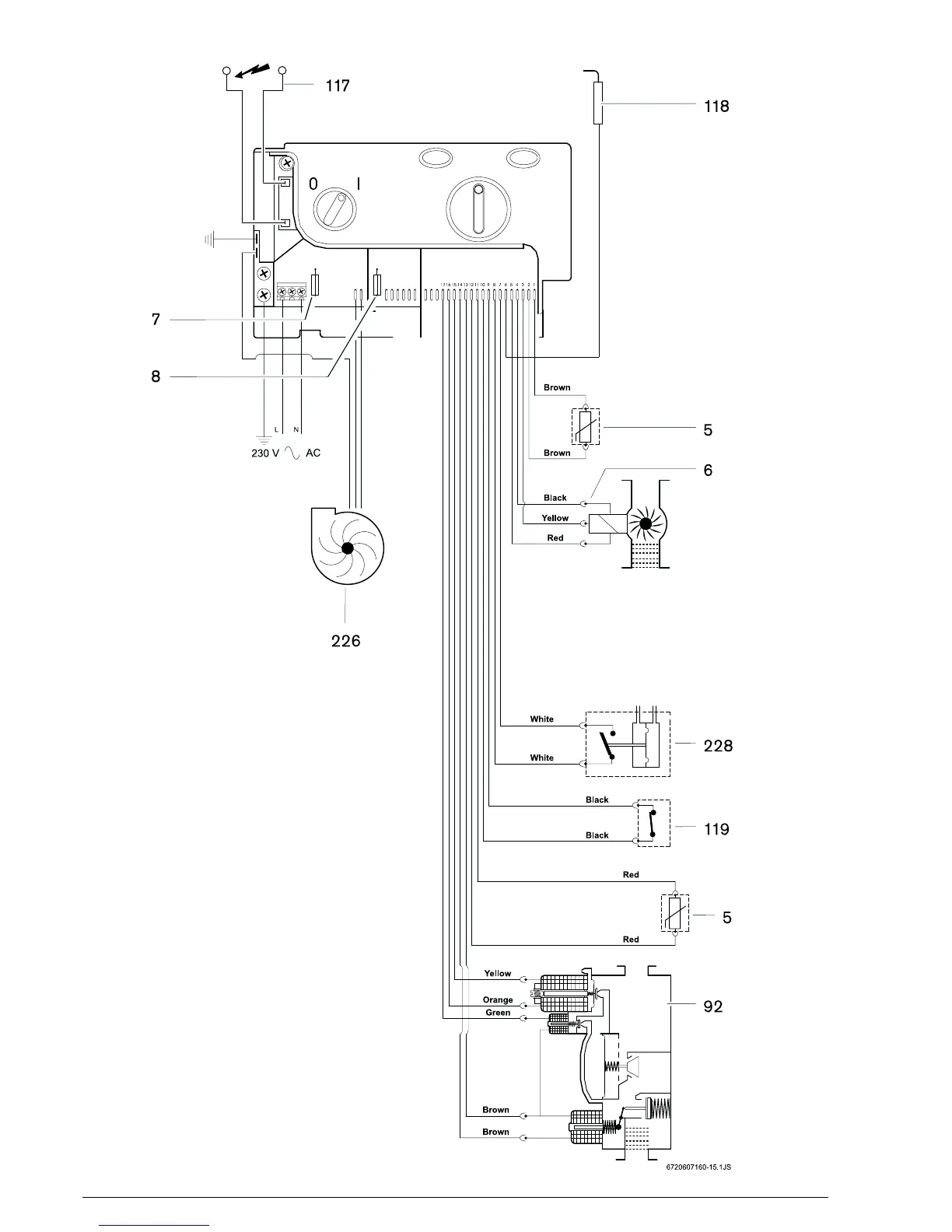

Fig. 8

5 Temperature sensor

6 Water flow sensor

7 Fuse1,25A

8 Fuse 2A

92 Gas valve

117 Ignition electrode

118 Sensing electrode

119 Temperature limit stat

226 Fan

228 Pressure switch
