Majestic CKRUBY30 - Page 3

3
Majestic • CKRUBY30, CKRUBY35 Contemporary Kit Instructions • 2542-939 Rev. B • 2/19

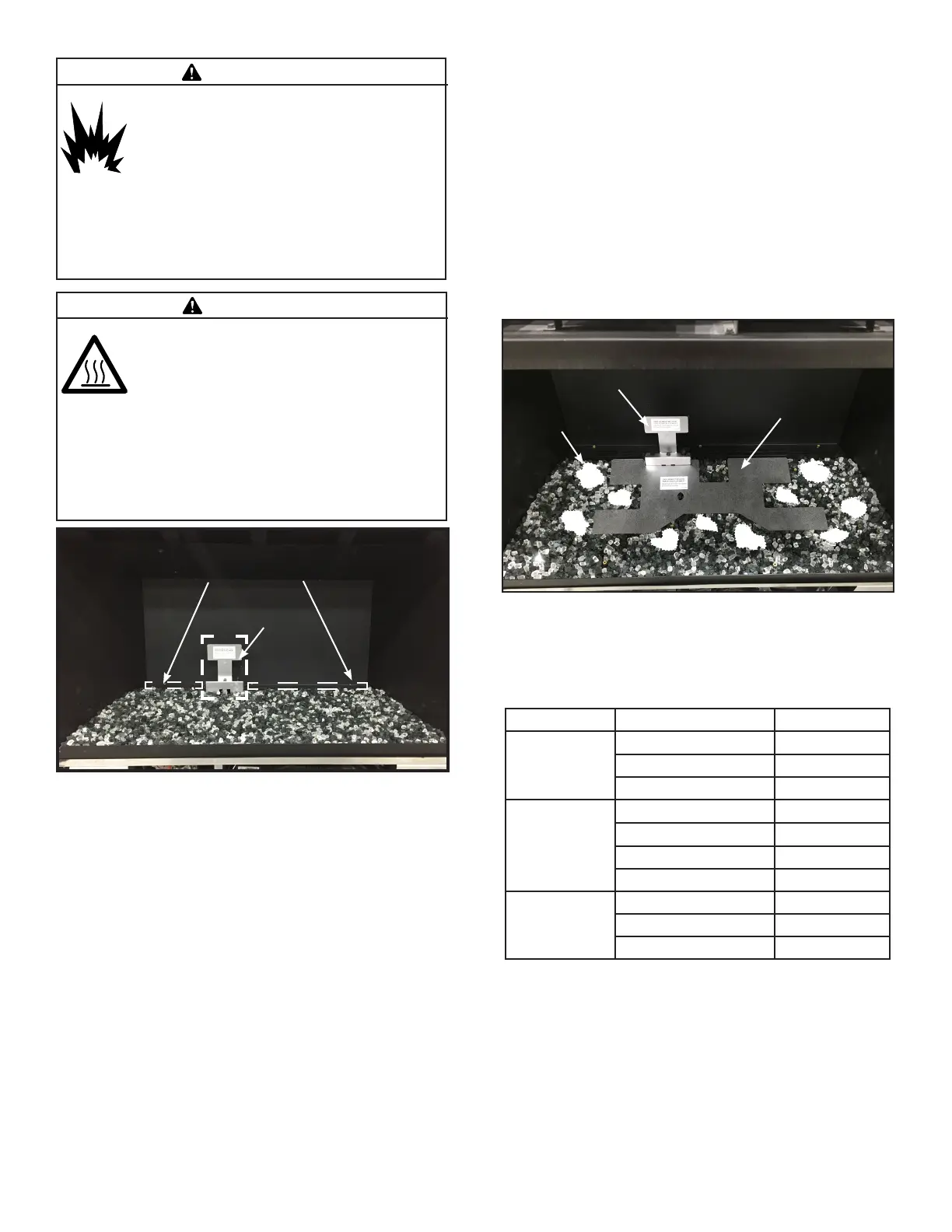

Figure 4. Stone Jig in Place
WARNING
Risk of Asphyxiation or Fumes.
• Place media according to instructions.
• Do NOT place media in area between glass and
rebox.
• Do NOT place media in a position that they may
fall into area between glass and rebox.
• Do NOT use any media other than the media
supplied with this replace.
Fireplace will not function properly.
Gas leak may occur.
WARNING
Delayed Ignition Risk
• Place media according to instructions.
• Do NOT place media in a position that they may
fall into area in front of pilot.
• Do NOT use any media other than the media
supplied with this replace.
• Do NOT exceed one layer of media on base pan.
Fireplace will not function properly.
Delayed ignition may occur.
12. If installing a stone kit, refer to the instructions in
the next section.
13 Remove rock stop.
Consumer: Retain rock stop for future maintenance
or service needs.
14. Reinstall seal plate, glass assembly and decorative
front.
15. Re-connect electrical supply and turn on gas.
Service Parts
MODEL DESCRIPTION PART NUMBER
CKRUBY30
Burner Assembly 2535-007
Exhaust Bafe 2535-138
Base Pan 2542-131
CKRUBY35
Burner Assembly 2536-007
Exhaust Bafe 2536-138
Base Pan 2544-131
Insulation Board 2536-158
BOTH
Rock Stop Assembly 2535-197
Stone Placement Jig 2542-198
Pilot Shield 2535-120
Note: A tall, deep orange ame should be avoided; this
type of ame may cause increased soot residue. If this
type of ame is noticed, try adjusting the media directly
beneath the ame. If all ames appear to be tall and deep
orange in color, then open the primary air shutter.
Please contact your Majestic dealer with any questions
or concerns.
For the location of your nearest Majestic dealer,
please visit www.majesticproducts.com.
Majestic, a brand of Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.majesticproducts.com
Installing Stone Kit
NOTE: Rock Stop Jig must be in place to install
stones.
1. Place stone jig on glass media with “STONE JIG” fac-
ing up. Ensure that the stone jig sits ush against the
rock stop. See Figure 4.
2. Place stones in a random manner in the open spots on
the base pan.
3. Remove stone jig and then the rock stop.
Consumer: Retain both stone jig and rock stop for
future maintenance or service needs.
Figure 3. Glass Media Installed
WARNING! Glass seal plate must be properly installed
Risk of elevated component temps and carbon monox-
ide exposure.
ROCK STOP
REAR MEDIA LEDGE
ROCK STOP
STONE JIG
STONES
