Majestic • MDVI30IN, MDVI35IN, MDVI30IL, MDVI35IL Owner’s Manual • 2205-981 Rev. G • 7/18
Beginning Manufacturing Date: April 2016
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
11.1 Grommet, 3 Hole SRV2118-420
11.2 Pilot Shield 2206-120
11.3
Pilot Assembly NG 2202-013
Y
Pilot Assembly Propane 2202-014
Y
11.4
Ori ce NG (#36C) MDVI30IN 582-836
Y
Ori ce Propane (#52C) MDVI30IL SRV582-852
Y
Ori ce NG (#33C) MDVI35IN 582-833
Y
Ori ce Propane (#51C) MDVI35IL 582-851
Y
11.5
Flexible Gas Connector 530-302A
Y
11.6
Control Panel Bracket 2205-128
11.7 Valve Bracket 2205-146
11.8
Flex Ball Valve Assembly SRV302-320
Y
11.9
Valve NG 2166-302
Y
Valve Propane 2166-303
Y
11.10
Brass Connector Pkg of 5 303-315/5
Y
11.11
Remote Jumper Wire 2103-013
Y
11.12
Jumper Wire SRV2187-198
Y
11.13
Battery Pack SRV2166-323
Y
11.14
Power Supply SRV2326-131
Y
11.15
Wire Harness 2166-304
Y
11.16
Module 2166-347
Y
11.17
AUX RC200 2166-325
Y
Additional service part numbers appear on following page.

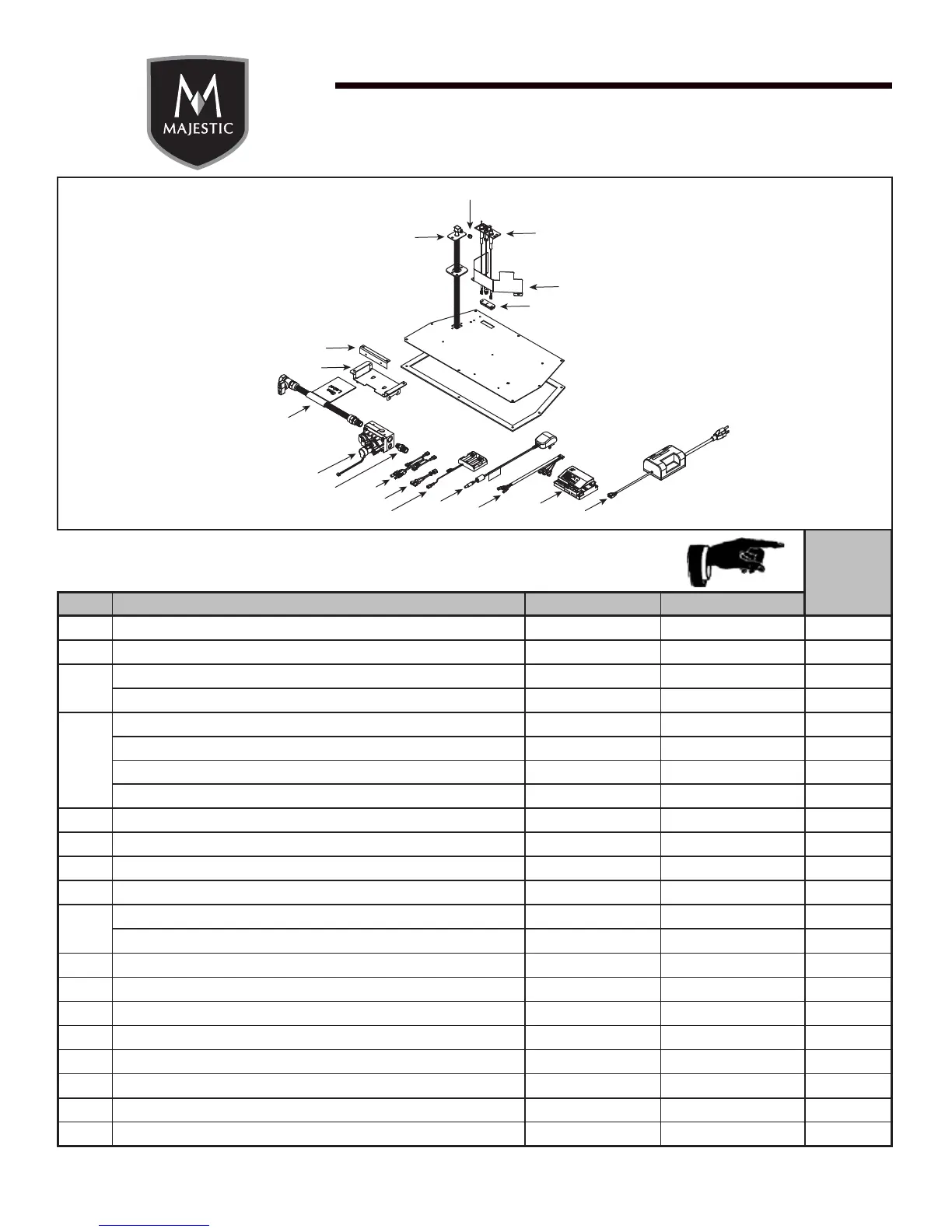

#11 Valve Assembly
11.1
11.2
11.3
11.4
11.5
11.6
11.7
11.8
11.9
11.10
11.11
11.12
11.13
11.14
11.15
11.16
11.17
MDVI30IN, MDVI30IL, MDVI35IN, MDVI35IL
