5
Microphone2

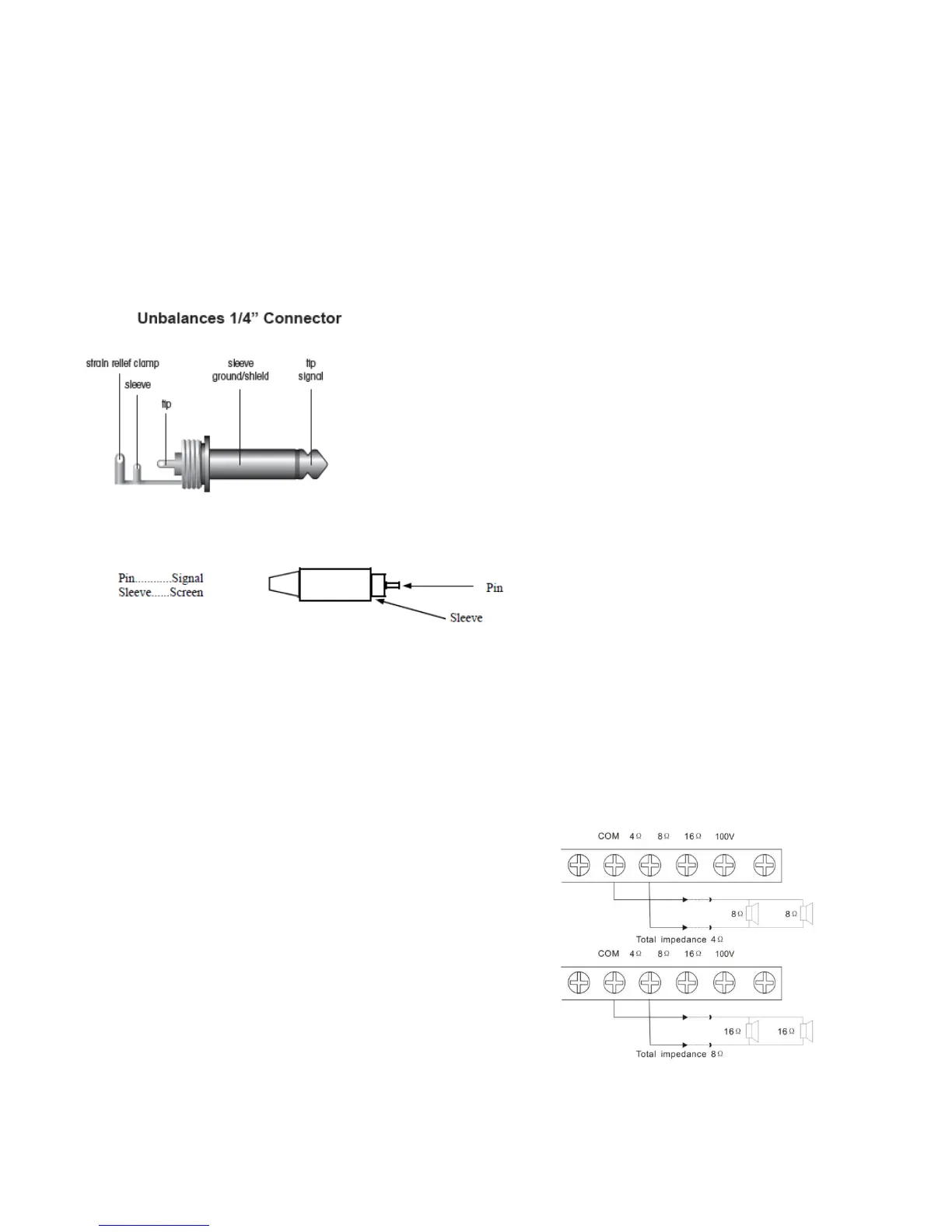

Mic2 input is a Unbalanced standard 1/4〃mono jack on the rear panel .
Wiring is as follows
AUX/CD Connection
AUX/CD input is two phono sockets .These inputs are configured as AUX Or CD inputs
Speaker Output
These terminals are offering 3 low-z outputs 4Ω, 8Ω, 16Ω depending on your speaker combination. A 70V/100V
Hi-z output is also available. Please note that one wire only should be connected to COM screw and one wire to
the selected impedance or voltage. Multiple combinations cannot be done at the output level.
Four different types of connections are provided. The low impedance section: 4Ω, 8Ω, 16Ω is designed for a small
amount of speakers to be connected to your amplifier. The
100V section is especially designed for a multiple speaker
distribution. When using the 100V output, speakers have to be
equipped with 100V transformer. The maximum amount of
