Make Noise Rene - Installation Guide; Electrocution Hazard Warning

5
-12V
Electrocution hazard!
Always turn the Eurorack case o and unplug the power cord before plugging or unplugging any Eurorack
bus board connection cable. Do not touch any electrical terminals when attaching any Eurorack bus
board cable.
The Make Noise 3FOÏ is an electronic music module requiring mA of +12VDC and mA of
-12VDC regulated voltage and a properly formatted distribution receptacle to operate. It is designed to be
used within the Eurorack format modular synthesizer system.
Go to http://www.makenoisemusic.com/ for examples of Eurorack Systems and Cases.

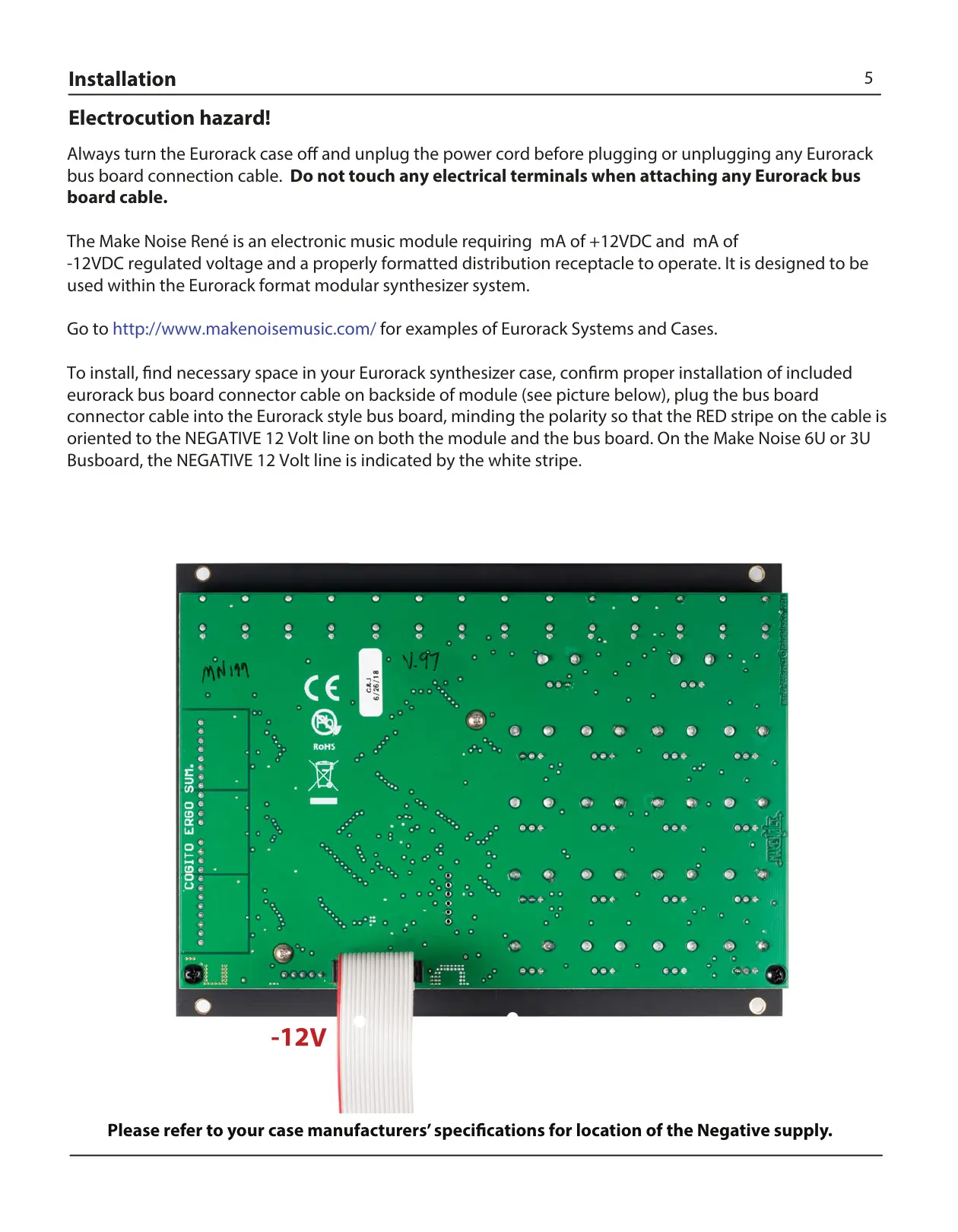

To install, nd necessary space in your Eurorack synthesizer case, conrm proper installation of included
eurorack bus board connector cable on backside of module (see picture below), plug the bus board
connector cable into the Eurorack style bus board, minding the polarity so that the RED stripe on the cable is
oriented to the NEGATIVE 12 Volt line on both the module and the bus board. On the Make Noise 6U or 3U
Busboard, the NEGATIVE 12 Volt line is indicated by the white stripe.
Please refer to your case manufacturers’ specications for location of the Negative supply.
Installation
