Makeblock m Bot mega - Chassis Assembly - Wheels and Tracking Sensors; Mount Mecanum Wheels; Mount Line Tracking Sensors

󾙚
󾙛
󾙖
󾙔󾙘󾙔󾙚󾙖

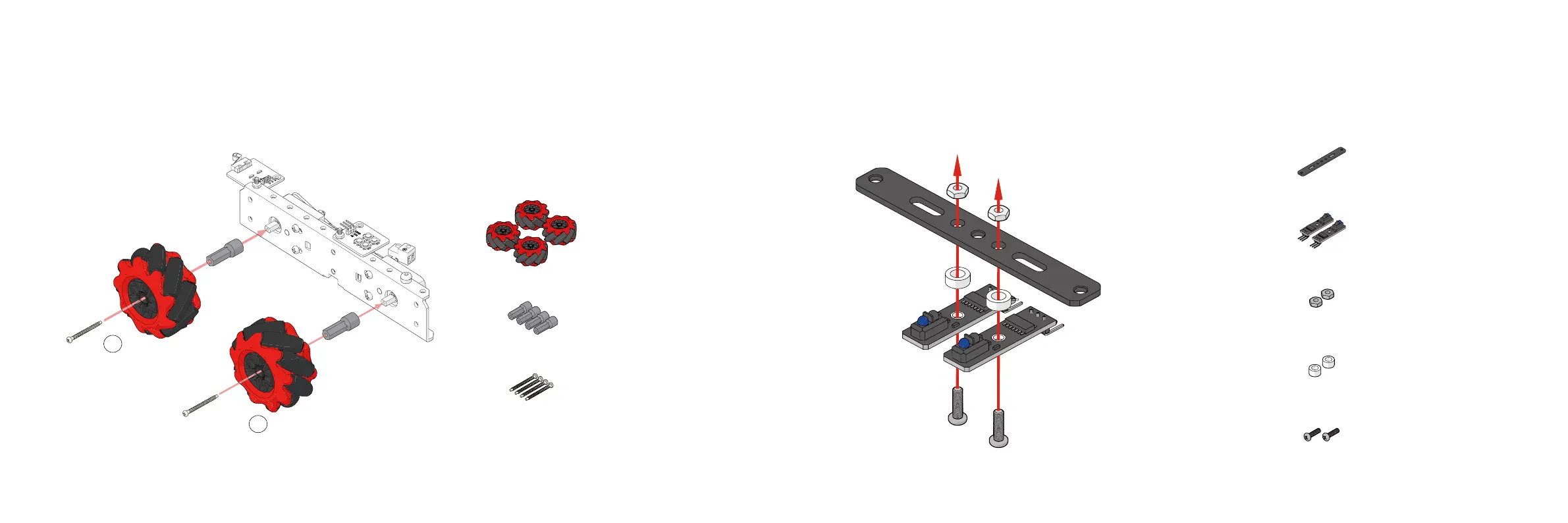

Mount Mecanum wheels to the motor bracket
󾙔

󾙔󾙘󾙒


󾙓
󾙔
󾙔
󾙕󾙔
󾙕󾙓󾙒󾙔
Mount Line tracking sensors to the connector bracket
⚠If Plastic Spacer is not used, the metal case will short-circuit the electronic module.
⚠There are two kinds of Mecanum wheels, L and R, it should be as shown in the picture on
the right after installation(You can distinguish the wheels by the L, R mark on the inside of the
Mecanum wheels and the direction of the roller)
