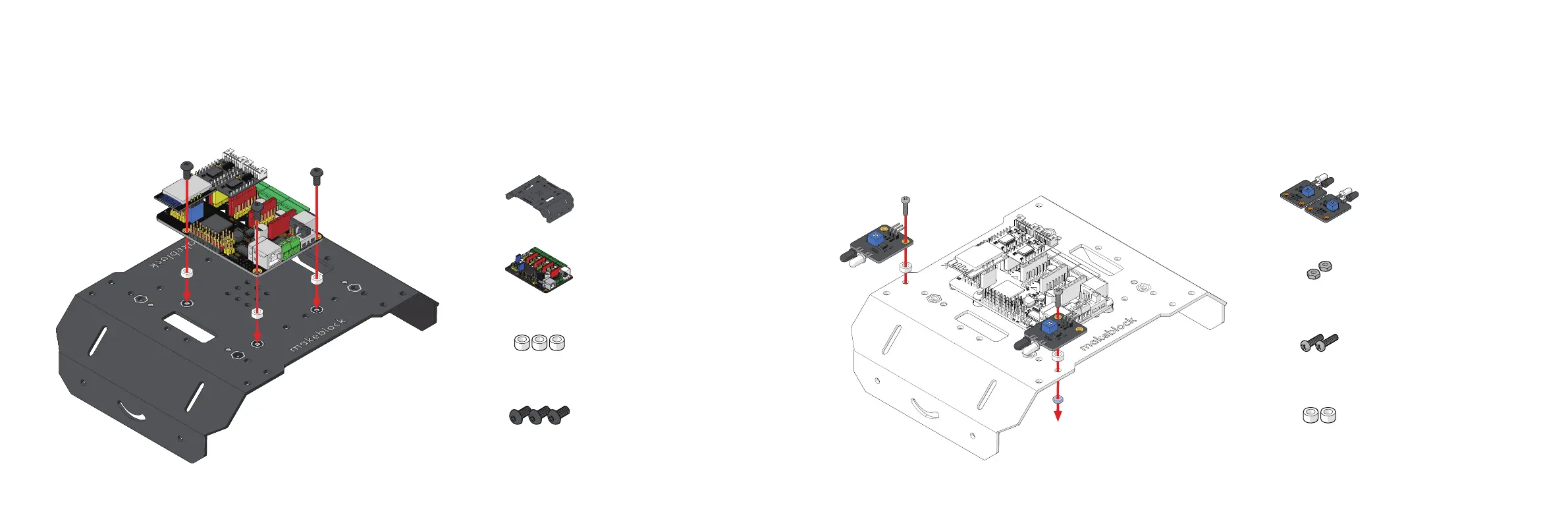

Makeblock mBot mega - Mount MegaPi and Sensors to Body Shell; Mount MegaPi to the body shell; Mount IR proximity sensors to body shell

mBot Mega_说明书_D1.1.6_KD010396000_Print.indd 4-1 2021/4/23 下午4:09
4
5


Body Shell x1
MegaPi x1
Plastic Spacer x3
Screw M4*8 x3


IR Proximity Sensor x2
M3 Hex Lock Nut x2
Plastic Spacer x2
Screw M3*10 x2
