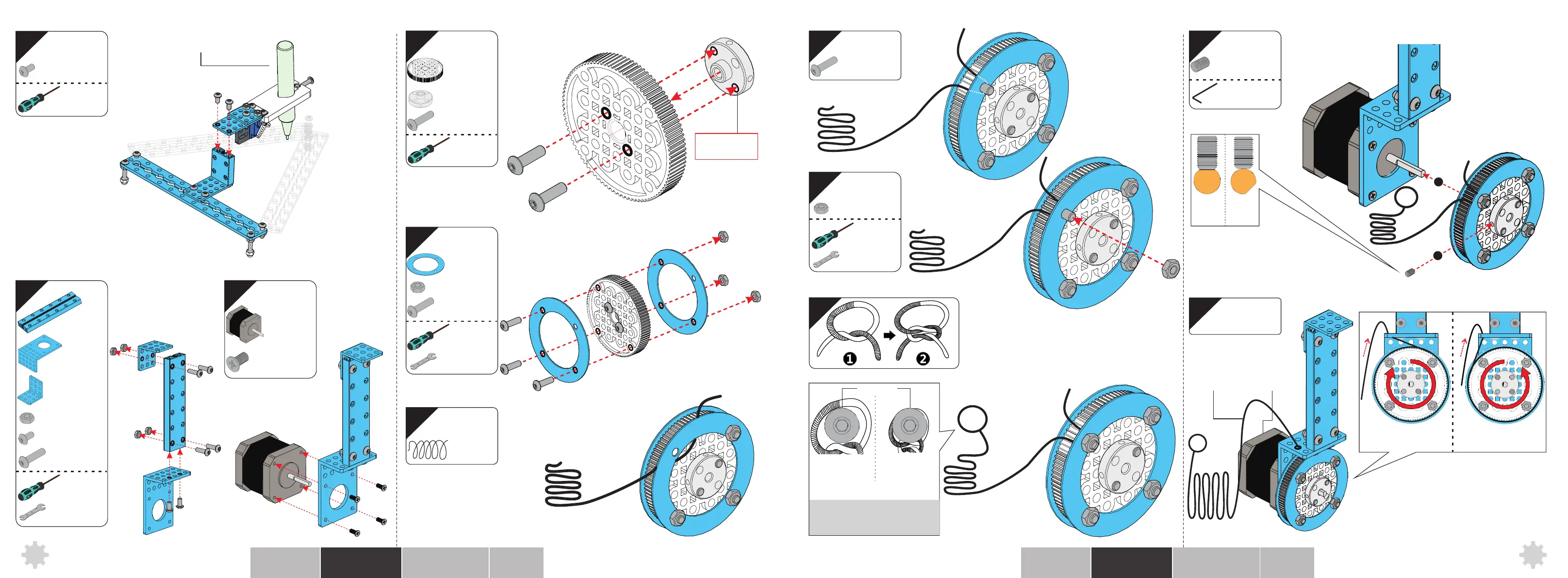

Makeblock mDrawBot Kit - Page 12

5
Screw M4×8(2)
Pen Lift Mechanism
6
(1)
(1)
Screw M4×8(2)
(1)
Screw M4×16(4)
7
(1)
Screw M3×8(4)
Nut M4(4)
×2 ×2
mScara mSpider
8
(1)
(1)
Screw M4×16(2)
9
Screw M4×16(3)
(2)
Nut M4(3)
10
2m(1)
×2
×2
×2
※The length of the string is
around 8 meters, you can cut it
into 2 strings with 4 meters
each at most.
mEggbot mCar
Threaded Hole
11
Screw M4×16(1)
12
Nut M4(1)
13
×2
Screw M4
The size of the circle should be
bigger than the head of screw
M4.
O
X
14
Screw M3×5(1)
1.5mm
×2
×2
×2
1
2
O
X
15
Motor AString A
O X
21
20
mScara mSpider mEggbot mCar
