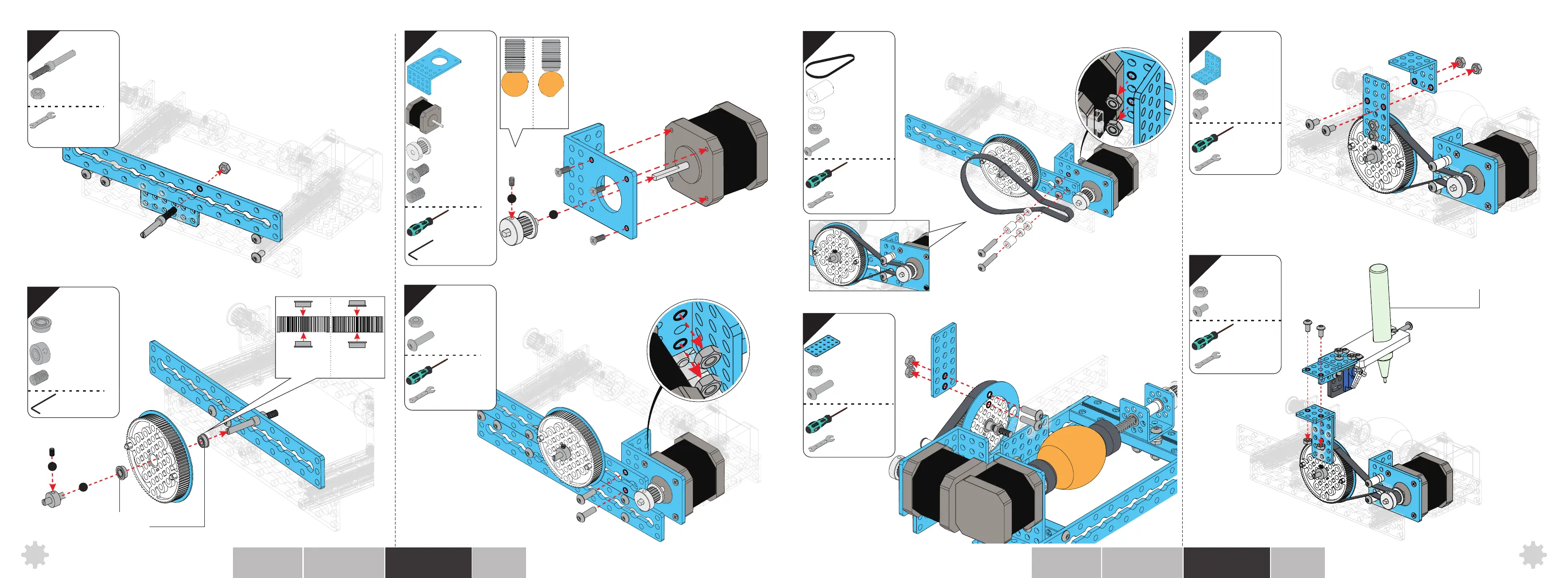

Makeblock mDrawBot Kit - Page 16

18
(1)
(1)
Screw M3×5(1)
(1)
Screw M3×8(3)
O
X
1
2
19
Screw M4×16(2)
Nut M4(2)
20
112MXL(1)
4×7×3(4)
4×7×10(2)
Nut M4(2)
Screw M4×22(2)
21
Screw M4×16(2)
(1)
Nut M4(2)
22
Screw M4×8(2)
Nut M4(2)
(1)
23
Screw M4×8(2)
Nut M4(2)
Pen Lift Mechanism
1.5mm
28 29
16
(1)
Nut M4(1)
17
(1)
Screw M3×5(1)
1.5mm
(2)
Flange Bearing
4×8×3
O
X
1
2
