Here is a quick guide for you to get started easily.

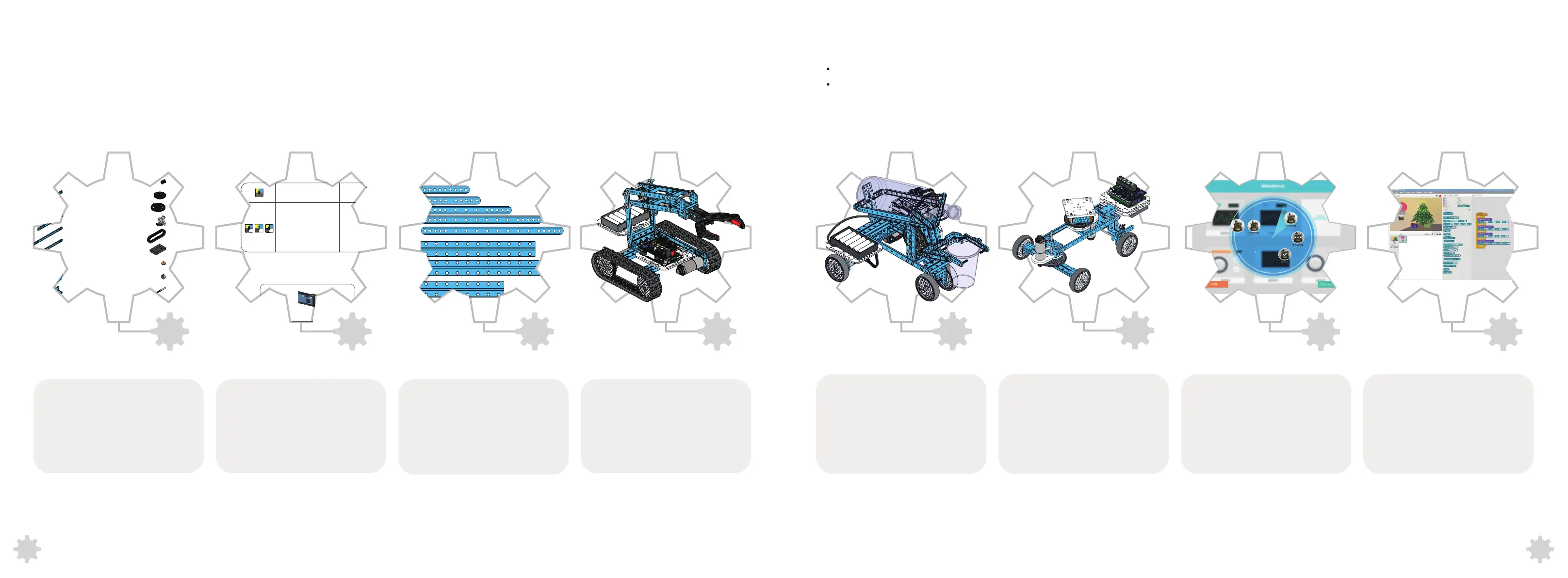

Quick Guide
3
2
Reference for Parts Robotic Arm Tank Camera Dolly
Beverage Robot
4 5
Basic KnowledgePart List
14 16
30
42
Check the parts of Ultimate 2.0
according to the Part List .
Explain in detail how to use the
instructions for you.
A reference with a ratio of 1:1 provides
an easier way for you to distinguish
parts of Ultimate 2.0.
Robotic Arm Tank uses its gripper to grip
and deliver objects.
Control Beverage Robot to pour
water via the companion app.
By adding a smartphone or a digital
camera, Camera Dolly can film your life
from a low angle.
Control your robot with smartphone,
tablet, and computer.
54 55
App Programming
Ultimate 2.0 supports graphical program-
ming to realize more interesting
interactions. Or combine Ultimate2.0 with
Raspberry Pi to realize Python program-
ming.
Part List
1× Plane Bearing TurntableD34x24mm
1× Quick Release Plate
4× Stiffener1616-08-M4
6× Shaft Connector 4mm
4× Beam0824-016
5× Beam0824-032
3× Beam0824-064
2× Beam0824-128
1× Slide Beam0824-176
2× Slide Beam0824-192
2× Beam0808-024
2× Beam0412-220
6× Beam0412-188
4× Beam0412-140
4× Beam0412-092
4× Beam0412-076
3× Plate0324-088
2× Plate0324-056
2× Bracket P3
1× Plate 7×9-B
2× Plate 3×6
4× Bracket 3×3
3× 25mm DC Motor Bracket
2× 25mm Motor Bracket-72T
2× MegaPi Acrylic Bracket
4× Rubber Blanket
4× Tire 90T B
6× Plastic Timing Pulley 90T
3× Plastic Gear 8T
2× Plastic Gear 56T
6× Threaded Shaft 4×39mm
12× Shaft Collar 4mm
12× Flange Copper Sleeve 4×8×4mm
1× Battery Holder 6AA
2× Track 80×139mm
1× 360°Mobile Phone Bracket
2× Plastic Gear 72T
2× 4mm D shaft 50mm
20× Plastic Rivet 4100
20× Plastic Rivet 4120
2× Plastic Ring 4×7×10
8× Plastic Ring 4×7×3
4× Plastic Ring 4×7×2
4× Brass Stud M4×16
1× 4mm D shaft 160mm
2× Shaft D4×88mm
20× Plastic Rivet 4060
12× Headless Set Screw M3×5
8× Headless Set Screw M3×8
6× Countersunk Screw M3×8
4× Countersunk Screw M3×10
50× Screw M4×8
46× Screw M4×14
2× 25mm DC Encoder
Motor 9V/185RPM
1× 25mm DC Encoder
Motor 9V/86RPM
10× Nylon Lock Nut M4
47× Nut M4
4× Screw M4×30
4× Screw M4×22
10× Screw M4×16
1× Makeblock Robot Gripper
1× Me Line Follower
1× Me Shutter
1× Me Ultrasonic Sensor
1× Bluetooth Module
1× Megapi Shield for RJ25
4× Megapi Encoder/DC Motor Driver
1× MegaPi
3× 25mm DC Encoder Motor Cable
1× Me 3-Axis Accelerometer
and Gyro Sensor
1× Me Adapter
1× USB Cable B-1.3m
2× 6P6C RJ25 Cable-20cm
1× 6P6C RJ25 Cable-35cm
10× Rubber Bank
10× Nylon Cable Tie 1.9×100
1× Wrench 5mm&7mm
1× Small Fourway Socket Wrench
1× HEX Key 1.5mm
1× Cross&2.5mm HEX Screwdriver
Bluetooth Communication Module
Hardware serial port
Me Bluetooth
Me Bluetooth Module
(DualMode)
Me Ultrasonic Sensor
Me RGB LED
Me Limit Switch
Me 7 Segment Serial Display
Me PIR Motion Sensor
Me Shutter
Me Line Finder
Me Infrared Receiver Decode
Me 3 Axis Accelerometer
and Gyro Sensor
Me Light and Grayscale
Sensor
Me Potentiometer
Me Joystick
Me 4Button
Me Sound Sensor
One way digital interface
Dual digital interface
I²C port
Dual & one way analog interface
WARNING
Keep this kit out of the reach of children or animals.
Small parts may cause choking or serious injury if swallowed.
