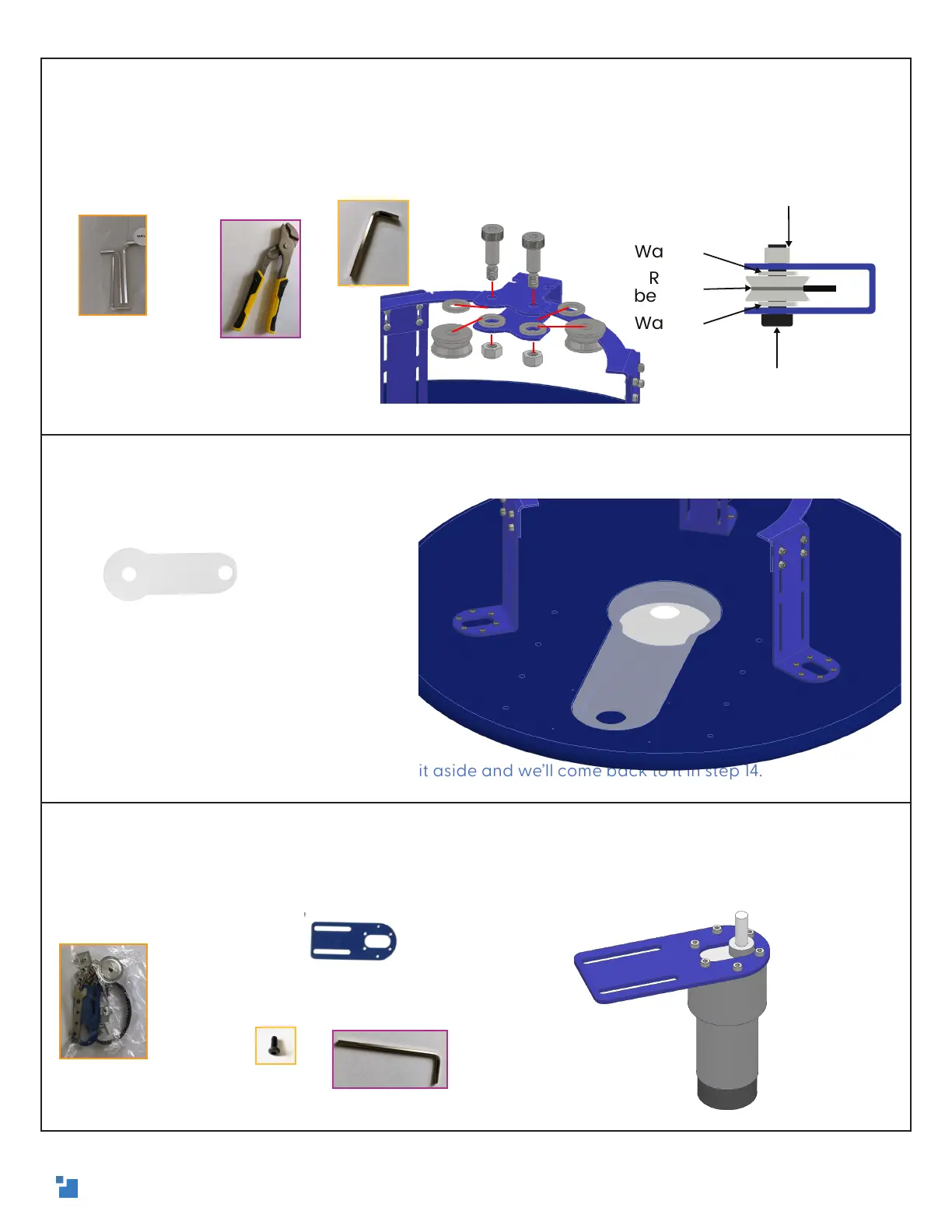

4. Assemble both roller bearing carriages by inserting the shoulder bolt through larger
carriage hole, then through a washer, the ring bearing, another washer, and out though
the smaller side of the roller bearing carriage. Use the largest (5mm) hex wrench on one
end and 13mm combo wrench (or any wrench) on the other to tighten.
5. Remove the protective plastic on each side of the acrylic dust cover. Then place it over
the dust collection slot.
Drew’s Note: The sled assembly is done! Place it aside and we’ll come back to it in step 14.
6. Attach the Z motor (removed from your Maslow) to the Z motor bracket. Align the
motor shaft in the slot closest to the end of the bracket. Use the small black bolts and the
2mm hex wrench.
Shoulder
Ring
bearing
Washer
Washer
Nut
Assembly Tools
Bag I
Z Axis
Bag C
Z motor bracket
Acrylic dust cover
8
