M2 ASSEMBLY GUIDE

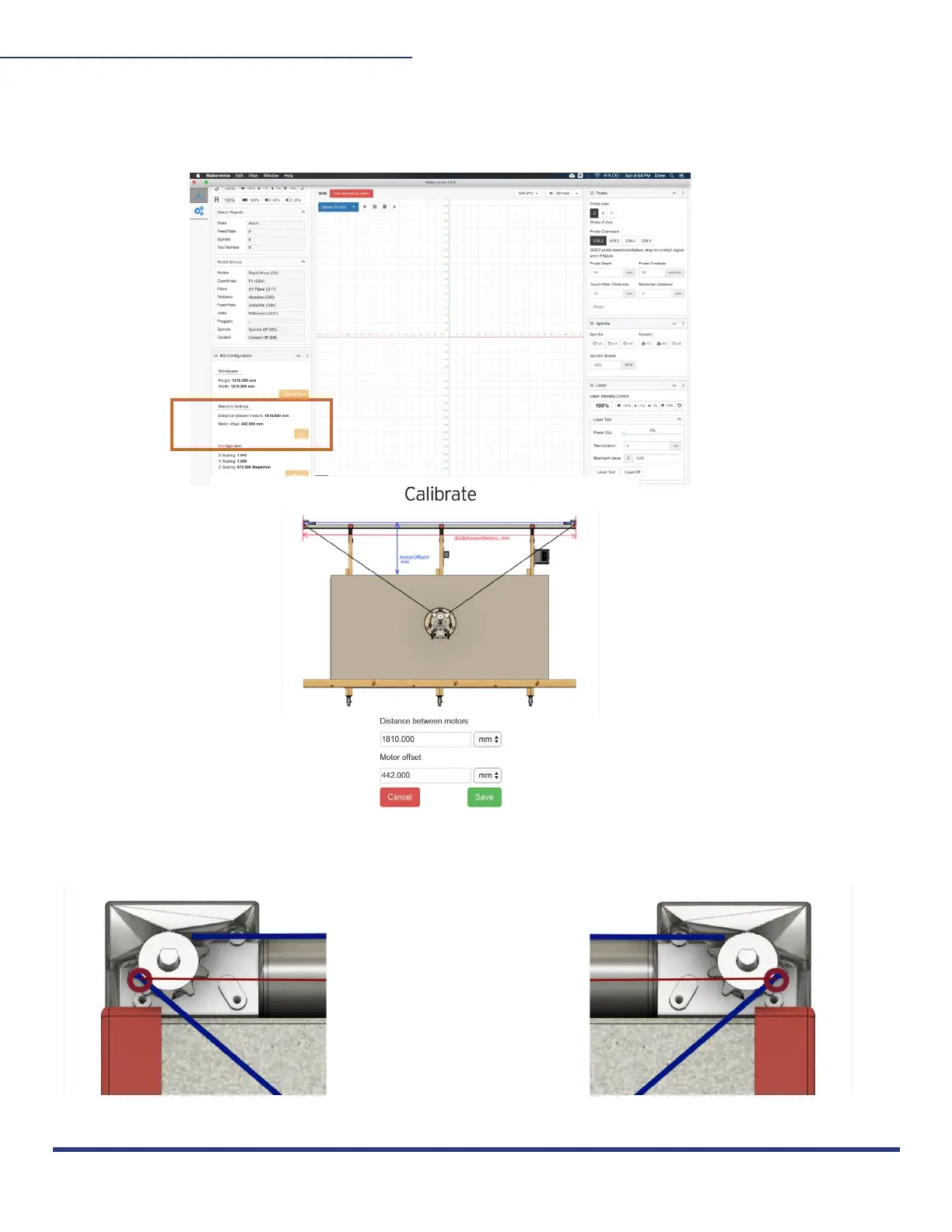

8. MACHINE SETTINGS - MEASURE DISTANCE BETWEEN MOTORS AND MOTOR OFFSET:
Before the M2 will work properly, the distance between your motors and the distance from
your Wasteboard must be entered into CNCjs.
Measure from the 8 o’clock position on your left motor and the 4 o’clock position on your
right motor. From the red, circled portions in this image.
This work is licensed under the creative commons Attribution
NonCommercial-NoDerivatives 4.0 International license. Last Updated 8.12.2020
Version 1.8
