MakerPi P2 - Page 7

4
④
①
②
④
③
③

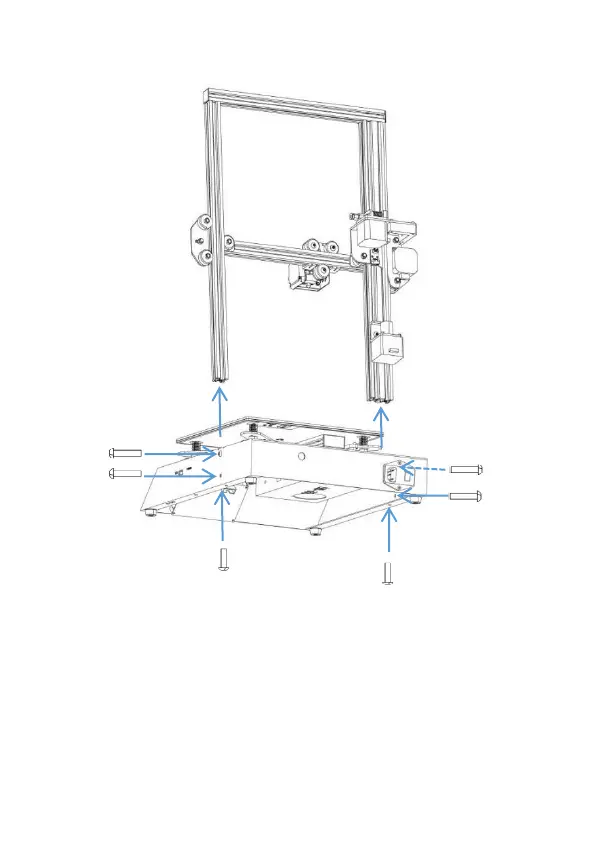

Insert the gantry frame into the corresponding hole of the base
frame, then fix the two M5*8 screws at the bottom first, and finally
tighten the four M5*25 screws on both sides of the machine. It may be
easier if you temporarily remove the magnetic bed.
