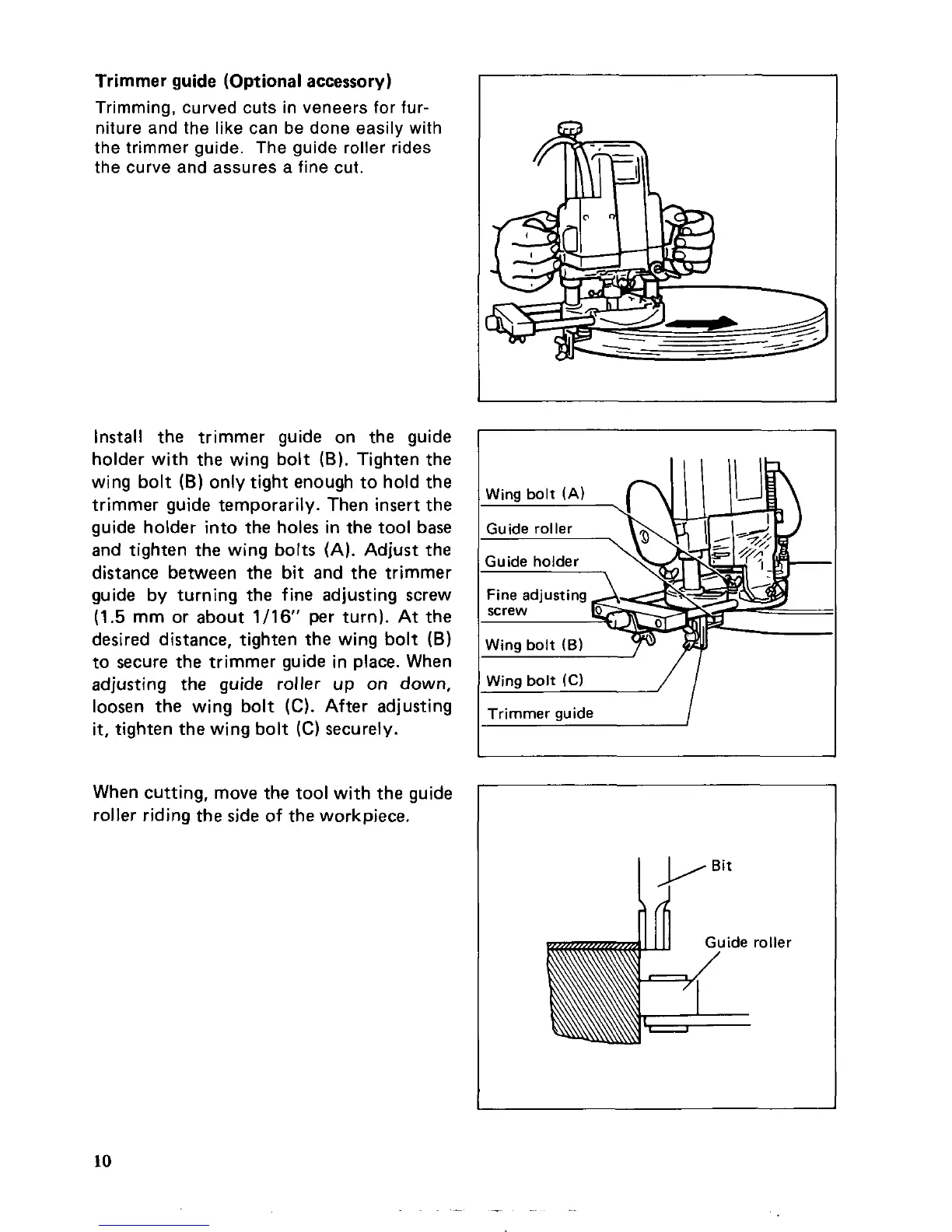

Trimmer guide (Optional accessory)
Trimming, curved cuts in veneers for fur-
niture and the like can be done easily with
the trimmer guide. The guide roller rides
the curve and assures a fine cut.
Install the trimmer guide on the guide
holder with the wing bolt
(B). Tighten the
wing bolt
(6) only tight enough to hold the
trimmer guide temporarily. Then insert the
guide holder into the holes in the tool base
and tighten the wing bolts (A). Adjust the
distance between the bit and the trimmer
guide by turning the fine adjusting screw
(1.5 mm or about 1 /16’ per turn). At the
desired distance, tighten the wing bolt
(B)
to secure the trimmer guide in place. When
adjusting
the guide roller up on down,
loosen the wing bolt
(C). After adjusting
it, tighten the wing bolt (C) securely.
When cutting, move the tool with the guide
roller riding the side of the workpiece.
’ /I
Wing bolt (C)
Trimmer auide
10

Makita 3612C Specifications

General

Type	Plunge Router
Plunge Capacity	0-60mm
Amperage	15 A
Power Type	Corded
Plunge Depth	0-60mm
Power Input	1850W
Weight	5.5 lbs
Net Weight	5.5 lbs
