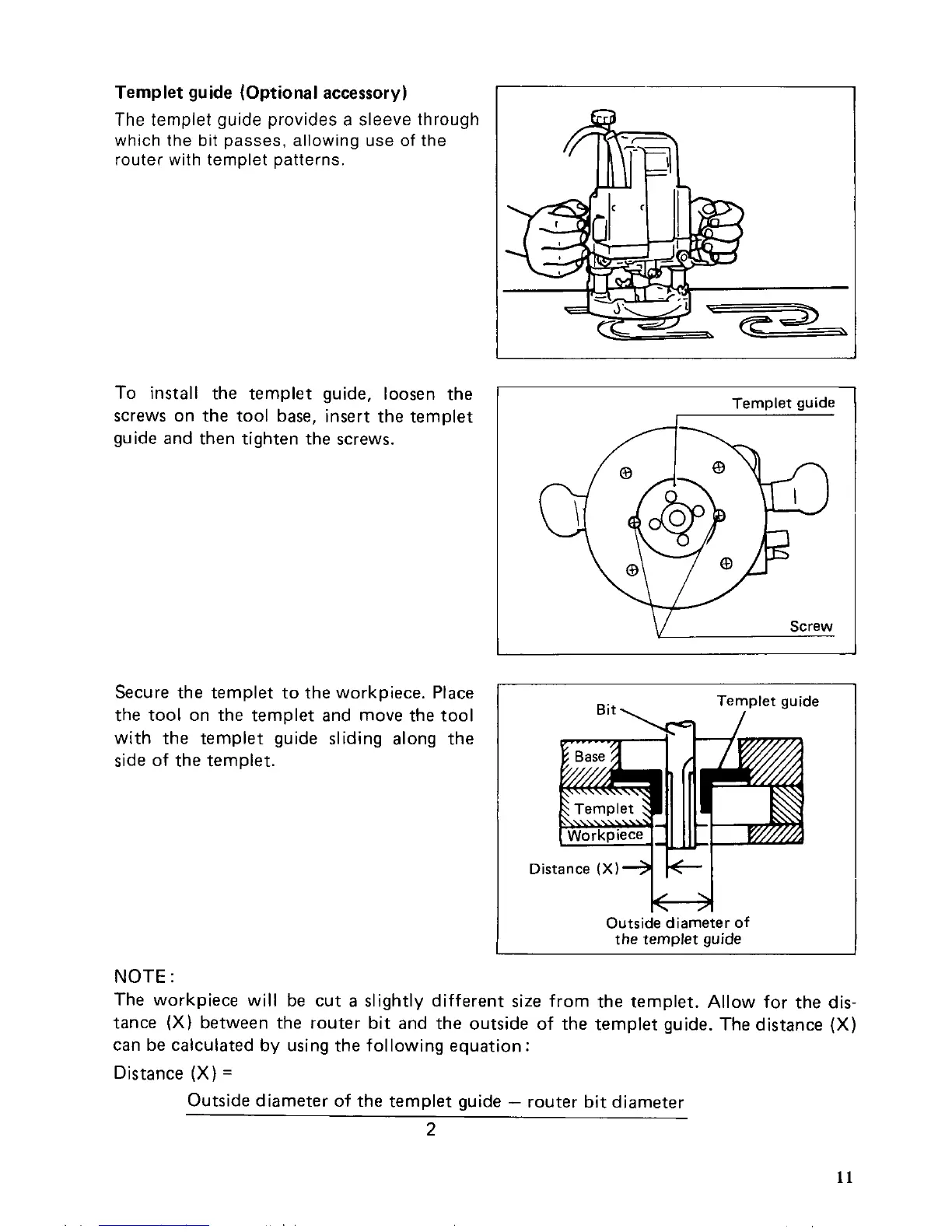

Templet guide (Optional accessory)
The templet guide provides
a
sleeve through
which the bit passes, allowing
use of
the
router
with templet patterns.
To
install the templet guide, loosen the
screws on the tool base, insert the templet
guide and then tighten the screws.
Secure the templet to the workpiece.
Place
the tool on the templet and move the tool
with the templet guide sliding along the
side of the templet.
TemDlet auide
V
Screw
Templet guide
/
Distance (X)
Outside diameter
of
the templet
guide
NOTE
:
The workpiece will be cut
a
slightly different
size
from
the templet. Allow for the dis-
tance
(X)
between the router bit and the outside
of
the templet guide. The distance
(X)
can be calculated by using the following equation:
Distance
(X)
=
Outside diameter of the templet guide
-
router bit diameter
2
11
