9
NOTE:
• Moving the tool forward too fast may cause a poor
quality of cut, or damage to the bit or motor. Moving the
tool forward too slowly may burn and mar the cut. The
proper feed rate will depend on the bit size, the kind of
workpiece and depth of cut. Before beginning the cut on
the actual workpiece, it is advisable to make a sample
cut on a piece of scrap lumber. This will show exactly
how the cut will look as well as enable you to check
dimensions.
• When using the straight guide, be sure to install it on the
right side in the feed direction. This will help to keep it
flush with the side of the workpiece.

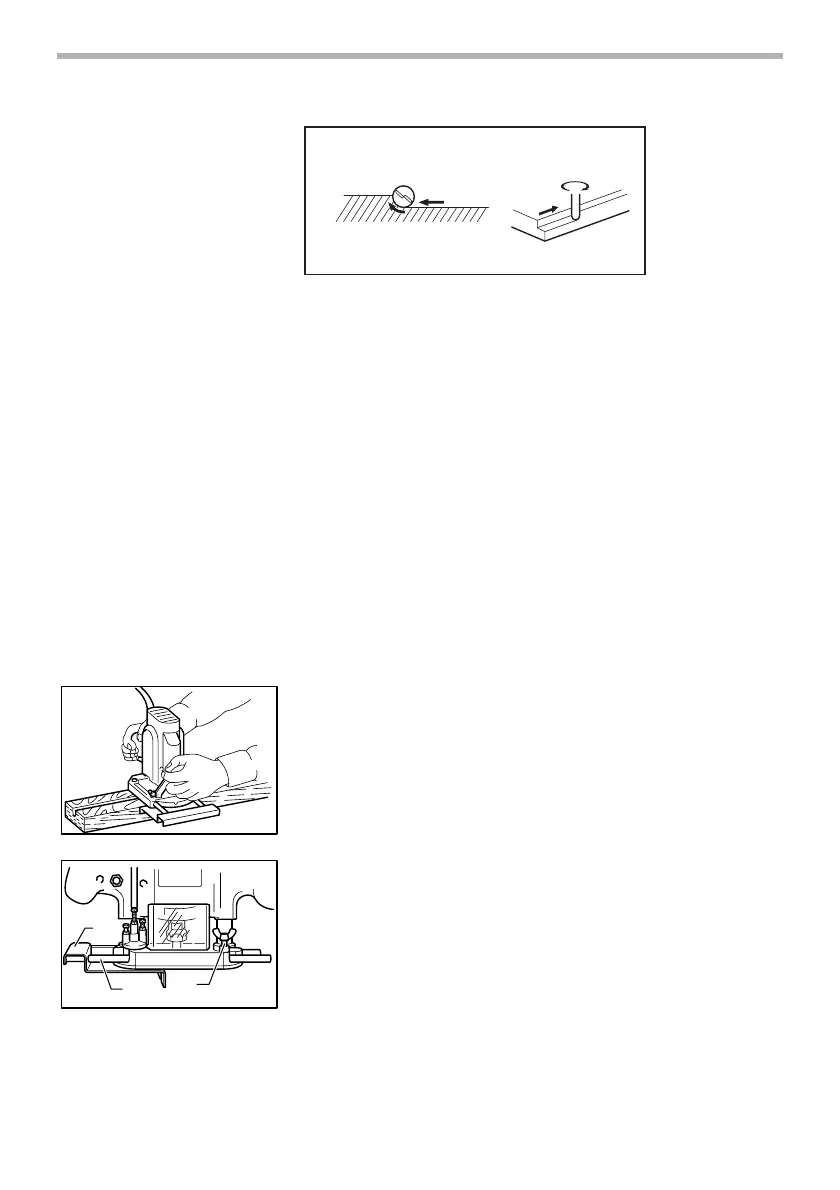

Straight guide
The straight guide is effectively used for straight cuts when
chamfering or grooving.
To install the straight guide, insert the guide bars into the
holes in the tool base. Adjust the distance between the bit
and the straight guide. At the desired distance, tighten the
wing bolts to secure the straight guide in place.
1. Workpiece 2. Bit revolving direction
3. View from the top of the tool 4. Feed direction
1
2
3
4
4
2
001984
003259
1. Straight guide
2. Guide bar
3. Wing bolt
1
2
3
003260
