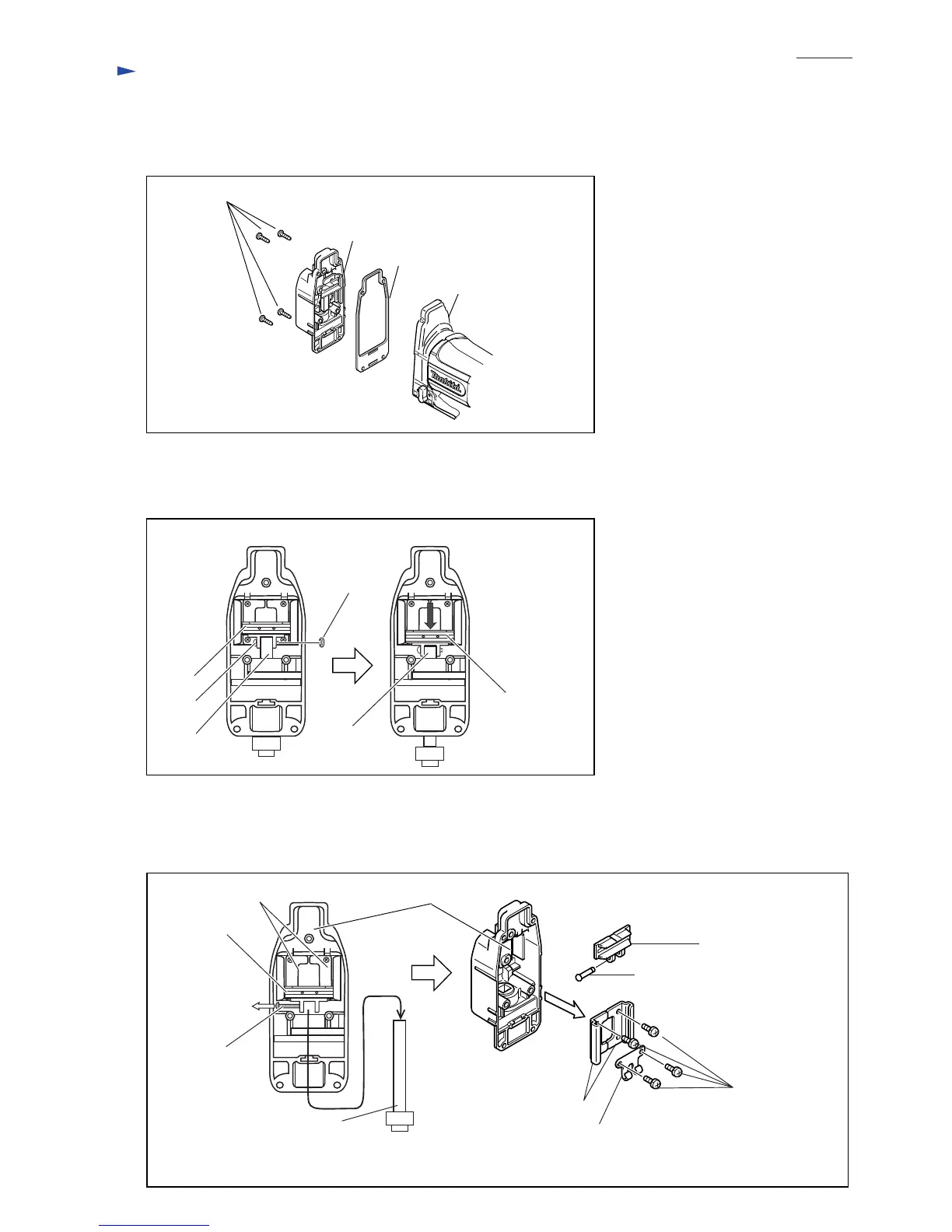

1. After separating Safety wire from Gear housing cover, remove four CT 4x16 Tapping screws.
Gear housing cover and Packing are separated from Gear housing with Motor housing as illustrated in Fig. 6.
[5] Disassembling Gear housing cover section
Inside of Gear housing cover
Fig. 6
Fig. 7
2. Remove Stop ring E-3 with slotted screwdriver.
Push Slider to the lower dead point. (Fig. 7)
Stop ring E-3
Pin 4
Rod
Slider
Slider in the lower
dead point
Rod
3. Slide Pin 4 in order to disconnect Rod with Slider. And then, pull out Rod from Gear housing cover.
Separate Linear guides from Gear housing by removing four M4x10 Pan head screws.
Pin 4, Slider and Leaf spring are disassembled from Gear housing cover. (Fig. 8)
Note: Pay attention to the direction of Leaf spring illustrated above when reassembling.
Rod
Pin 4
Slider
Pin 4
Slider
Linear guides
Linear guides
M4x10 Pan head
screws
Leaf spring
Gear housing cover
Fig. 8
CT 4x16 Tapping screws
Gear housing cover
Packing
Gear housing
To Next Page
