8

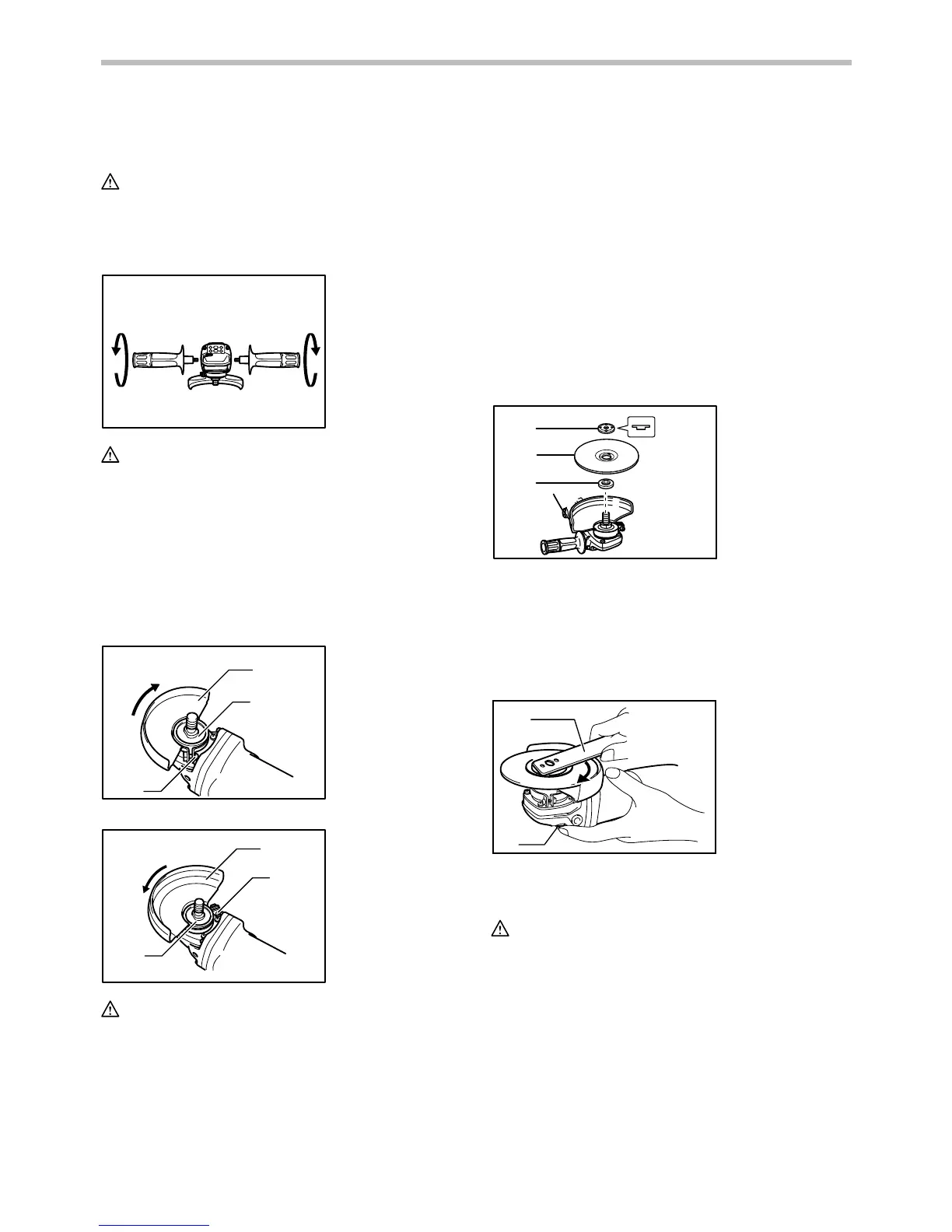

ASSEMBLY
CAUTION:
•
Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Installing side grip (handle)
005804
CAUTION:
• Always be sure that the side grip is installed
securely before operation.
Screw the side grip securely on the position of the tool
as shown in the figure.
Installing or removing wheel guard (For
depressed center wheel , multi disc / abrasive
cut-off wheel , diamond wheel)
For tool with locking screw type wheel guard
1
2
3
009057
1
2
3
009062
WARNING:
• When using a depressed center grinding
wheel/Multi-disc, flex wheel, wire wheel brush,
cut-off wheel or diamond wheel, the wheel guard
must be fitted on the tool so that the closed side of
the guard always points toward the operator.
• When using an abrasive cut-off / diamond wheel,
be sure to use only the special wheel guard
designed for use with cut-off wheels. (In European
countries, when using a diamond wheel, the
ordinary guard can be used.)
Mount the wheel guard with the protrusion on the wheel
guard band aligned with the notch on the bearing box.
Then rotate the wheel guard to such an angle that it can
protect the operator according to work. Be sure to
tighten the screw securely.
To remove wheel guard, follow the installation procedure
in reverse.
Installing or removing depressed center
grinding wheel/Multi-disc
1
3
2
001070
Mount the inner flange onto the spindle. Fit the
wheel/disc on the inner flange and screw the lock nut
onto the spindle.
To tighten the lock nut, press the shaft lock firmly so that
the spindle cannot revolve, then use the lock nut wrench
and securely tighten clockwise.
2
1
005917
To remove the wheel, follow the installation procedure in
reverse.
WARNING:
Only actuate the shaft lock when the spindle is not
moving.
1. Lock nut wrench
2. Shaft lock
1. Lock nut
2. Depressed
center grinding
wheel/Multi-disc
3. Inner flange
1. Wheel guard
2. Bearing box
3. Screw
1. Wheel guard
2. Screw
3. Bearing box
To Next Page
