Makita AC310H Technical Information

P 4/ 7
Repair

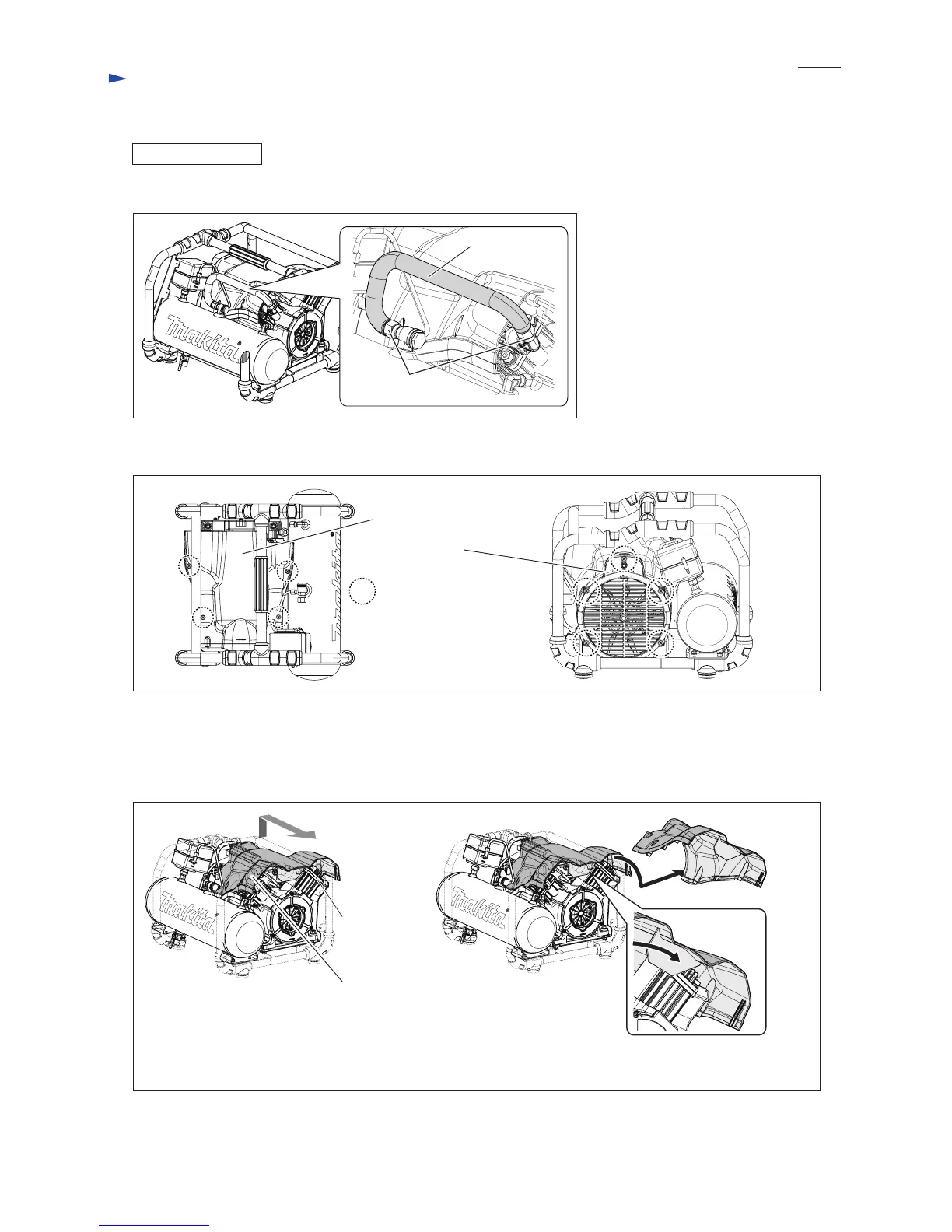

Fig. 9
Fig. 10
Fig. 11
1) After removing Side panel with Side panel cover, loosen two Ring nut 10 and remove Pipe 10. (Fig. 9)
2) Loosen nine 4x18 Tapping screws, then separate Motor cover A complete from Motor cover C. (Fig. 10)
4x18 Tapping screws (9pcs.)
3) Lift up and slide Motor cover A complete along gray arrow direction so that the side of Cylinder head L
faces the reverse of rib of Motor cover A complete. Then remove Motor housing A complete by moving along
black arrow direction. (Fig. 11)
Ring nut 10 (2pcs.)
Pipe 10
side of
Cylinder
head L
rib of
Motor cover
A complete
The side of Cylinder head L faces
the reverse of rib of Motor cover A
complete
Motor cover A complete
Motor cover C
[2] REPLACING
[2]-4. Sheet ring H, Leaf spring H, Wearing H
DISASSEMBLING
